RXGD150KW-250 Bright Heat-Treatment Project

RXGD150KW-250 Steel-Belt Bright Heat-Treatment Project

CUSTOMER-SITE PROJECT

Customer · 赣州********公司

Steel-belt bright heat treatment.
Installed at the customer site.

RXGD150KW-250 · 150 kW · Five heating zones. Explore the project through customer-site views, conveyor details and workpiece photos.

View workpieces & site views

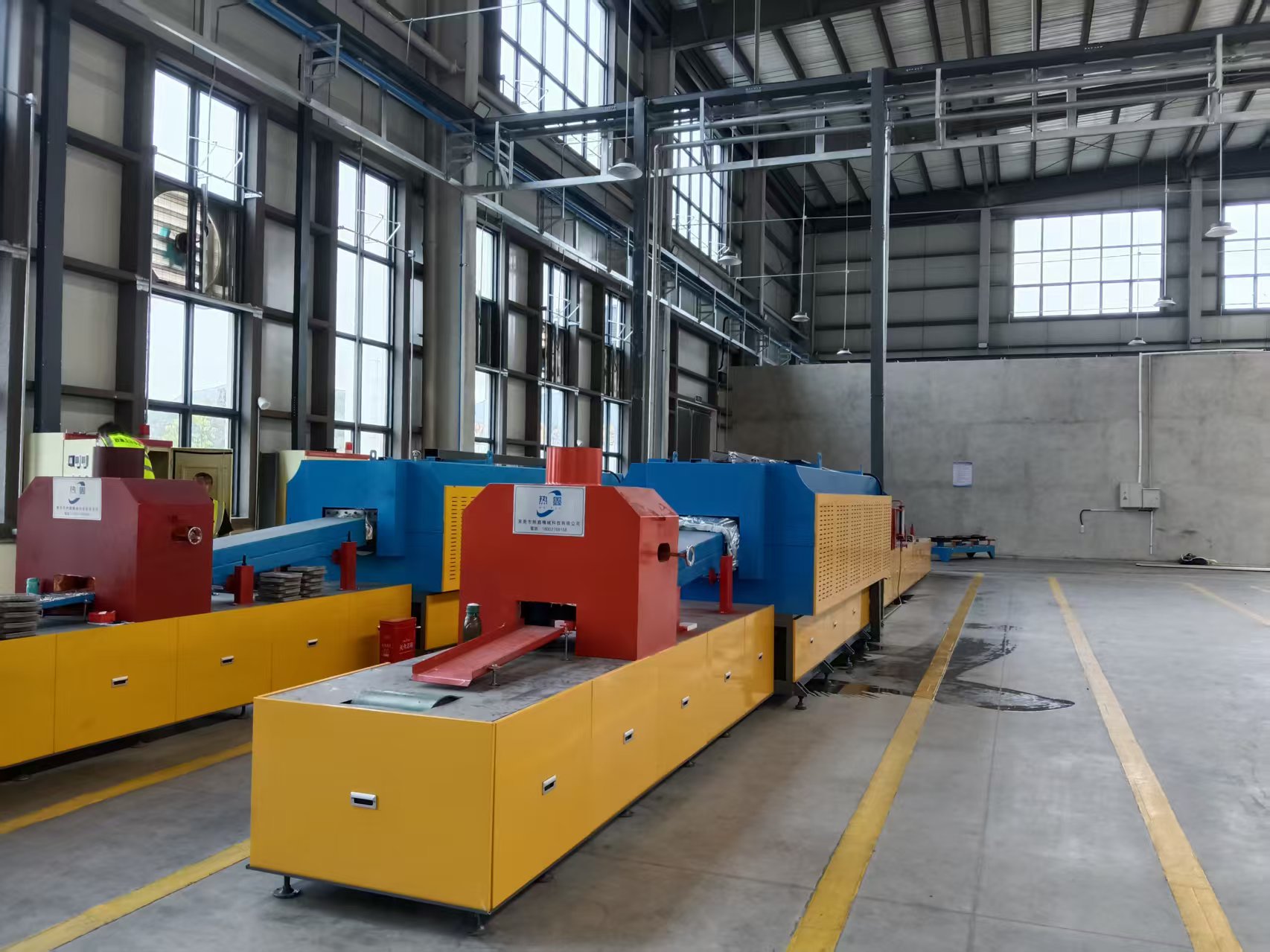

Blue and yellow continuous furnace equipment installed in a customer workshop — Equipment at the customer site

WORKPIECES / CUSTOMER SITE

Customer · 赣州********公司

Workpieces at the furnace conveyor.

Elongated metal components in trays, shown at the conveying area and furnace opening.

View site photos View project configuration →

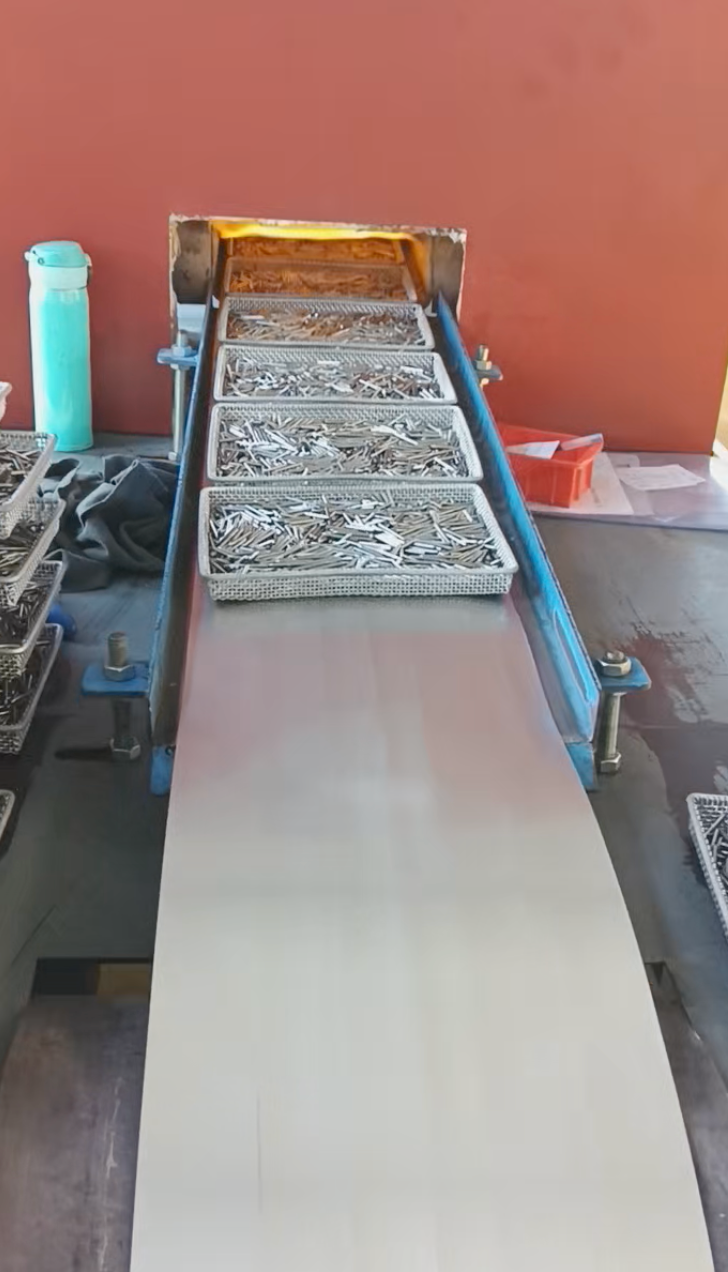

Workpiece trays on the steel conveyor beside the furnace opening — Conveyor and furnace opening

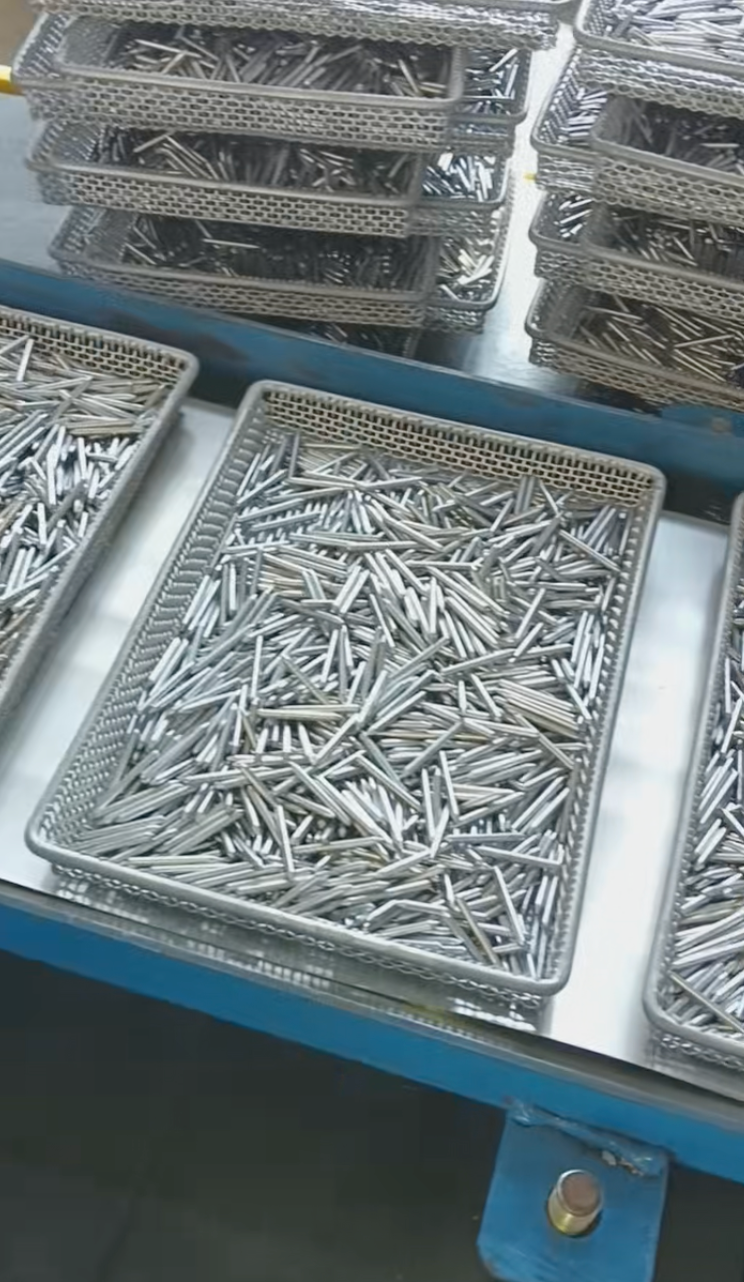

Close view of elongated metal components in mesh trays — Workpiece trays

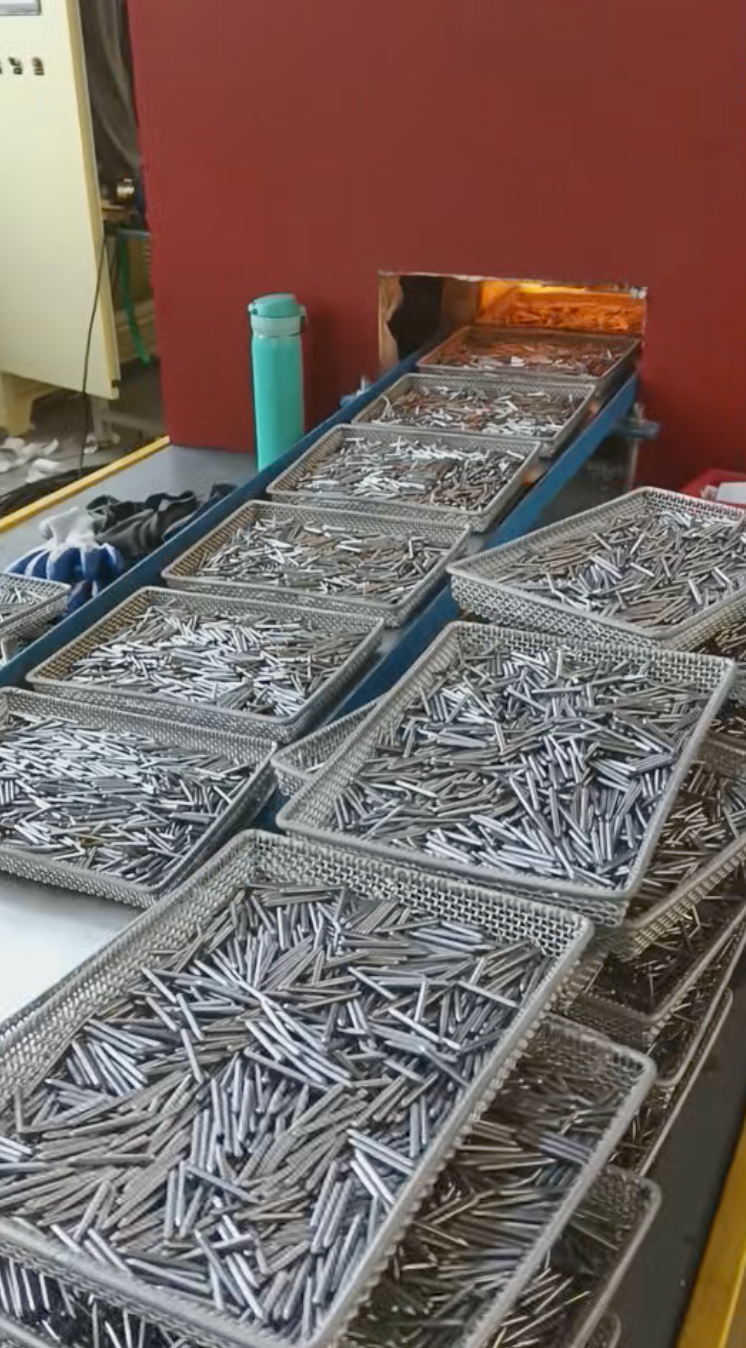

Trays of elongated metal components beside the furnace conveyor — Furnace-side view

01 / EQUIPMENT AT SITE

A closer look at the installed line.

The site views show the furnace sections, conveying areas and the equipment arrangement within the workshop.

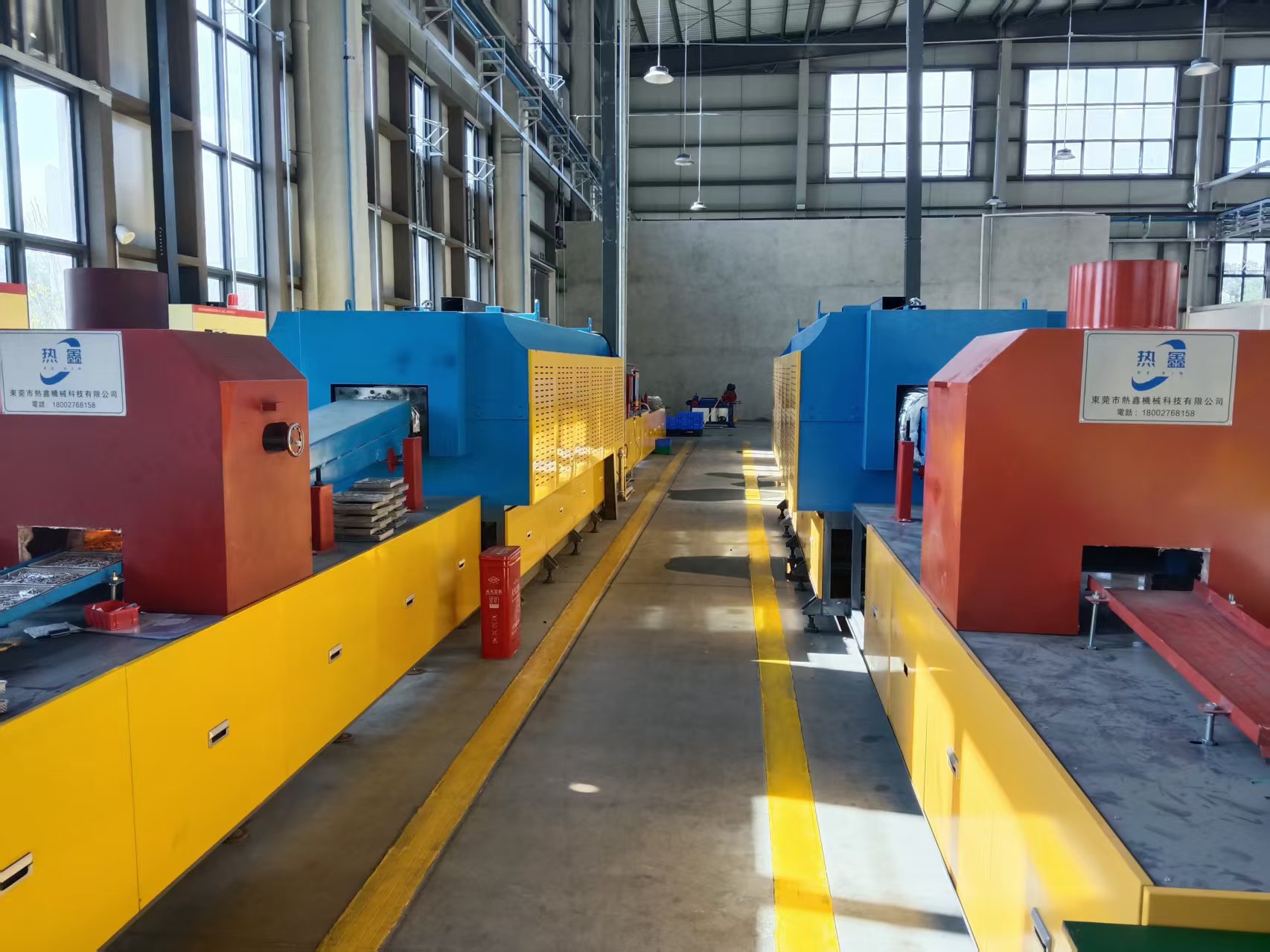

Side view of a continuous furnace line at the customer site — Side view of the furnace line

Furnace equipment and access aisle in the customer workshop — Equipment arrangement and site access

PROJECT CONFIGURATION / RXGD150KW-250

The equipment specification behind the installation.

Steel-belt bright heat-treatment furnace with zoned electric heating and a water-cooled section. These values describe the specified configuration for this project.

Furnace and conveying
Model	RXGD150KW-250
Rated power	150 kW
Power supply	380 V · 50 Hz
Heating zones	5
Rated operating temperature	1,200°C
Steel belt width / thickness	250 mm / 0.6 mm
Conveyor speed	30–300 mm/min Variable-frequency control
Overall length	Approx. 18.3 m

Thermal structure and control
Main heating furnace body	4,500 mm long
Cooling section	7,000 mm · Three water-jacket sections
Heating-section muffle	SUS310S · 8 mm thick
Furnace tube section	280 mm wide · 80 mm side height 30 mm arch rise
Belt working height	Approx. 750 mm above floor
Specified furnace uniformity	±5°C
Specified instrument control accuracy	±1°C
Temperature sensing / control	Type S thermocouple Five digital temperature controllers

Source: project technical specification. Uniformity and instrument accuracy are specified values; no measured acceptance results are presented here. Process settings, throughput and supply scope are determined for each project.

02 / SITE FOOTAGE

See the conveying area in motion.

A short project video shows the steel-belt conveying area used in this installation.

Conveying area detail · 5 seconds

Equipment arrangement within the customer workshop — Equipment arrangement and site access

03 / SITE ARRANGEMENT

Designed around the customer workshop.

The site views show how the furnace line, conveying area and access aisle fit within the customer workshop.

Use the project configuration as a starting point for discussing site access, utilities and installation planning.

PLAN YOUR FURNACE PROJECT

Start with your workpiece and production needs.

Material & componentsMaterial grade, shape, dimensions and weight

Process & outputTreatment target, inspection criteria and target throughput

Site & handlingAvailable space, utilities and loading arrangement

Send your project requirements
