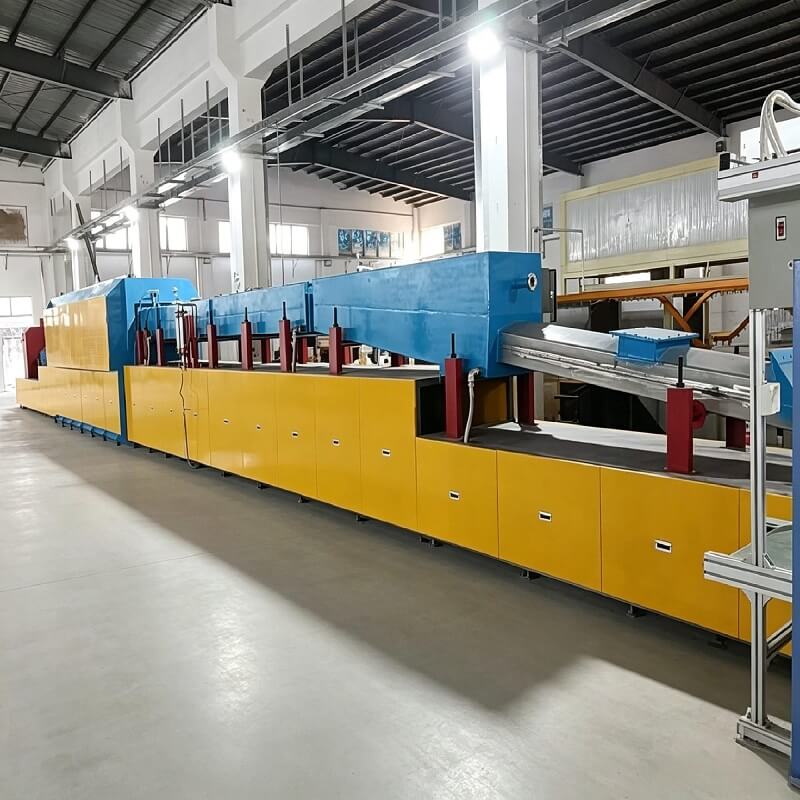

Continuous Belt Bright Annealing Furnace for Stainless Steel Parts & H₂ Atmosphere Brazing

This continuous belt-type bright furnace is a fully automatic continuous heat treatment equipment operating under controlled protective atmosphere. It is professionally developed for high-volume and consistent thermal processing of various metal tubular products and precision hardware parts.

The furnace is widely applicable for bright annealing and solution treatment of stainless steel tubes, stainless steel bellows, copper tubes, steel tubes and all kinds of pipe fittings. It also suits mass production heat treatment for stainless steel deep-drawn parts, tableware, cutlery, tools, miniature shafts, stainless steel screws and rivets.

In addition to stainless steel processing, this multi-functional furnace supports continuous brazing production for silver, copper, aluminum and ordinary steel components. All workpieces processed by this equipment achieve a flawless mirror-bright metallic surface with no oxidation, no scale formation and no decarburization.

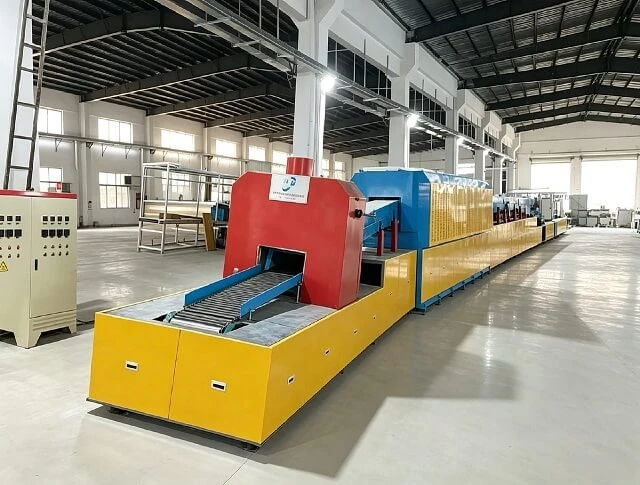

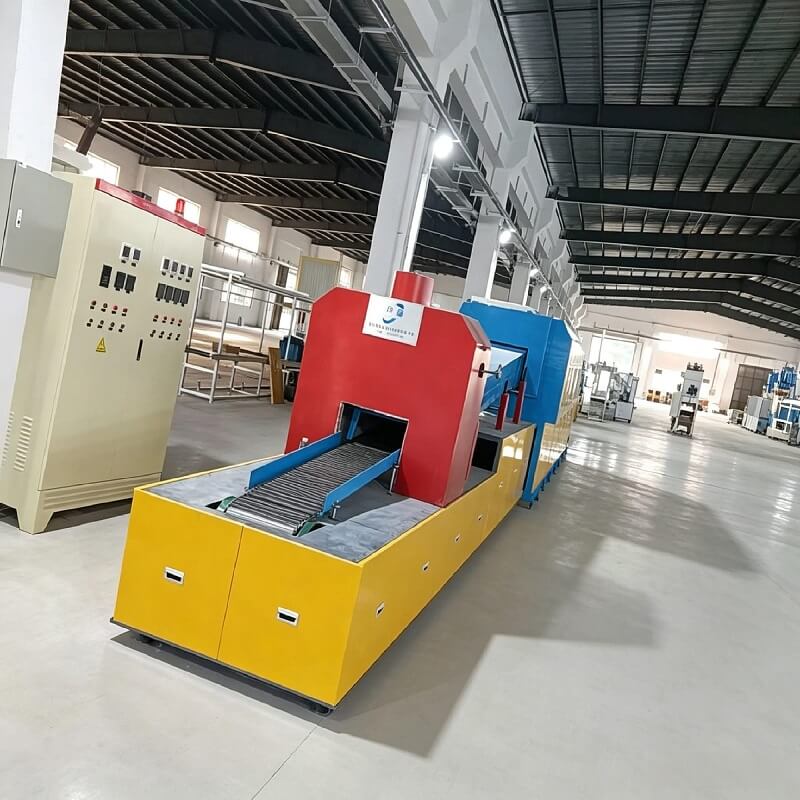

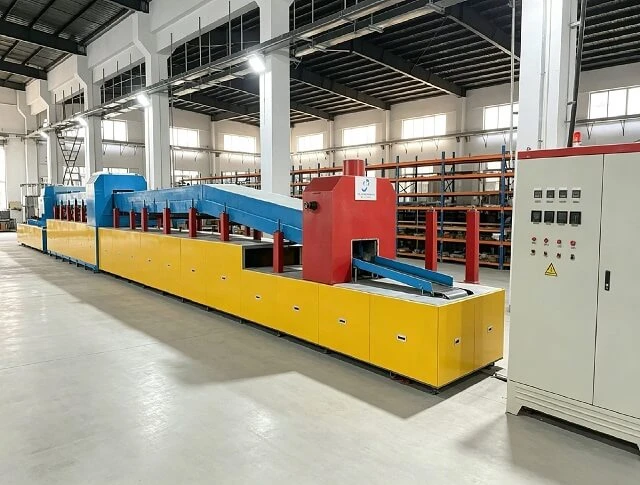

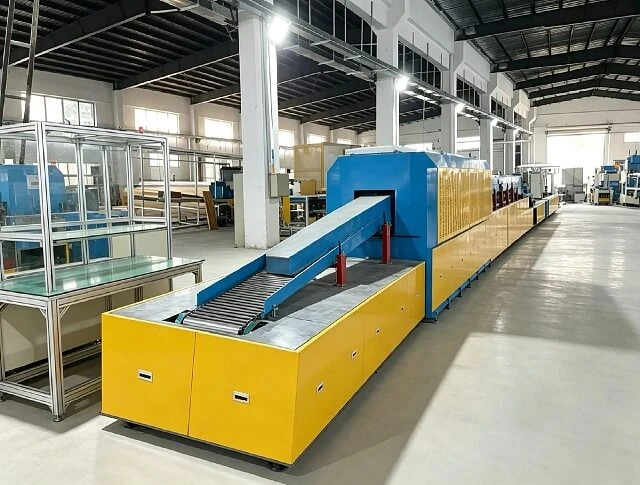

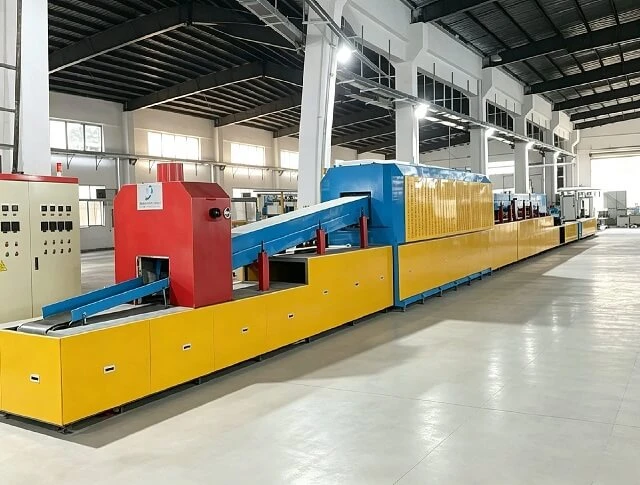

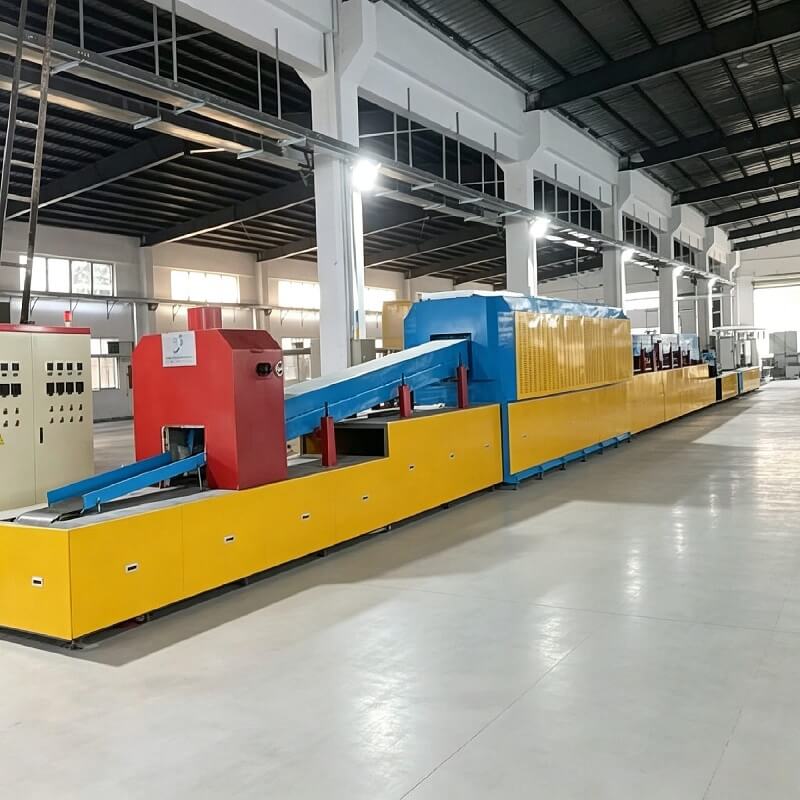

The complete production line consists of a heating furnace body, water cooling system, stainless steel muffle retort, front and rear conveying platforms, electric control system and ammonia decomposition atmosphere generator.

Sealed high-temperature stainless steel muffle retorts are installed inside both the heating zone and cooling zone. A durable stainless steel conveyor belt runs through the entire muffle chamber to carry workpieces steadily during continuous operation.

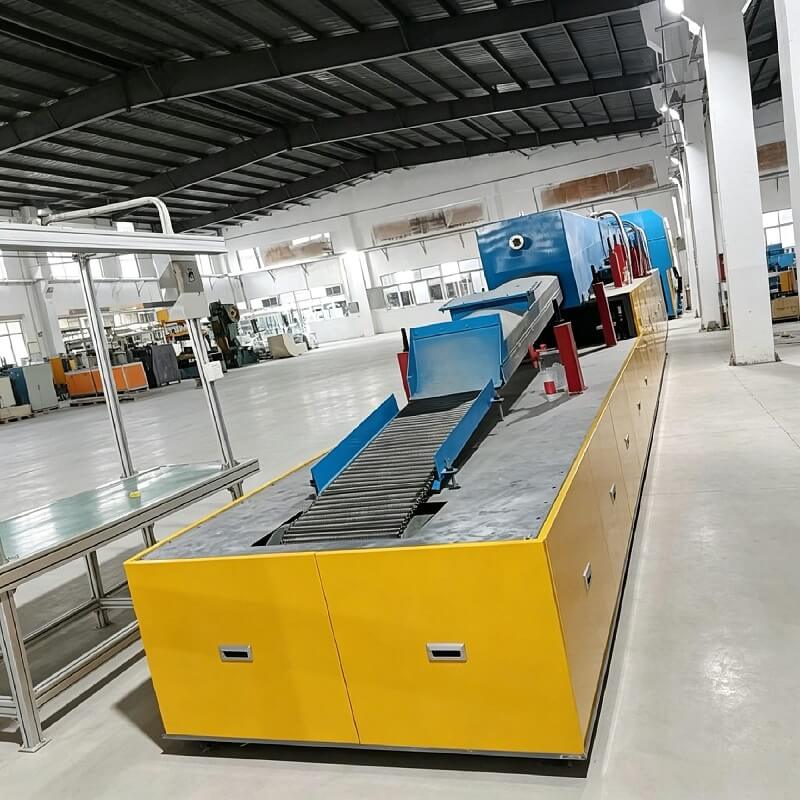

The front feeding table and rear discharging table are equipped with driving rollers, driven rollers and S-type roller groups. The speed-reducing motor drives the roller set through chain transmission, enabling uniform and continuous belt movement.

Workpieces are transported smoothly through heating and cooling sections without collision or stacking. The fully sealed muffle structure isolates external air completely. With stable protective atmosphere filled inside the chamber, workpieces are prevented from oxidation and decarburization, achieving precise and uniform bright annealing and solution treatment results with minimal deformation.

1.Multi-Purpose Heat Treatment Capacity – Integrates bright annealing, solution treatment and continuous metal brazing in one equipment, compatible with multiple metal materials and processing requirements.

2.Oxidation-Free Bright Processing – Fully sealed muffle furnace with stable protective atmosphere ensures zero oxidation, zero scale and zero decarburization for premium bright surface finish.

3.Stable Belt Conveying System – Continuous and uniform feeding avoids workpiece collision, scratch and deformation, guaranteeing consistent product quality in mass production.

4.Integrated Water Cooling Structure – Professional water jacket cooling system realizes controlled rapid cooling under protective atmosphere, maintaining bright surface without secondary oxidation.

5.Independent Atmosphere Supply System – Equipped with ammonia decomposition unit to provide stable and pure hydrogen protective atmosphere for long-term continuous production.

6.Intelligent PLC Control – Multi-zone independent temperature control, adjustable conveying speed and automatic operation ensure high processing accuracy and easy operation.

7.Wide Compatibility – Covers tubular parts, precision hardware and various metal components, meeting diverse industrial heat treatment demands.

Suitable Workpieces

1. Tube & Pipe Products: Stainless steel tubes, stainless steel bellows, copper tubes, steel tubes and various pipe fittings

2. Stainless Steel Hardware: Deep-drawn parts, kitchen tableware, cutting tools, miniature shafts, screws, rivets and fasteners

3. Brazing Components: Silver, copper, aluminum and carbon steel structural parts for continuous brazing processing

Applicable Industries

Metal pipe processing, kitchenware manufacturing, hardware fastener industry, precision machinery, automotive parts, metal brazing and heat treatment factories.

1. High-temperature heating furnace body

2. Water circulation cooling device

3. High-temperature resistant stainless steel muffle retort

4. Front feeding conveying table

5. Rear discharging conveying table

6. Driving system: reducer, chain, roller sets and S-type rollers

7. Ammonia decomposition atmosphere generator

8. PLC intelligent electric control system

1. Customized furnace solution and layout design based on workpiece size, material and production capacity

2. Complete equipment manufacturing, assembly and factory pre-testing

3. Overseas on-site installation guidance, commissioning and operator technical training

4. Long-term spare parts supply and professional after-sales technical support

5. Custom modification for special production and process requirements

Please inform us of your workpiece type, dimension, required output and heat treatment process. We will provide you with professional technical proposals, equipment layout drawings and customized quotation solutions.
