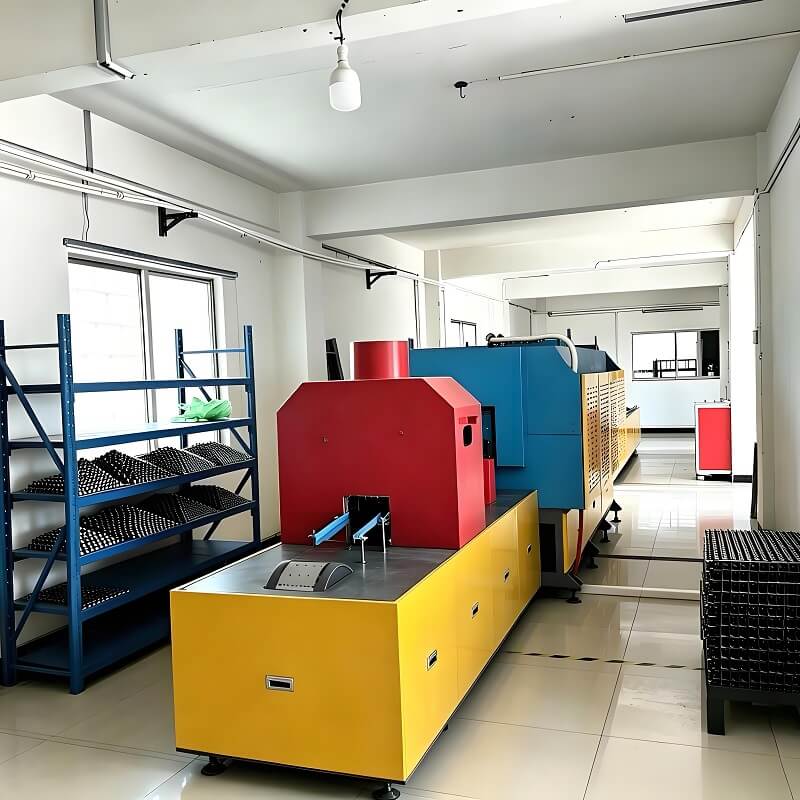

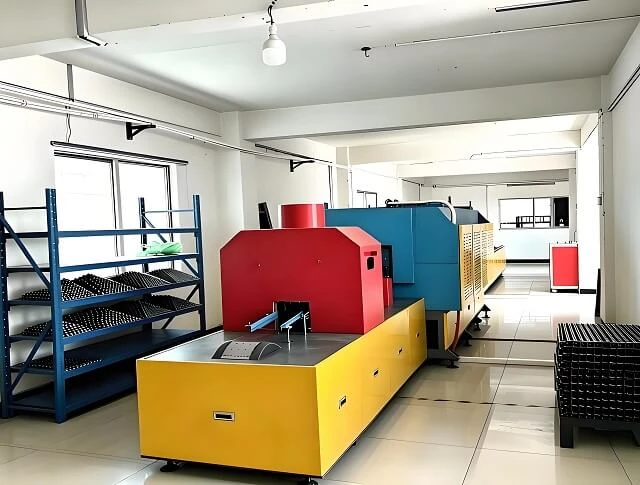

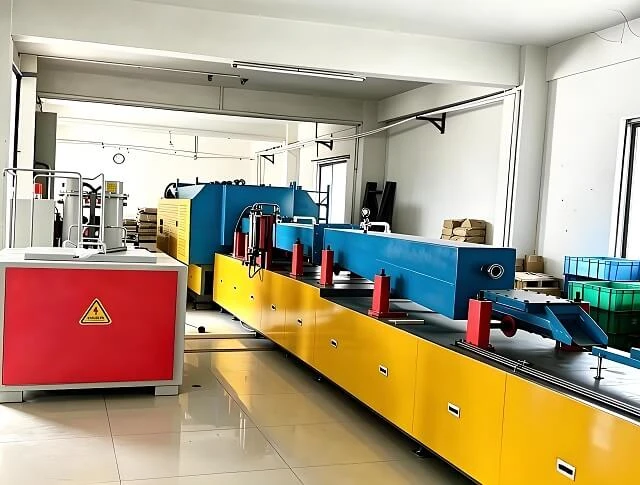

Stainless Steel Continuous Bright Annealing Furnace Manufacturer

Stainless Steel Continuous Bright Annealing Furnace is a specialized atmosphere-protected continuous heat treatment equipment tailor-made for all series of stainless steel (201, 304, 316L, 430, stainless spring alloy, stainless magnetic alloy).

Different from general multi-purpose annealing furnaces, this model optimizes sealed muffle structure, temperature curve and atmosphere supply system to match stainless steel’s unique chromium anti-rust layer property, solving the common industry pain point of yellow/blue discoloration after stainless steel heat treatment.

Equipped with a 310S high-temperature stainless steel mesh belt conveying system, it completes full-process degreasing, heating, constant-temperature recrystallization and sealed slow cooling in one continuous flow. Under oxygen-free nitrogen or ammonia decomposition protective atmosphere, stainless steel workpieces exit the furnace with a flawless mirror silvery surface, free of oxide scale, discoloration and decarburization. It completely cancels post-process pickling, polishing and wire drawing procedures, drastically reducing your stainless steel secondary processing expense.

This production line is the standard core equipment for stainless steel fastener factories, stainless tube workshops, electronic stainless terminal manufacturers and stainless spring processing plants, capable of stable 24-hour uninterrupted mass production.

1.Custom heating curve matched stainless recrystallization temperature, avoid overheating grain coarsening and inconsistent hardness;

2.Reinforced airtight muffle cavity blocks chromium element oxidation, eliminate yellow/blue tint defects on stainless surface;

3.Polished smooth thickened mesh belt prevents scratches on ultra-thin stainless shrapnel & thin foil;

4.Optimized low-flow atmosphere formula saves nitrogen while fully protecting stainless anti-rust chromium film;

5.Internal corrosion-resistant structural parts resist oil vapor residue generated by stainless stamping oil degreasing.

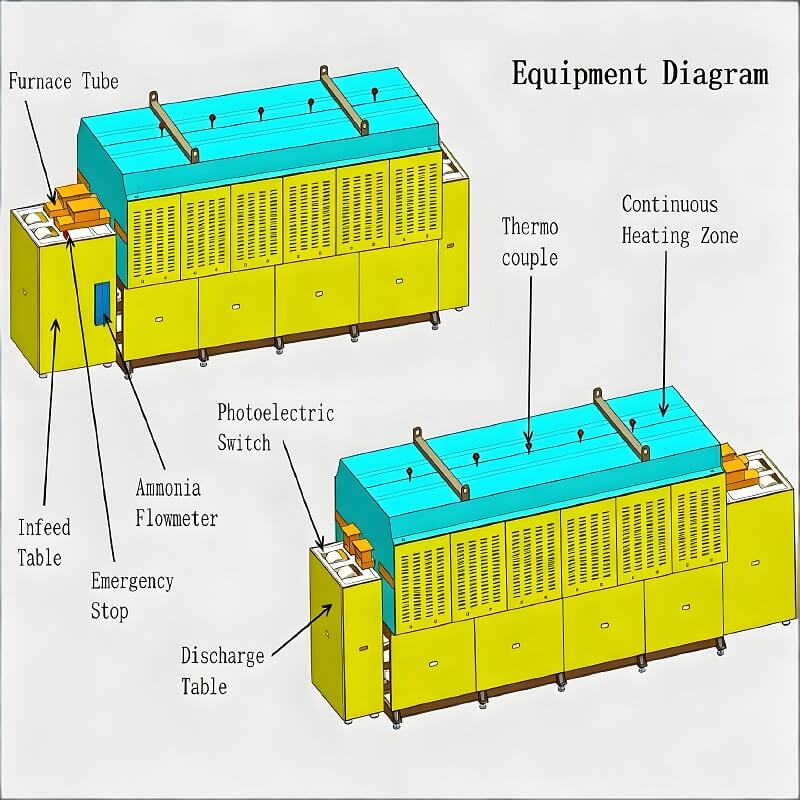

The entire furnace runs under slight positive inert nitrogen pressure to isolate external air thoroughly, divided into four independent functional sections:

1. Degreasing & Preheating Zone

Low-temperature preheating removes stamping oil, cutting fluid and surface dust on stainless steel parts. Prevent high-temperature oil carbonization from forming black spots on stainless surface. Built-in waste gas incinerator fully processes oil fume to meet global environmental emission standards.

2. Sealed Muffle Indirect Heating Zone

Heat radiates evenly through the outer wall of the high-temperature alloy muffle chamber. Heating resistance wires are fully separated from stainless steel workpieces and protective gas, eliminating contamination of falling oxide dust. Multi-zone independent PID temperature control keeps internal temperature fluctuation within ±3℃ for uniform stainless grain refinement.

3. Constant Temperature Annealing Soaking Zone

Stainless steel is held at fixed target temperature for customized soaking time to fully release internal stamping, bending and forming stress, complete metal recrystallization, improve ductility and softness without damaging the surface chromium anti-rust layer.

4. Atmosphere Sealed Slow Cooling Discharge Zone

Workpieces cool down gradually inside the nitrogen-filled muffle cavity, air contact is blocked until temperature drops below the stainless oxidation threshold. Final finished parts maintain consistent mirror metallic brightness without any discoloration.

1.Mirror Bright Stainless Surface Without Pickling & PolishingFully sealed nitrogen atmosphere protects stainless chromium anti-rust layer, parts come out silvery bright, eliminate pickling, buffing and secondary surface processing to cut labor & chemical cost.

2.No Yellow / Blue Discoloration on Stainless Steel SurfaceOptimized airtight muffle & stable micro-positive nitrogen prevent chromium oxidation, solve common yellow/blue tint defect of stainless steel after annealing.

3.Custom Temperature Curve For All Stainless GradesPre-set dedicated heating curves for 201, 304, 316, 430 stainless steel, stainless spring alloy, thin stainless sheets, avoid grain coarsening and hardness inconsistency.

4.Ultra Low Nitrogen Operating CostCompact sealed muffle cavity reduces protective gas loss, save up to 40% nitrogen consumption compared with open non-muffle continuous furnaces.

5.Zero Scratch Conveying For Thin & Precision Stainless PartsSmooth thickened stainless steel mesh belt, no sharp edges, perfectly process ultra-thin stainless shrapnel, tiny stainless screws and thin-walled stainless tubes without surface scratches.

6.24-Hour Unattended Continuous Mass ProductionIntelligent PLC system stores multiple production formulas; auto adjust belt speed, temperature and gas flow, minimal manual intervention for large-volume stainless steel workshop.

7.Long Service Life & Low Maintenance CostHeating elements are separated from corrosive oil vapor inside the furnace, slow down oxidation aging; muffle alloy material specially resistant to stainless atmosphere corrosion, 3-5 years normal service life.

8.Full Customization SupportCustom furnace width, total length, max working temperature, mesh belt load capacity, automatic loading/unloading mechanism to match your daily stainless steel output.

Suitable Stainless Steel Materials

201, 202, 301, 304, 316L, 410, 420, 430 ferritic / austenitic stainless steel, stainless spring alloy, stainless soft magnetic alloy

Main Processed Workpieces

1.Stainless fasteners: stainless screws, bolts, nuts, rivets, self-tapping screws

2.Stainless elastic parts: stainless shrapnel, springs, watch springs, battery contact clips

3.Stainless pipe & tube: thin-walled stainless capillary, sanitary stainless tubes, heat exchange tubes

4.Stainless stamping components: stainless kitchen hardware, auto stainless fittings, electronic stainless terminals

5.Stainless wire & strip: stainless steel wire, ultra-thin stainless steel strip, stainless foil

6.Stainless powder metallurgy parts: stainless sintered structural components

Supported Heat Treatment Processes

Stress relief annealing, recrystallization softening annealing, bright tempering, ductility improvement annealing for stainless steel

Q1: Why choose a dedicated stainless steel continuous bright furnace instead of a universal bright annealing furnace?

A1: Universal furnaces do not match stainless steel’s chromium anti-rust layer characteristics, easily causing yellow/blue oxidation discoloration on stainless surface. Our stainless steel exclusive model optimizes muffle air tightness, atmosphere ratio and heating curve to fully protect the chromium film of stainless steel, guaranteeing consistent mirror bright finish without discoloration for all stainless grades.

Q2: What atmosphere is best for 304 stainless steel annealing?

A1: Pure nitrogen is the most cost-effective option for common 304 stainless steel mass production. For high-brightness ultra-precision stainless parts, we recommend nitrogen-hydrogen mixed atmosphere or ammonia decomposition gas to achieve higher metallic luster. We will provide matched atmosphere scheme based on your workpiece material and brightness requirement.

Q3: Will thin stainless shrapnel get scratched by the mesh belt?

A3: No. We adopt smooth thickened 310S stainless steel mesh belt with polished edge without sharp burrs. We can also add soft high-temperature anti-scratch auxiliary mesh layer on the belt surface specially for ultra-thin stainless shrapnel and foil to eliminate scratch risk completely.

Q4: Can this furnace process long stainless tubes and tiny stainless screws at the same time?

A4: Yes. We can customize mesh belt structure, partition fixture and speed range according to your mixed workpiece types. Separate processing recipes can be stored in PLC to switch between long tube and small fastener production freely.

Q5: What’s the daily output capacity of this stainless steel continuous bright furnace?

A5: Daily output depends on furnace width, mesh belt speed and workpiece thickness. Our standard models cover daily capacity from 500kg to 5 tons. We design the exact furnace size matching your target daily production volume for free.

Q6: Does this furnace meet CE standard for export to Europe & Southeast Asia?

A6: Yes. The whole equipment passes CE safety certification, equipped with explosion-proof atmosphere valve, over-temperature automatic power-off protection, waste gas environmental treatment device, fully comply with EU industrial machinery safety and emission standards.

Q7: How long is the warranty period of the stainless steel bright furnace?

A7: We provide 12-month whole machine warranty, lifetime technical after-sales consultation. Core spare parts like muffle chamber, heating elements and PID temperature controllers supply at factory cost price after warranty expires.

Dongguan Rexin Machinery Technology Co., Ltd is a professional industrial heat treatment furnace manufacturer with over 18 years experience in stainless steel bright annealing equipment. We focus on R&D and customized production of stainless steel continuous bright furnaces, mesh belt muffle furnaces, silicon steel annealing furnaces and powder metallurgy sintering furnaces for global metal processing manufacturers.

All our furnaces are fully tested before delivery, with complete export certification documents. We provide one-stop service including scheme design, production, installation guidance, overseas technical training and after-sales maintenance support. If you have stainless steel heat treatment demand, send your workpiece material, size and daily output requirement, our engineer team will draw customized furnace layout and quotation for you within 24 hours.
