Stainless Steel Brazing Furnace

Stainless steel brazing furnace is professional heat treatment equipment for precision metal joining of stainless steel, copper and carbon steel, divided into continuous mesh belt atmosphere brazing furnace and vacuum brazing furnace.

Workpieces are heated under sealed high-purity nitrogen-hydrogen protective atmosphere or high vacuum environment. Silver/copper brazing filler melts and fills assembly gaps via capillary action, forming dense, high-strength metallurgical joints after cooling. Oxygen is fully isolated during the whole process, delivering oxide-free mirror-bright surfaces without post pickling or polishing. Our continuous model supports 24-hour uninterrupted automatic mass production with dual functions: brazing dissimilar metals with filler metal; bright solution annealing for stainless steel without brazing filler, perfectly matching mass production lines of new energy, automotive and refrigeration industries.

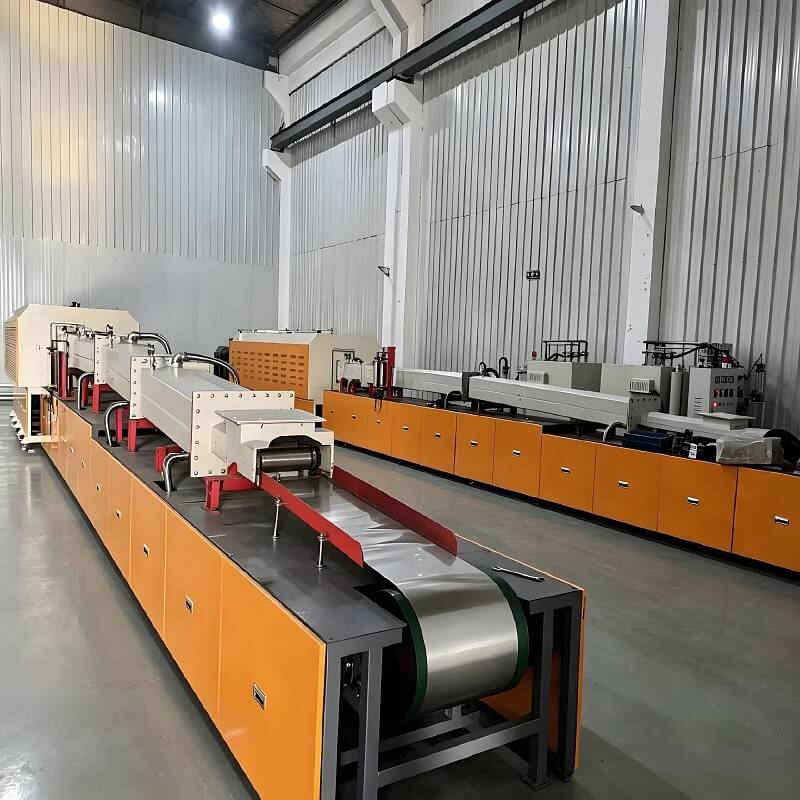

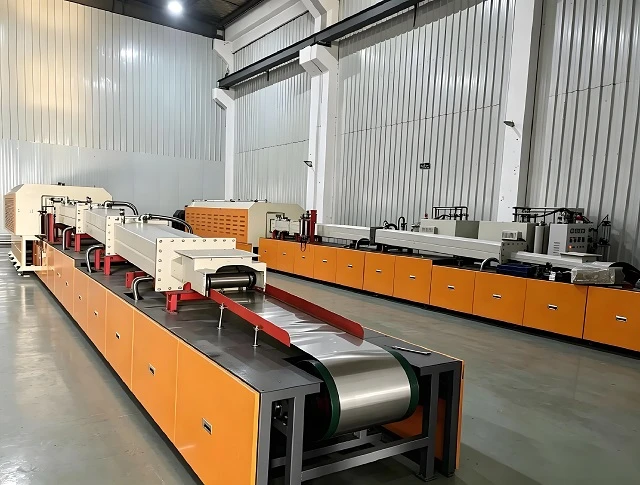

1.Degreasing & Preheating Zone: Mesh belt conveys workpieces for low-temperature oil removal, preventing thermal deformation under high heat

2.High-Temp Brazing Zone: Multi-zone independent PID temperature control with ±2℃ uniformity, heating filler metal to melting point for full gap filling

3.Sealed Slow Cooling Zone: Continuous shielding gas prevents re-oxidation, workpieces cool evenly with mirror bright finish

4.Automatic Discharge: Fully continuous production line connects directly to downstream assembly procedures

Our brazing furnace is innovatively developed by our R&D engineers on the basis of years of design and manufacturing experience. We draw on abundant proven practical experience and the exclusive advanced process technologies of domestic peers to complete independent upgrading and optimization.

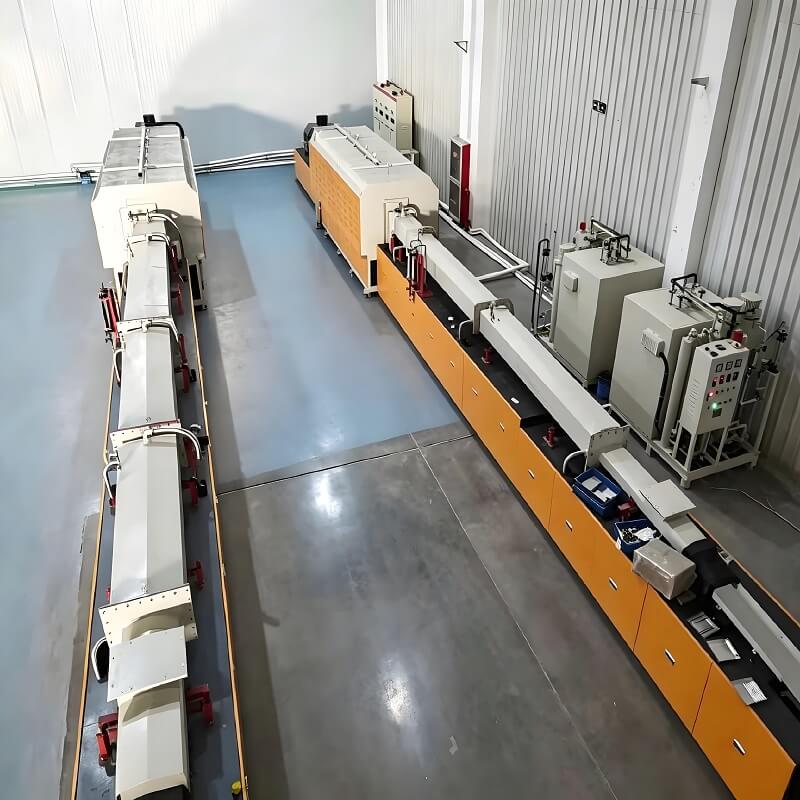

This brazing furnace is mainly composed of preheating zone, heating & soaking zone, cooling zone, mesh belt, mesh belt transmission mechanism, gas circuit system, water cooling system and control system. High-precision microprocessor temperature controllers are used for furnace temperature regulation, with a temperature control accuracy up to ±1℃. The conveying speed of the mesh belt is regulated through variable frequency speed control. A complete set of matching alarm devices is installed to ensure safer and more reliable operation of the brazing furnace.

1.Long Service Life

The heating muffle is fabricated from Swedish imported SUS310S heat-resistant stainless steel plate. The split-type hinged structure greatly extends its service life.

2.Low Energy Consumption

The furnace lining adopts high-performance thermal insulation refractory materials to ensure even internal temperature and low heat loss. The furnace adopts a bridge structure composed of preheating zone, heating zone and cooling zone.

3.High Operational Reliability

The unit is equipped with complete alarm systems, anti-backfire and explosion-proof devices mounted on the furnace, ensuring safer and more stable operation.

4.High Product Pass Rate

The one-time qualified rate of finished workpieces reaches 99.5%.

5.Precision Brazing Performance

Capable of realizing reliable joining for high-precision and complex-shaped components.

6.Environmentally Friendly & Less Pollution

No secondary cleaning or degreasing procedures are required after brazing. Workpieces can be directly subjected to subsequent surface treatments such as galvanizing, chromium plating and painting.

1.Oxidation-Free Bright Finish: Shielding gas isolates air; no pickling or polishing required, cutting labor & environmental cost greatly

2.Low Deformation Precision Machining: Uniform overall heating reduces thermal stress, ideal for thin-wall complex precision components

3.Dissimilar Metal Welding: Reliable bonding between stainless steel & red copper, stainless steel & carbon steel, stainless steel & alloy

4.Dual-Function Equipment: Switch freely between brazing and bright annealing, two heat treatment processes in one furnace

5.24H Uninterrupted Mass Production: Heavy-duty mesh belt for unattended automatic workshop mass manufacturing

6.Precise Temperature Control: Overall temperature uniformity ≤±2℃, consistent welding quality across all batches

304, 316, 410 stainless steel, ferritic stainless steel, red copper, brass, mild carbon steel, copper-clad steel plate; 410 stainless steel can reach surface hardness HV800 after heat treatment

Applicable Workpieces

Stainless steel heat exchangers, liquid cooling plates, refrigeration compressor parts, pipe fittings, electronic conductive connectors, auto water cooling components, aerospace precision hardware, kitchen tubes, medical device components, stainless steel tableware hardware

Application Industries

Energy storage new energy, new energy vehicle, aerospace, refrigeration home appliance, precision electronics, medical equipment, kitchen hardware manufacturing

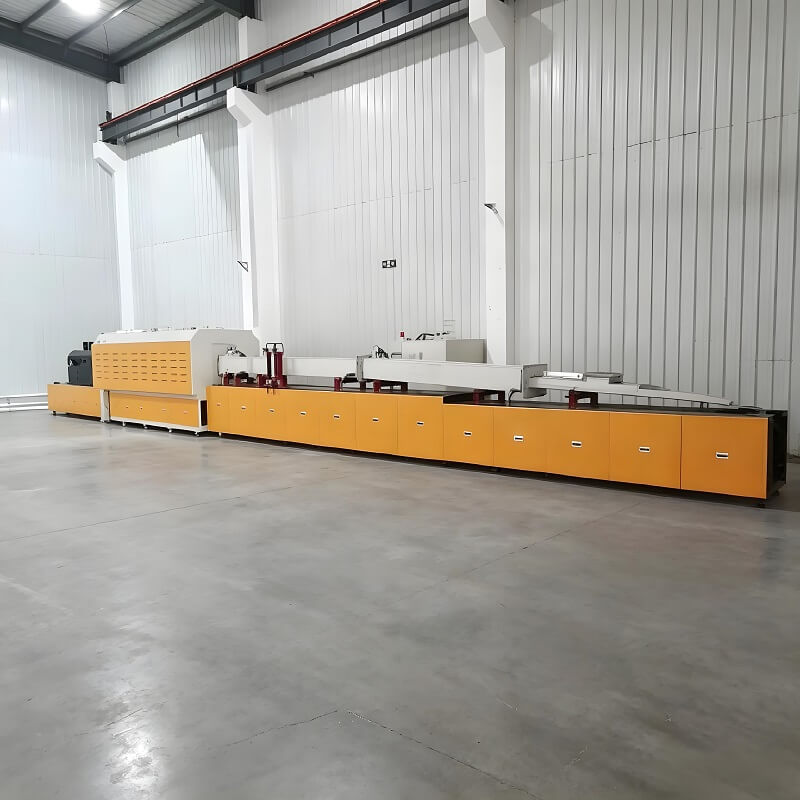

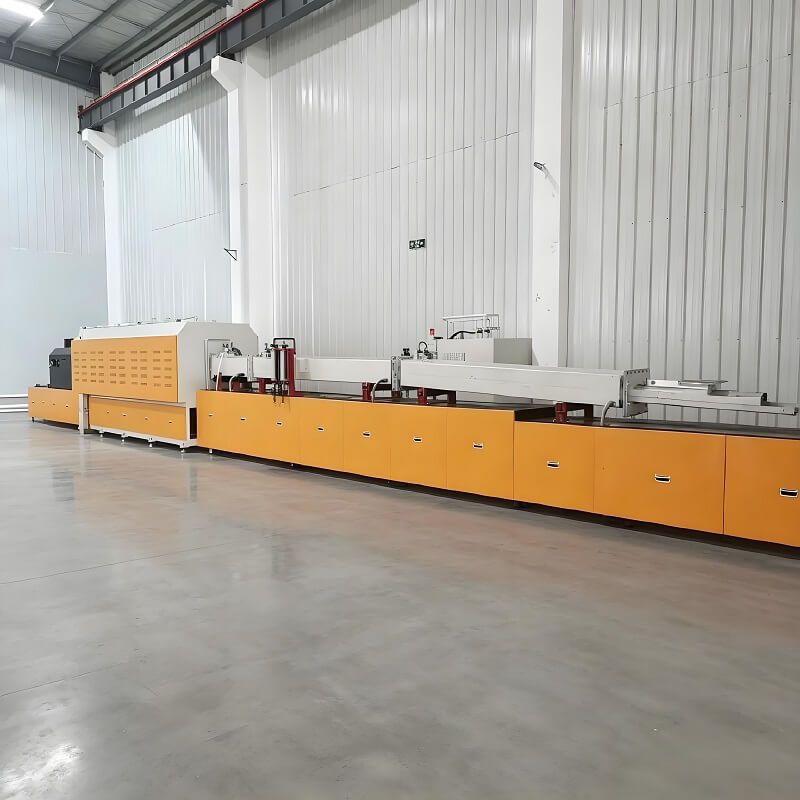

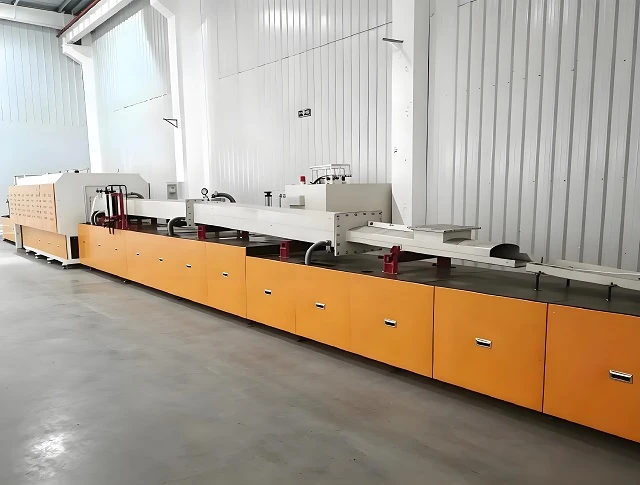

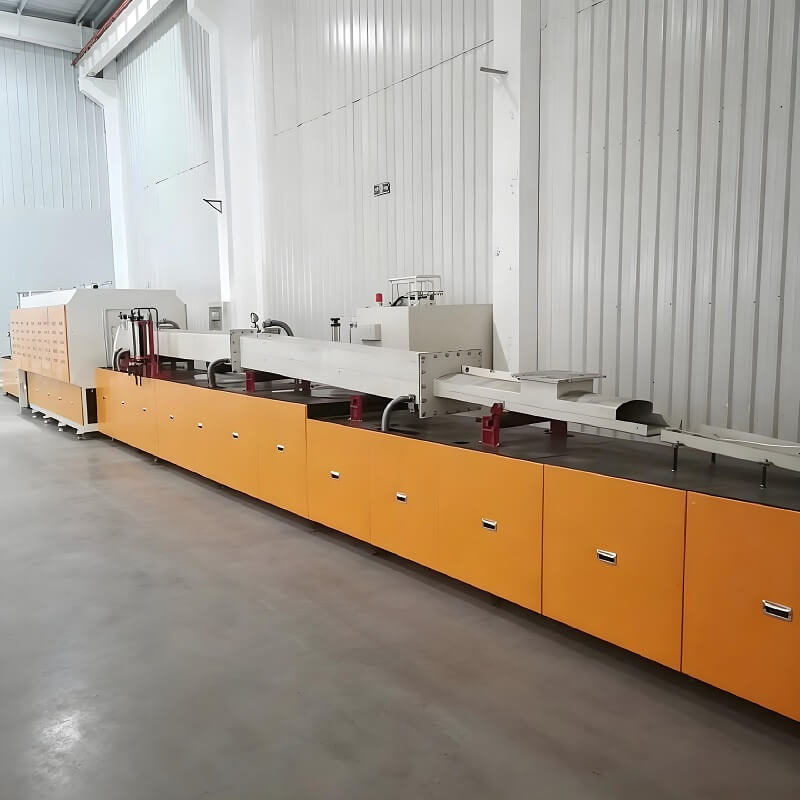

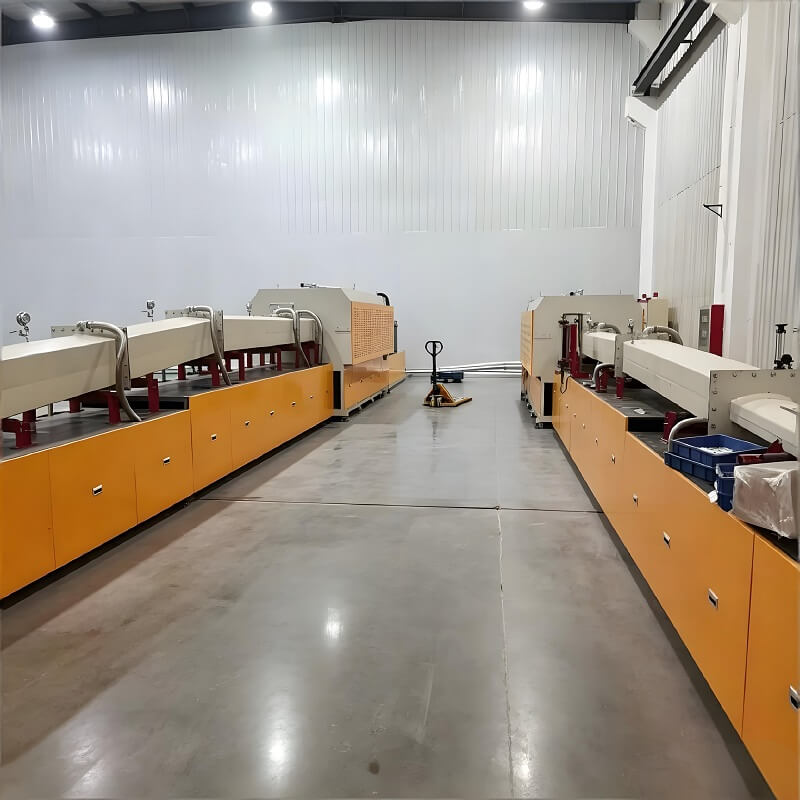

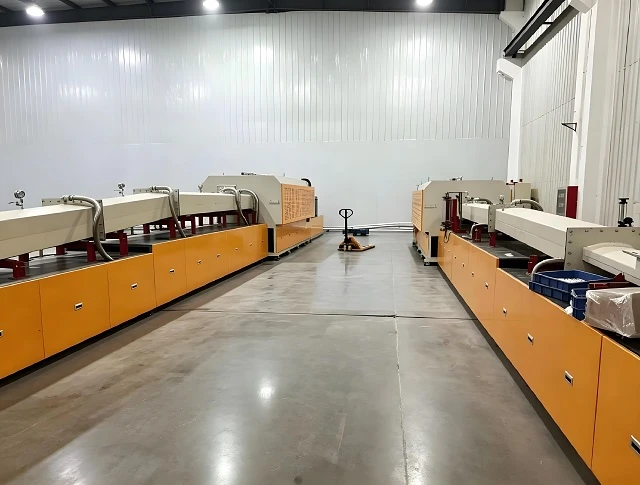

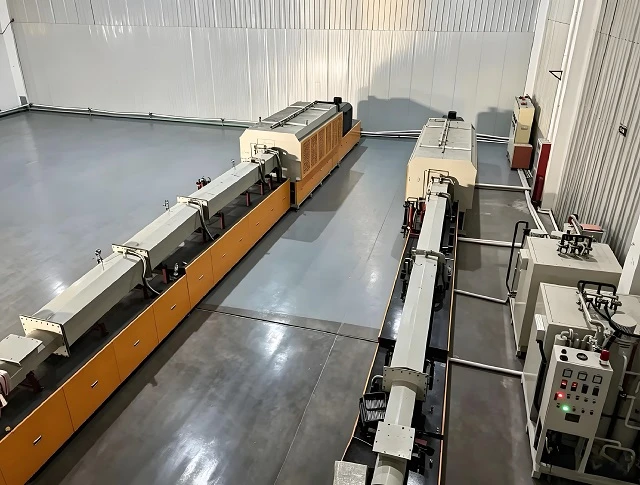

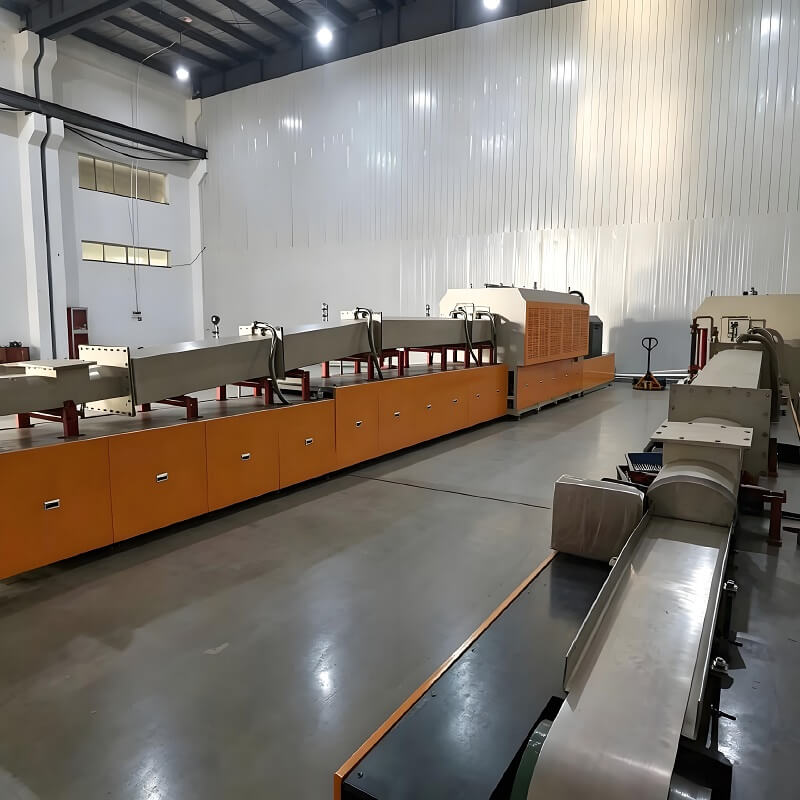

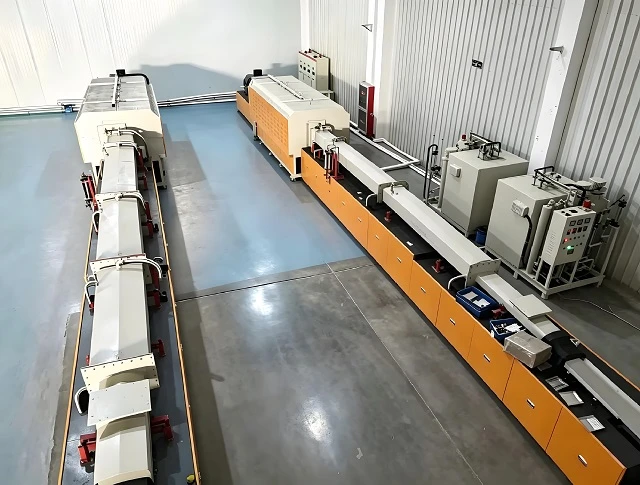

Continuous Mesh Belt Brazing Furnace (Main Mass-Production Model)

For mass small-component assembly lines, 24h automatic operation, dual brazing & annealing function, cost-effective, top choice for new energy & refrigeration factories

Vacuum Brazing Furnace (High-End Precision Model)

Ultra-high vacuum environment for ultra-clean welding seams, suitable for aerospace, medical large complex precision parts, hydrogen-free atmosphere for titanium & super alloy processing
