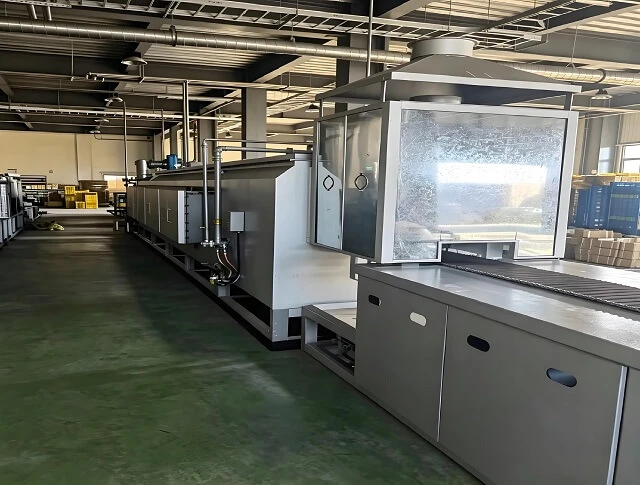

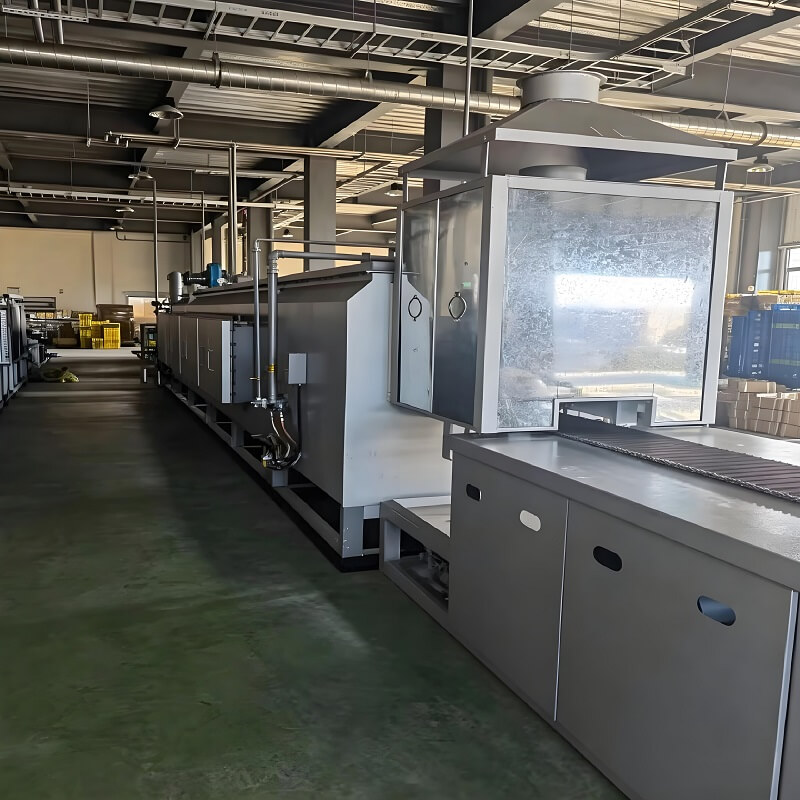

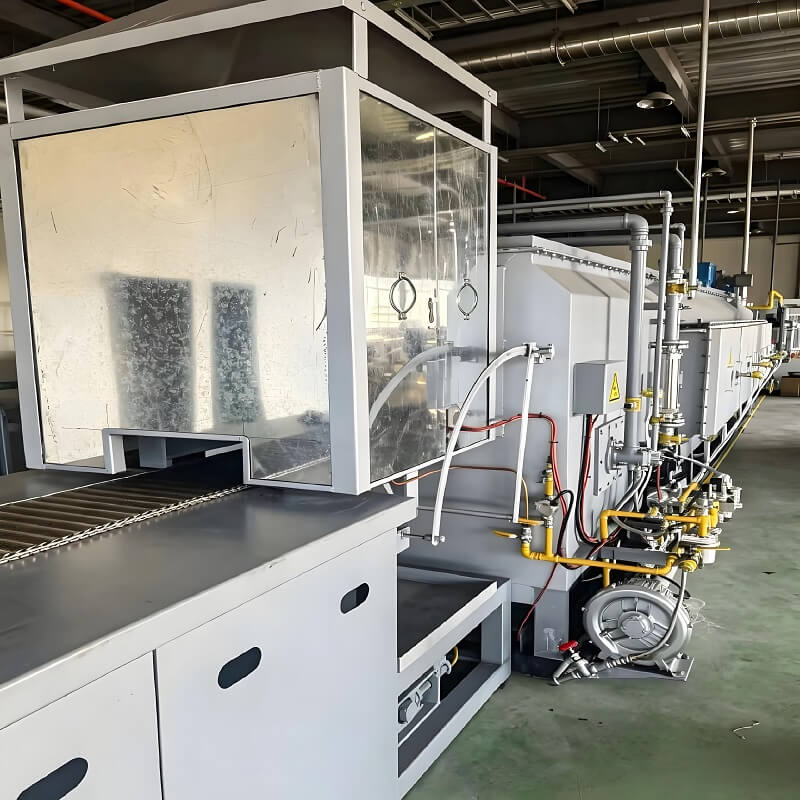

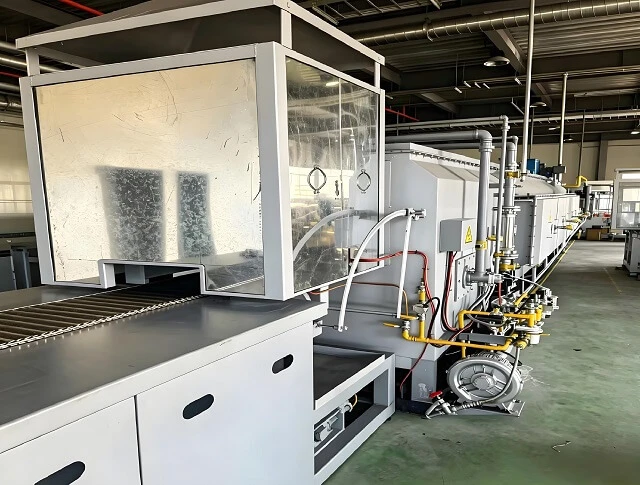

Industrial Sintering Furnace Manufacturer | Fast Cooling Zone for Ferrous & Copper Parts
Fast cooling powder metallurgy sintering furnace with sinter-hardening capability. Eliminates post-heat treatment, reduces costs by 25-35%, and delivers high-strength PM parts directly from the furnace.
Factory Price
OEM Service
After sales information
Payment Method
Products Description
This fast cooling powder metallurgy sintering furnace features a built-in forced convection cooling system that activates immediately after sintering. Achieve "sinter-hardening" in one step — high-strength and high-hardness PM parts come directly out of the furnace, eliminating post-heat treatment and reducing overall costs by 25-35%.
Main Benefits
|
Benefit |
Description |
| Eliminates Post-Heat Treatment | Sintering + hardening completed in one step. No additional quenching or tempering required. |
|
Enhanced Part Performance |
Direct formation of martensitic microstructure. Surface hardness up to 40 HRC, tensile strength ≥800 MPa. |
|
Shortened Production Cycle |
Cooling time reduced from hours to minutes. Equipment utilization increased by 40% or more. |
|
Lower Total Cost |
Reduced energy, labor, and WIP inventory. Overall cost reduction of 25-35%. |
|
Precise Process Control |
Adjustable cooling rate (3-20°C/second). PLC programming matches different material requirements. |
What is a Fast Cooling Powder Metallurgy Sintering Furnace?
A fast cooling powder metallurgy sintering furnace is a specialized industrial furnace that cools PM parts at a controlled, high rate immediately after the sintering cycle is completed.
Unlike traditional sintering furnaces that allow parts to cool slowly and naturally, this equipment integrates a rapid cooling system that achieves fast temperature reduction through:
1.Media Cooling: Recirculating process gas (nitrogen, argon, or hydrogen-nitrogen blends) is introduced into the furnace.

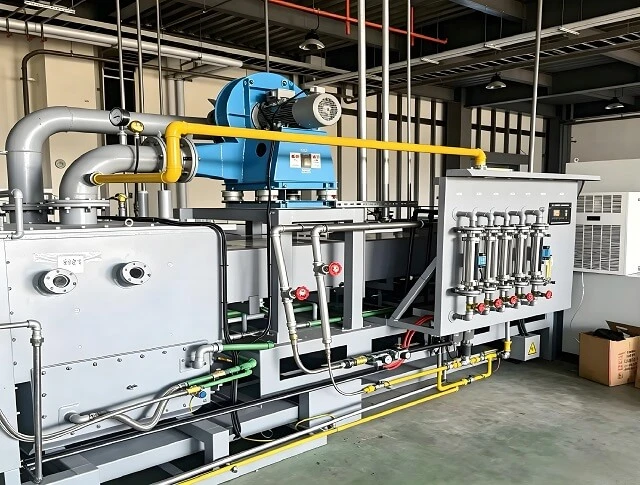

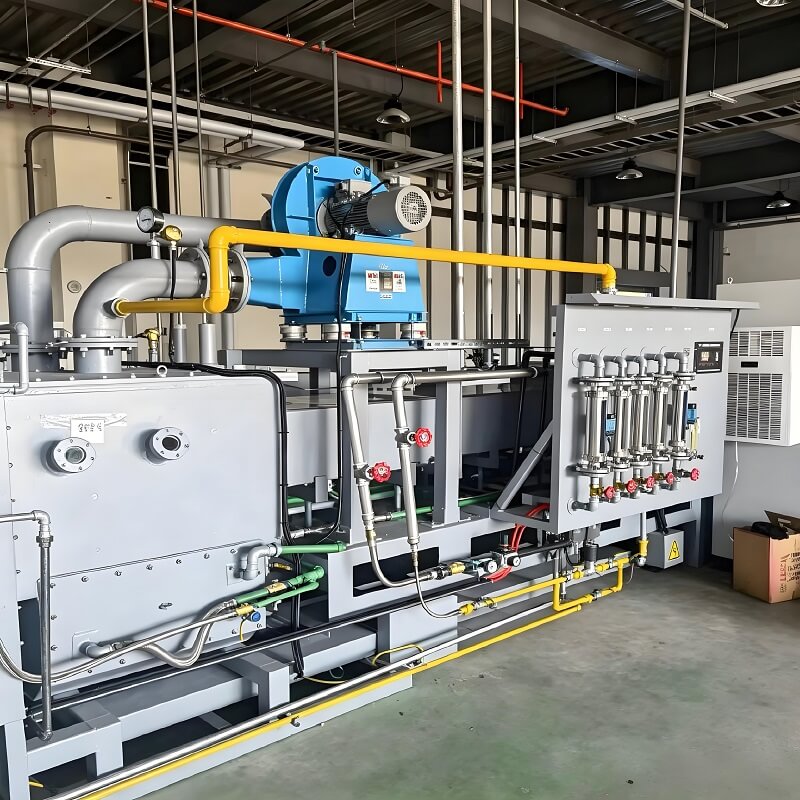

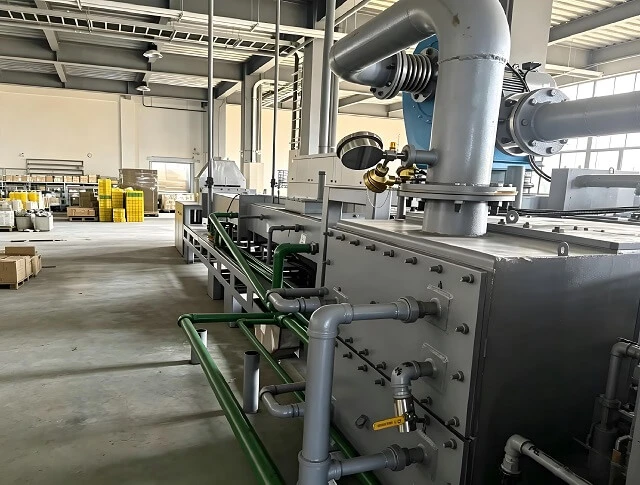

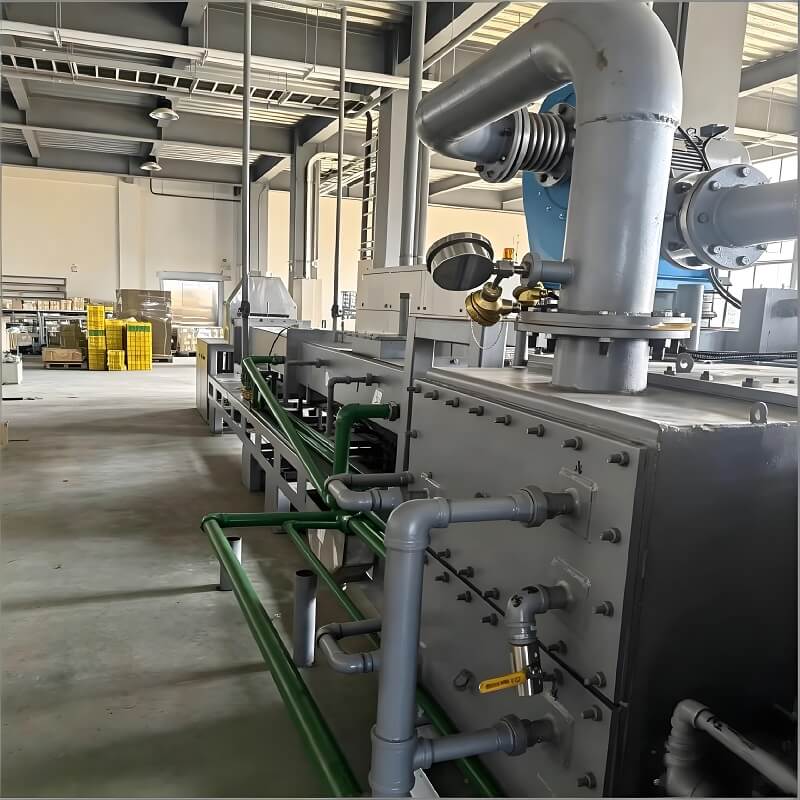

2.Heat Exchange: Hot gas carrying part heat passes through a water-cooled heat exchanger, transferring heat to the external cooling water system.
3.Forced Circulation: Cooled gas is blown back at high velocity onto the part surfaces, creating forced convection that efficiently removes heat.
The result: Parts exit the furnace having already completed their metallurgical transformation — fully hardened and ready for use, with no need to go through a separate heat treatment department.
How It Works
Typical Process Flow:
Loading → Dewaxing (Lubricant Removal) → High-Temperature Sintering (up to 1250°C) → Fast Cooling (3-20°C/sec adjustable) → Unloading (Already Hardened)
|
Comparison |
Traditional Sintering Furnace |
This Product (Fast Cooling Sintering Furnace) |
| Cooling Method | Natural cooling, no active control | Forced convection + water-cooled heat exchanger, precise control |
|
Exit Condition |
Sintered but low hardness |
Sintered + hardened, ready for use |
|
Subsequent Processes |
Requires additional quenching and tempering |
No post-heat treatment needed |
|
Production Cycle |
Long (hours of cooling waiting time) |
Short (minutes of cooling time) |
|
Overall Energy Consumption |
High |
Reduced by 25-35% |
Technical Specifications
|
Parameter |
Specification |
|
Maximum Sintering Temperature |
1250°C |
|
Cooling Rate Range |
3 - 20°C/second (programmable) |
|
Applicable Materials |
Iron-based (Fe-Cu-C, Fe-Cr), copper-based, pre-alloyed steel powders |
|
Furnace Type |
Mesh belt / Pusher (optional) |
|
Cooling Media |
Nitrogen, argon, hydrogen-nitrogen blends |
|
Temperature Zone Control |
Multi-zone independent control, uniformity ±5°C |
|
Control System |
PLC + HMI touch screen (Siemens / Allen-Bradley optional) |
|
Safety Certification |
CE certified |
|
Optional Features |
Dew point control, remote monitoring, data logging |
Applications
| Industry | Typical Parts |
| Automotive | Transmission gears, synchronizer hubs, oil pump rotors, sensor rings |
| Power Tools | Gears, bearing housings, eccentric wheels |
| Home Appliances | Oil-impregnated bearings, structural brackets |
| MIM Parts | Stainless steel components, medical device parts, consumer electronics structural parts |
| Hard Metals / Carbide | Cutting tools, wear-resistant parts |
Why Choose Our Product?
As a direct manufacturer, we provide:
1.Factory Direct Pricing — No middleman markup
2.Customized Solutions — Adjustable cooling zone length (2-8 meters) and belt width (300-1200mm)
3.Complete Turnkey Package — From design and manufacturing to installation, commissioning, and operator training
4.Global Service Support — Spare parts inventory + remote technical support + on-site service
5.Proven Track Record — Already adopted by multiple Tier 1 automotive suppliers
