Continuous Mesh Belt Salt Bath Quenching Tank Precision Heat Treatment Equipment for Austempering

High-efficiency continuous mesh belt salt bath quenching tank specialized in austempering & martempering processes. It stably forms uniform lower bainite structure with minimal workpiece deformation, delivering consistent hardness and excellent toughness. Perfect for mass heat treatment of small hardware parts and high-carbon steel components in automotive and bearing industries.

Factory Price

We are Rexin Machinery, a professional manufacturer of industrial furnaces. We supply wholesale heat treatment equipment: annealing, brazing, vacuum quenching, tempering, sintering furnaces. Factory direct for metal processing industries,All our products are offered at factory direct prices,Get in touch with us today.

OEM Service

Customized OEM Service.

After sales information

Product warranty for one year, on-site installation and training.

Payment Method

50% deposit, 50% to be paid before shipment.

Product Overview

Mesh Belt Salt Bath Tank (Continuous Isothermal Quenching Tank Liner). Mesh belt salt bath tank is the core anti-corrosion chamber component for continuous mesh belt isothermal quenching production lines. The tank holds molten nitrate salt quenching medium inside. Heat-resistant alloy mesh belt transports workpieces steadily through high-temperature molten salt liquid to complete bainite austempering & martensite martempering processes. Double-layer water-cooled structure isolates high temperature to protect furnace steel frame. Our tank features excellent molten salt corrosion resistance & zero leakage performance, ideal for mass continuous heat treatment of fasteners, springs, bearings, cutting tools and small hardware parts.

Material Introduction

SUS310S / 0Cr25Ni20 (Standard Grade)：Max continuous working temp ≤650℃, outstanding resistance to molten nitrate corrosion & oxidation. Cost-effective for regular isothermal quenching production lines.

HK-40 / Inconel 601 Nickel Base Alloy (Heavy-Duty Grade)：Long-term working temp up to 700℃, superior intergranular corrosion resistance against molten salt. Resist perforation & leakage under 24/7 continuous heavy-load operation, perfect for high-output automotive fastener heat treatment lines.

SUS316L Stainless Steel (Low-Temp Washing Tank)：For low-temperature salt tank & cleaning tank below 400℃, good acid & alkali salt mist resistance, lower investment cost.

Main advantages

1. Double-Layer Hollow Water Cooling Interlayer Design：Circulating cooling water flows between inner & outer tank walls to control outer surface temperature under 60℃, prevent furnace frame thermal deformation and stabilize molten salt temperature for consistent quenching hardness.

2. Full Air-Tight Penetration Welding, Zero Leakage Guarantee：Integrated CNC bending forming with full argon arc welding on all seams. Every tank passes hydraulic pressure leak test before delivery, completely avoid molten nitrate leakage that damages equipment & pollutes production line.

3. Thickened Anti-Corrosion Plate With External Reinforcing Ribs：Heavy-gauge inner plates with outer support strips to offset thermal expansion stress from hot molten salt, anti-deformation & anti-cracking under long-term continuous operation.

4. Integrated Mesh Belt Channel Opening Design：Seamless inlet & outlet channel connects front & rear mesh belt furnace, effectively block salt mist backflow to protect front muffle tube from nitrate corrosion damage.

5. 100% Non-Standard Customization Support：Customizable tank length, width, depth, inlet/outlet flange & cooling pipe connectors per customer old tank or equipment drawings, compatible with all domestic & imported continuous mesh belt austempering furnaces.

Application Industries

1.Automotive fasteners: bolts, nuts, screws, suspension springs austempering

2.Bearing components: miniature bearings, needle rollers, shaft sleeves martempering

3.Hardware cutting tools: drill bits, taps, milling cutters, chains, spring clips bainite treatment

4.Precision mechanical small parts: pins, snap rings, stamped components low-deformation heat treatment

5.Matching equipment: continuous mesh belt isothermal quenching furnace, nitrate tempering furnace, mesh belt martempering production line

Technical Specifications

Item	Standard Spec	Customized
Material	SUS310S / HK40 / Inconel601 / SUS316L	Available as required
Max Working Temperature	≤650℃ (310S); ≤700℃ (Nickel Alloy)	Room temp ~ 700℃
Inner Plate Thickness	4mm / 5mm / 6mm	3–10mm
Max Overall Tank Length	18000mm	Any length available
Internal Section Shape	Rectangular tank, arched mesh belt channel	Customized per drawings
Leakage Pressure Test	0.4MPa hydraulic holding test for 40 mins without leakage	Higher pressure test optional
Manufacturing Craft	CNC bending, full argon arc welding, external reinforcing rib welding, NDT inspection	Customizable processing techniques
Cooling Structure	Double-layer hollow water cooling jacket	Single-layer tank without cooling optional

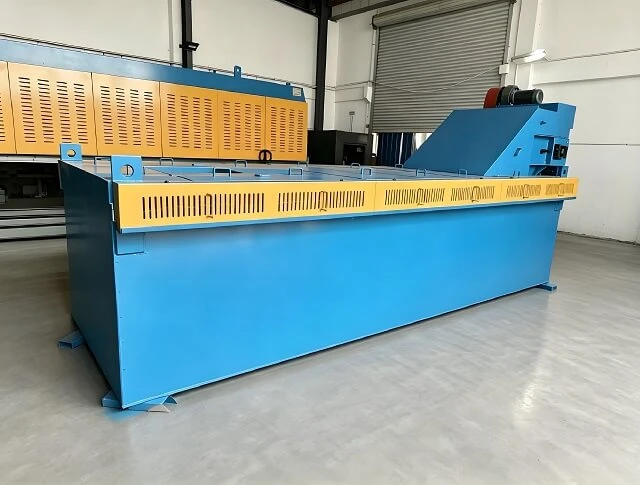

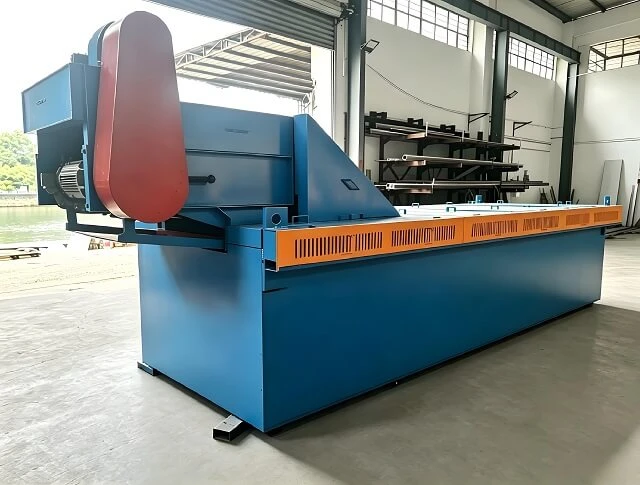

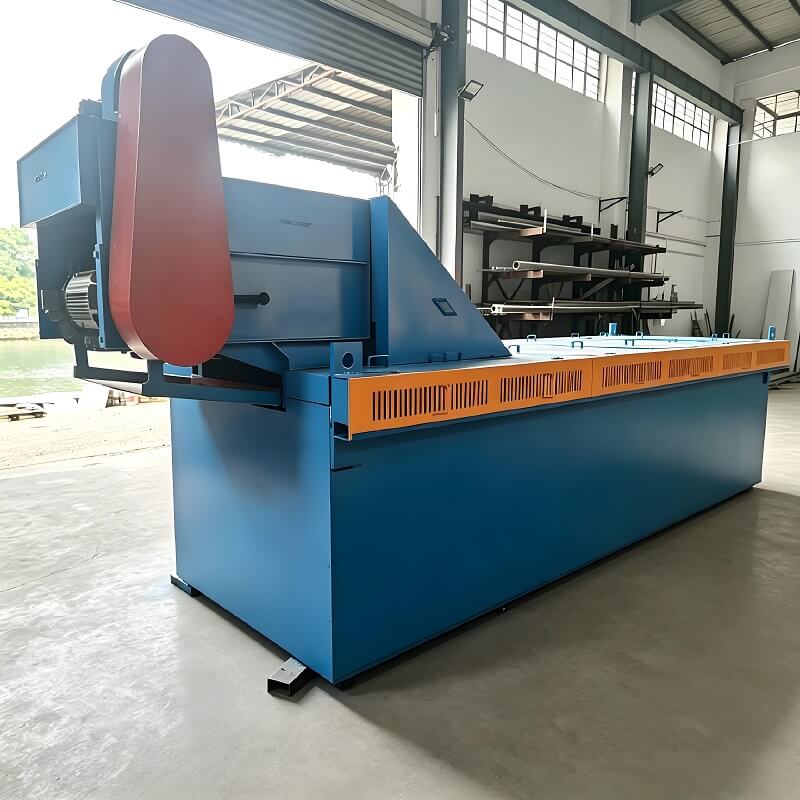

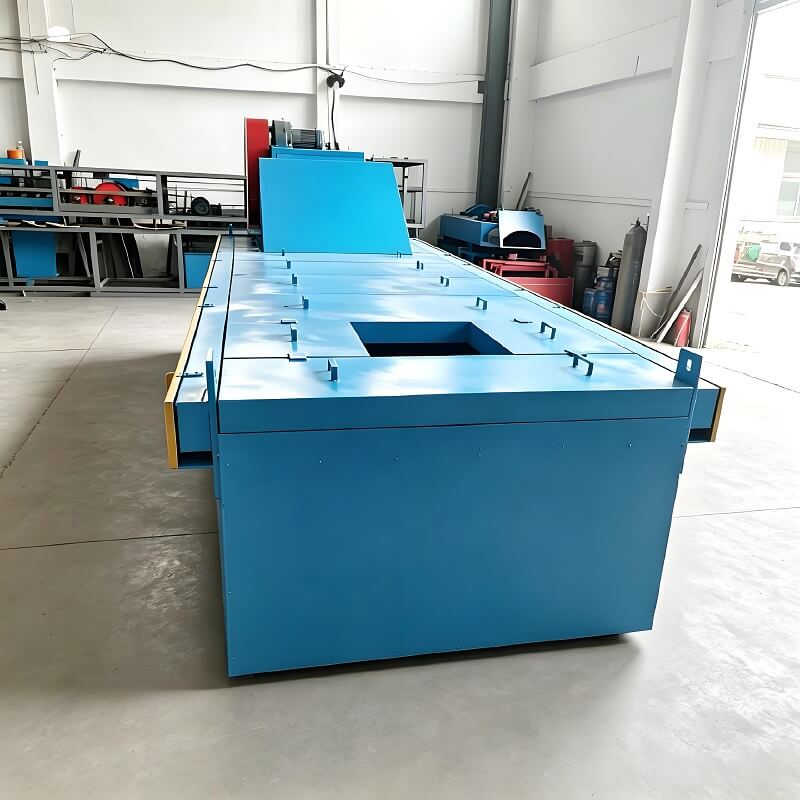

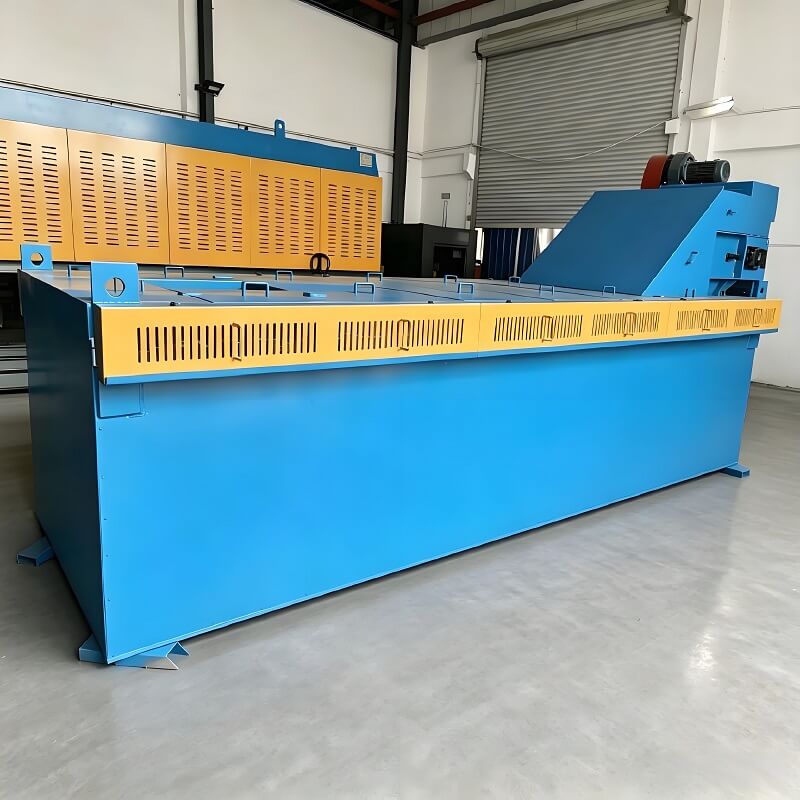

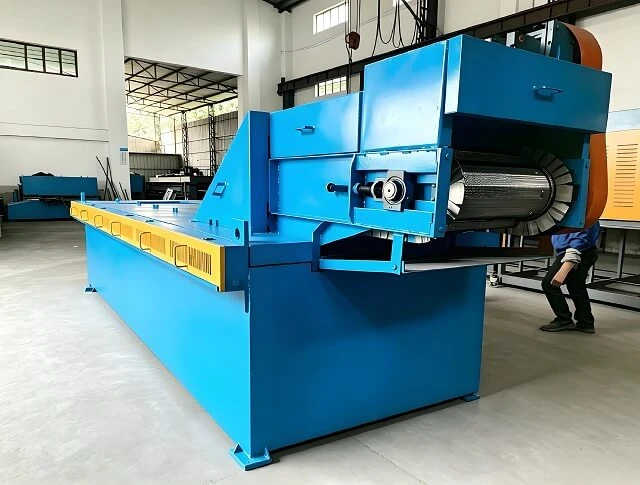

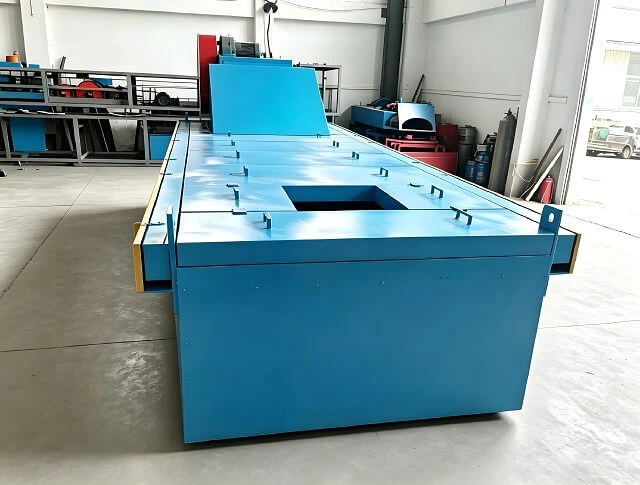

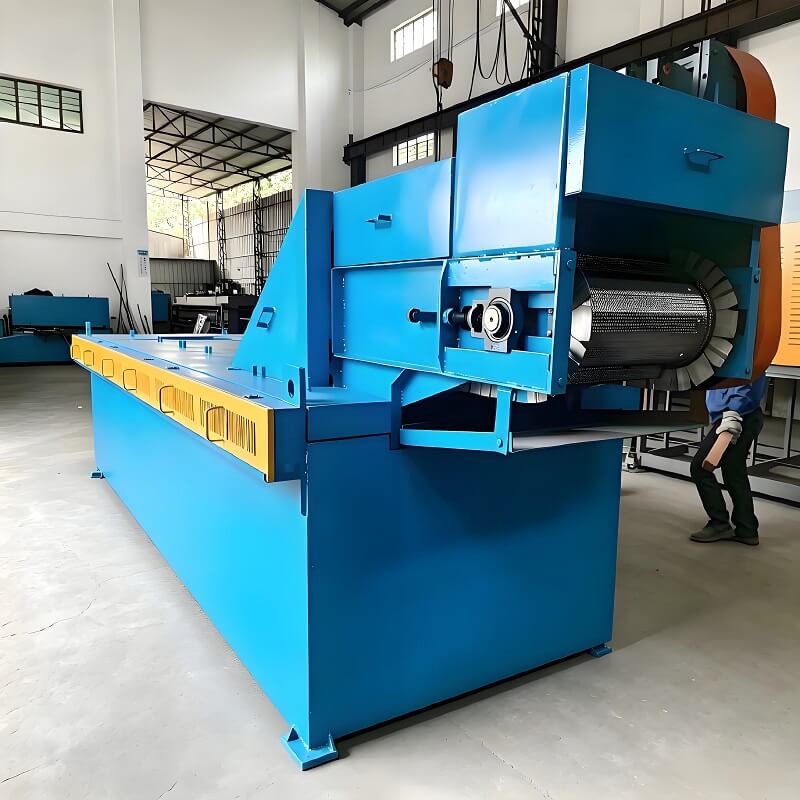

Mesh Belt Salt Bath Tank

Continuous Mesh Belt Salt Bath Quenching Tank Precision Heat Treatment Equipment for Austempering

FAQ

Q1: How long is the service life of mesh belt salt bath tank?

A: SUS310S version: 10–16 months under normal production; HK40/Inconel alloy version can reach 2–3 years, service life depends on daily working temperature & production load.

Q2: Can you copy the dimension of my original old salt tank?

A: Yes, send us dimension drawings or photos of your used tank, our engineer provides free design & quotation within 24 hours.

Q3: Does the tank leak molten salt easily?

A: All welding seams are full penetration welded, each finished tank passes strict hydraulic leak test, no molten salt leakage during long-term mass production.

Q4: What package for ocean shipping?

A: Custom solid wooden case with foam & steel support inside, anti-collision & moisture-proof for long sea transportation.
