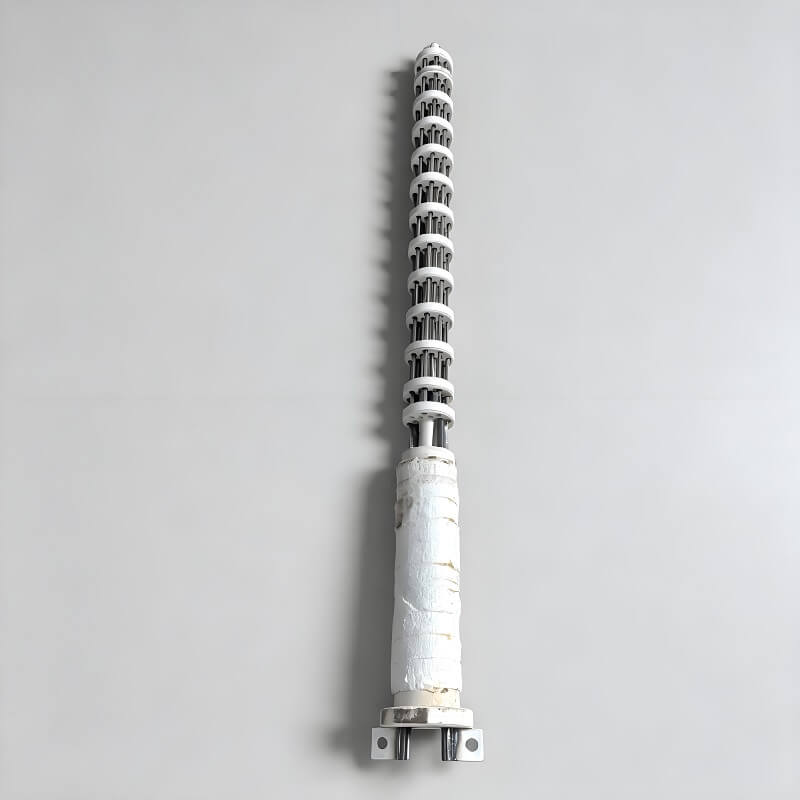

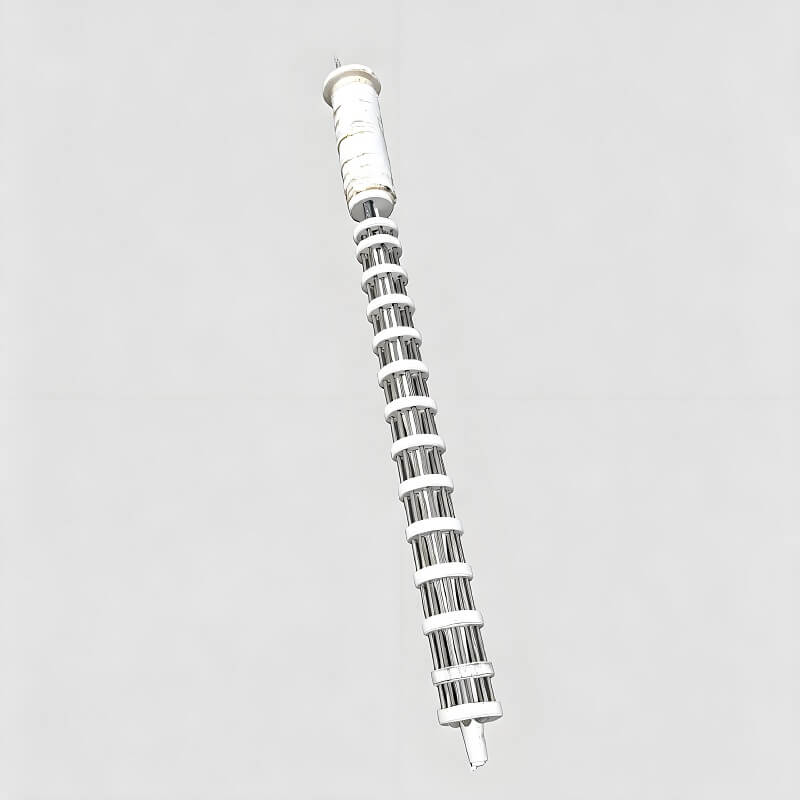

China Manufacturer Custom Radiant Heating Rod for Continuous Heat Treatment Furnace

This customizable radiant heating rod is designed for non-standard heat treatment furnaces and personalized production line layout demands. We provide full ODM & OEM customization service, adjusting heating power, rod length, tube shape, mounting flange and wiring terminal according to customers’ furnace drawings, temperature curves and workshop space restrictions.

It can adopt ceramic or alloy wire heating core based on your actual working temperature demand, compatible with all mainstream continuous heat treatment equipment including mesh belt brazing furnaces, aluminum alloy annealing lines, aging ovens and modified old furnaces. It solves the matching problem of standard heating rods that cannot adapt to special-size non-standard furnace chambers.

According to the customized power and size parameters, the heating rod generates targeted radiant heat to match the internal space of the non-standard furnace cavity. Customized mounting flange and length realize seamless installation inside special-size furnaces. The dual optional heating core ensures stable heating performance under different temperature working conditions, meeting the precise temperature curve requirements of customized continuous heat treatment processes.

1. High temp ceramic insulator discs: separate heating wires, insulation & anti-short circuit, withstand 1200℃

2. Alloy heating wire: 0Cr25Al5 / Cr20Ni80 optional, anti-oxidation & long service life

3. Thermal insulation section: wrapped by aluminum silicate fiber, cool down wiring end to protect terminals

4. Mount base: flange / double lug fixing bracket, easy disassembly

5. Conductive electrode: thick screw rod, stable conduction, anti-burning

1. Full-Range Non-Standard Customization Service 100% customizable parameters: total length, heating zone length, rated power, U/W straight shape, flange size, wiring terminal type; our technical team provides free drawing design according to customer furnace data.

2. Dual Optional Heating Core Material Customers can choose medium-temperature ceramic heating core (≤900℃, tempering/annealing) or high-temperature alloy wire core (≤1250℃, quenching/sintering) based on production temperature requirements.

3. Adaptable For All Continuous Furnace Types Perfectly matched with mesh belt production lines, roller hearth furnaces, aluminum heat treatment equipment, non-standard laboratory furnaces and renovated old heat treatment ovens.

4. Free Technical Matching Support Engineers calculate reasonable heating power layout to avoid overheating or insufficient temperature inside your customized furnace, one-stop heating solution without extra design cost.

1. Custom non-standard mesh belt brazing & annealing production lines

2. Aluminum alloy continuous heat treatment customized furnace

3. Old workshop furnace renovation & heating element replacement

4. Laboratory small test heat treatment oven

5. New energy precision parts tailor-made thermal processing equipment

1. Customizable Items: Length, power, tube shape, flange diameter, terminal structure

2. Optional Heating Core: Ceramic radiant core / FeCrAl alloy wire core

3. Custom Temperature Range: 0℃ ~ 1250℃ as required

4. Mounting Method: Horizontal top installation / vertical side installation customizable

5. Delivery Support: Small batch sample order & mass production OEM orders

Q1: Do you charge extra mold fees for customized radiant heating rods?

A: No mold cost for conventional customized size, only extra processing fee for special ultra-long or ultra-high power models.

Q2: How to confirm the customized size and power of heating rod?

A: You can send us your furnace internal drawings, required holding temperature and production capacity, our technical team will calculate and provide free customized solution drawings for confirmation before production.
