A box type tempering furnace is a professional batch-type heat treatment equipment specially developed for metal tempering processing. It is widely used to optimize the mechanical properties of metal workpieces after quenching, forging, casting, and welding. Different from continuous mesh belt furnaces and tunnel furnaces suitable for mass standardized production, the box tempering furnace features independent closed chamber processing, which can flexibly adapt to small batches, multiple varieties, and large heavy-duty workpieces. It solves the common industrial pain points of metal brittleness, excessive hardness, internal residual stress, and easy deformation after quenching, and is a core heat treatment device in the precision manufacturing, automotive, aerospace, and machinery processing industries.

Tempering is an indispensable post-processing process for metal heat treatment. Quenching can significantly improve the hardness and strength of metals, but it will also increase material brittleness and generate huge internal stress, leading to workpiece cracking and failure during use. The box type tempering furnace realizes precise temperature control and uniform heat conduction through closed-loop heating and constant-temperature soaking, effectively releasing internal stress, improving metal toughness and ductility, and stabilizing the dimensional accuracy of finished parts. With its outstanding flexibility, stability and cost performance, it has become the preferred equipment for most medium and small processing factories and large enterprise customized production lines.

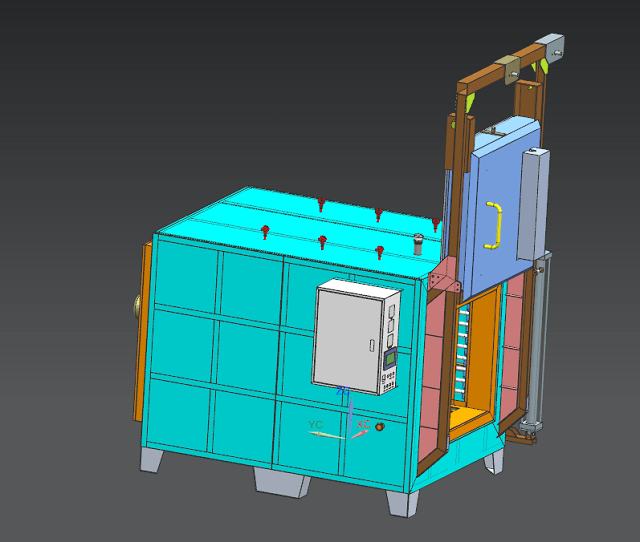

Lifting Door Box Type Tempering Furnace

Professional lifting door box tempering furnace with tight sealing and precise temperature control. Suitable for large and special-shaped metal workpieces tempering in heavy industrial fields.

View Product

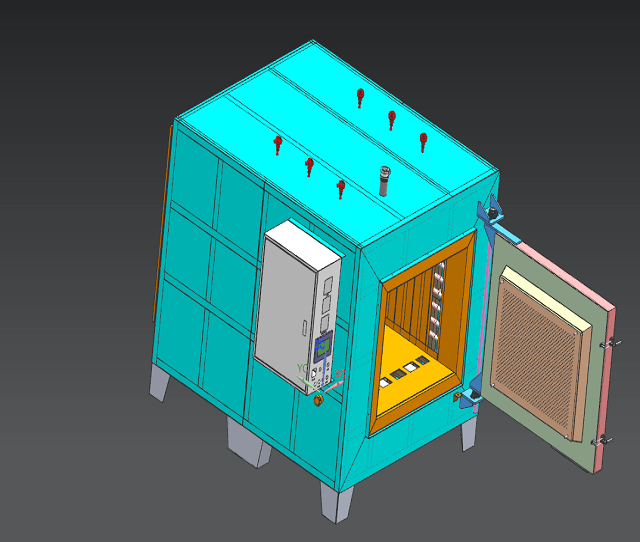

Side Opening Door Box Type Tempering Furnace

High-efficiency side opening box tempering furnace with low cost and easy maintenance. Ideal for tempering small and medium mechanical and mold metal parts.

View Product

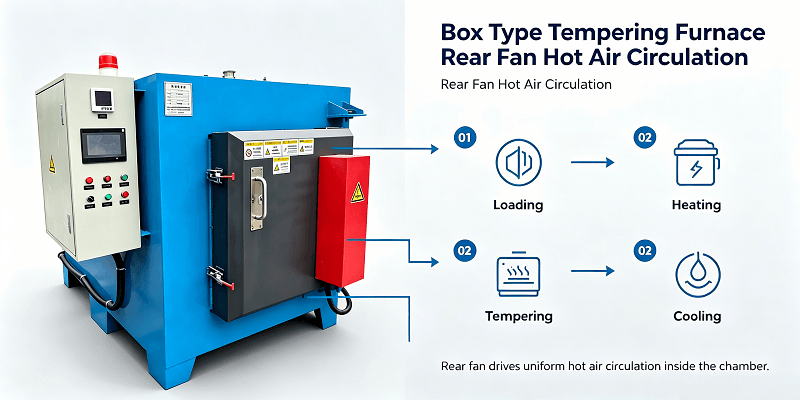

Working Principle of Box Type Tempering Furnace

The working principle of the box type tempering furnace follows a standardized three-stage heat treatment logic: heating, constant-temperature soaking, and natural/forced cooling, relying on precise electrical control and hot air circulation technology to complete high-quality tempering processing.

First, the heating stage: the equipment adopts high-quality resistance heating elements or radiant tube gas heating systems to quickly raise the internal temperature of the furnace chamber to the preset tempering temperature (150°C–700°C). The intelligent PLC control system and high-sensitivity thermocouples monitor the temperature in real time to avoid overheating or temperature deviation.

Second, the soaking stage: this is the core link to ensure tempering quality. The furnace maintains a constant temperature for 2–8 hours according to workpiece material, size and thickness. Equipped with a circulating hot air system, the equipment realizes three-dimensional uniform heat conduction, ensuring that heat fully penetrates to the core of thick and complex workpieces, eliminating uneven hardness and local soft spots.

Third, the cooling stage: after the tempering cycle is completed, the workpiece is cooled slowly with the furnace or cooled by controlled forced air. Slow cooling effectively avoids secondary stress generation, stabilizes the metal microstructure, and finally obtains workpieces with balanced hardness, toughness and dimensional stability.

Box Type Tempering Furnace Schematic Diagram & Structural Working Principle

The schematic diagram of a standard box type tempering furnace intuitively reflects its internal structure and heat transfer logic. The core structure mainly includes furnace shell, thermal insulation layer, heating element, hot air circulation system, workpiece loading rack, temperature detection sensor, and intelligent control cabinet. All structural components cooperate to realize closed, uniform, and intelligent tempering processing, which is the fundamental guarantee for stable workpiece heat treatment quality.

Schematic Working Flow & Structural Function Description: First, the insulated furnace shell forms a closed heat treatment chamber to isolate external temperature and reduce heat loss. The high-density thermal insulation layer inside the shell locks internal heat and improves energy utilization efficiency. The heating elements arranged evenly on the top, side and bottom of the chamber generate stable heat energy after power on. Driven by the circulating fan at the top of the furnace, hot air forms a three-dimensional circulating airflow in the closed chamber, which eliminates temperature dead zones and realizes overall uniform heating of workpieces placed on the loading rack.

During the whole process, high-precision thermocouple sensors real-timely collect furnace temperature data and feed it back to the PLC control cabinet. The system automatically adjusts the heating power according to the set process parameters to maintain constant temperature soaking. After the tempering process is finished, the equipment controls the fan speed and furnace sealing state to complete graded slow cooling or forced cooling. This fully enclosed circulating heating and intelligent temperature regulation structure is the core reason why box tempering furnaces have higher processing accuracy and better stability than ordinary open heat treatment equipment.

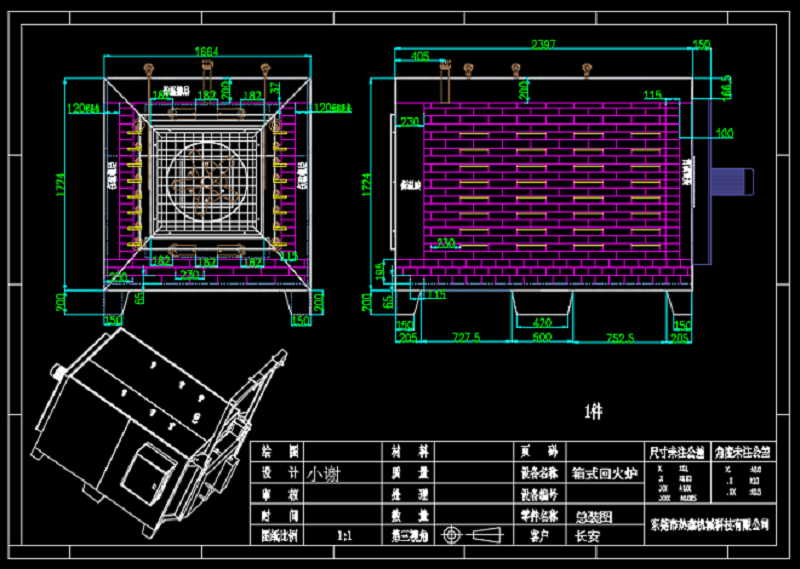

Box Type Tempering Furnace Drawing Design

Sealed & Thermal Insulation Structure: Features fully welded furnace shell, high-temperature door sealing and multi-layer heat preservation. Effectively reduces heat dissipation, isolates outside cold air and maintains stable furnace temperature.

3D Hot Air Circulation System: Adopts top circulating fan and symmetrical air duct arrangement. Removes temperature dead zones, realizes full-chamber uniform heating and ensures stable tempering accuracy.

Intelligent Control & Safety Protection Design: Equipped with standard PLC control and independent temperature detection loops. Built with over-temperature and power-off protection to ensure safe and reliable long-time operation.

Core Schematic Diagram Key Markings: 1. Control Cabinet (Parameter Setting & Closed-loop Temperature Control); 2. Circulating Fan (Uniform Hot Air Convection); 3. Heating Element (Stable Heat Source Supply); 4. Thermal Insulation Layer (Heat Preservation & Energy Saving); 5. Furnace Chamber & Workpiece Rack (Processing Space); 6. Thermocouple (Real-time Temperature Monitoring); 7. Furnace Door & Sealing Strip (Heat Isolation & Closed Processing).

Core Schematic Diagram Key Markings

Box Type Tempering Furnace Technical Parameter Comparison

Different types of box tempering furnaces match different processing scenarios and metal materials. The following table clearly compares the core parameters and application ranges of mainstream models, helping industrial users select targeted equipment:

Main Advantages of Box Type Tempering Furnace

Compared with continuous tempering furnaces, trolley furnaces and other heat treatment equipment, box type tempering furnaces have irreplaceable comprehensive advantages in industrial processing, which are the key reasons for their wide market application:

1. Strong Processing Flexibility and Wide Compatibility

The box tempering furnace adopts an independent batch processing mode, with no fixed production rhythm restrictions. It can adapt to ultra-small batch prototype trial production, small-batch customized processing, and large-batch mass production. It can process small precision parts such as bolts and gears, as well as large heavy-duty workpieces such as mining machinery accessories and aerospace structural parts, solving the problem of single application scenario of traditional continuous furnaces.

2. Precise Temperature Control and Stable Processing Quality

Equipped with intelligent PID constant temperature control system and high-precision thermocouple real-time monitoring device, the equipment realizes closed-loop temperature adjustment. The built-in hot air circulation system ensures uniform temperature in every corner of the furnace chamber, effectively avoiding workpiece deformation, cracking, uneven hardness and other quality problems. The processing consistency of each batch is high, which fully meets the strict quality standards of IATF 16949, aerospace and other industries.

3. Low Operating Cost and High Energy Saving Efficiency

The furnace body adopts high-density refractory insulation materials, which effectively reduces heat loss and improves thermal insulation performance. Compared with continuous furnaces that need long-term preheating and continuous operation, box tempering furnaces can be started and stopped at any time according to production demand, greatly reducing invalid energy consumption. In addition, the equipment has a simple structure, low failure rate, and low daily maintenance cost, effectively reducing the overall production cost for enterprises.

4. Simple Operation and Strong Safety

The intelligent human-machine interaction interface supports one-key setting of heating rate, constant temperature time and cooling mode, with automatic temperature adjustment and over-temperature alarm functions. It is equipped with power-off protection, heat insulation protection and anti-leakage devices to avoid safety accidents during production. Ordinary operators can master the operation skills after simple training, with low labor cost threshold.

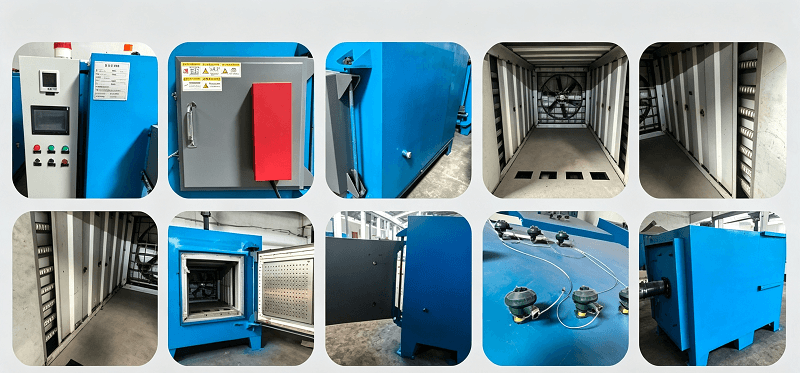

Box Type Tempering Furnace Products Details

Professional Supporting Services for Box Type Tempering Furnace

In addition to high-quality equipment, standardized and full-cycle supporting services are the core guarantee for users to realize stable production. Professional box type tempering furnace manufacturers provide one-stop full-life cycle services covering pre-sales, in-sales and after-sales:

1. Pre-sales Customized Consulting Service

According to users’ workpiece materials, size, output demand and processing standards, professional engineers provide free equipment selection, parameter customization and production scheme design. For special-shaped workpieces and special process requirements, we can customize non-standard furnace chamber size, heating system and control program to ensure that the equipment perfectly matches the user’s production scenario.

2. On-site Installation and Commissioning Service

After equipment delivery, professional after-sales engineers will go to the user’s factory for on-site installation, wiring, commissioning and equipment debugging. Before formal production, we conduct machine test run and workpiece trial processing to ensure that the equipment temperature accuracy, operating efficiency and processing quality reach the standard, and eliminate equipment hidden dangers in advance.

3. Technical Training and Operation Guidance

Provide free professional training for users’ operators and maintenance personnel, including equipment operation specifications, process parameter setting, daily maintenance methods and common fault troubleshooting. We provide electronic operation manuals and video teaching materials to ensure that users can independently complete equipment operation and daily maintenance.

4. Long-term After-sales Maintenance and Spare Parts Supply

Provide long-term warranty service and lifelong maintenance support. In case of equipment failure, the technical team will respond quickly and provide remote guidance or on-site maintenance services. We reserve sufficient original heating elements, thermocouples, controllers and other spare parts to ensure rapid replacement and minimize production downtime losses for users.

Industrial Customized Solutions of Box Type Tempering Furnace

Aiming at the differentiated processing pain points of different industries, box type tempering furnaces provide targeted professional heat treatment solutions to solve various production quality and efficiency problems for enterprises:

1. Automotive Parts Tempering Solution

For automotive gears, crankshafts, camshafts, suspension springs and other core parts, we adopt medium-temperature box tempering furnaces with precise temperature control. Aiming at the problems of easy tooth cracking and fatigue failure of transmission gears after quenching, we formulate a 380°C–450°C constant-temperature soaking process to effectively release internal stress, improve the fatigue resistance and dimensional stability of parts, and meet the high-precision and high-durability requirements of automotive supporting parts.

2. Tool and Die Tempering Solution

Aiming at high-carbon steel and alloy steel molds, cutting tools and drill bits, low-temperature box tempering furnaces are matched with secondary tempering technology. It maintains the high hardness of tool parts while eliminating quenching stress, avoiding tool cracking and wear failure in high-intensity work, and greatly extending the service life of molds and tools. It is suitable for small-batch and multi-variety tool processing in hardware processing factories.

3. Aerospace Precision Parts Solution

For aerospace structural parts, landing gear accessories and engine precision parts, high-temperature box tempering furnaces with ultra-uniform temperature are adopted. Equipped with full-process data recording system, it realizes traceable heat treatment process, meets the strict quality certification requirements of the aerospace industry, and ensures the high strength and high safety of parts under extreme working conditions.

4. Heavy Machinery and Mining Parts Solution

For large-scale mining teeth, hydraulic accessories and high-strength bolts of engineering machinery, customized large-chamber box tempering furnaces are used to realize one-time batch processing of heavy workpieces. The slow cooling process effectively prevents deformation of large parts, improves the overall toughness and wear resistance of workpieces, and adapts to high-load and high-strength working environments of heavy equipment.

About Rexin Machinery

Rexin Machinery owns an independent manufacturing factory specializing in the R&D and production of box type tempering furnaces. Our full range of tempering furnace equipment includes side-opening door tempering furnaces, lift door box tempering furnaces, mesh belt tempering furnaces and vacuum tempering furnaces.  >>> More About Us

Real-World Industrial Case Study

A leading automotive transmission parts manufacturer in Jiangsu, China, was plagued by high defective rates of quenched gears for a long time. The traditional continuous tempering furnace had uneven temperature distribution, resulting in 6.8% of gears with tooth surface cracking and dimensional deviation, which seriously affected production efficiency and product qualification rate.

The enterprise finally adopted six customized medium-temperature box type tempering furnaces to upgrade the production line. The equipment is equipped with a full hot air circulation system and intelligent data monitoring system, with a furnace chamber temperature uniformity of ±5°C. The production process adopts 420°C constant-temperature soaking for 4 hours, matching the 42CrMo alloy steel gear processing requirements.

After the equipment was put into use, the enterprise achieved remarkable results: the product defective rate dropped from 6.8% to 1.2%, the fatigue life of automotive gears increased by 28%, and the overall energy consumption of heat treatment processing was reduced by 17%. At the same time, the flexible batch processing mode realizes the integrated production of prototype trial production and mass production, saving the enterprise the cost of purchasing special trial production equipment. The full-process temperature data recording function also helps the enterprise successfully pass the IATF 16949 quality system certification, further improving product market competitiveness.

Conclusion

The box type tempering furnace is a flexible, efficient and low-cost core heat treatment equipment in modern industrial manufacturing. With its flexible batch processing mode, precise temperature control performance and stable processing quality, it solves many pain points such as single application, high energy consumption and unstable quality of traditional tempering equipment. Covering full-cycle professional supporting services and targeted industry customized solutions, it can meet the differentiated heat treatment needs of automotive, aerospace, tool manufacturing, heavy machinery and other industries. For industrial enterprises pursuing high-quality, low-cost and flexible production, box type tempering furnaces are the most cost-effective and reliable heat treatment equipment choice.
