What Are the 4 Types of Industrial Heat Treatment Furnaces? Full Classification Guide

According to industrial structure, operation mode, and applicable production scenarios, mainstream industrial heat treatment furnaces are divided into four core types: batch box-type heat treatment furnaces, trolley-type heat treatment furnaces, mesh belt continuous heat treatment furnaces, and pit-type heat treatment furnaces. These four types of heat treatment furnaces cover all mainstream heat treatment processing scenarios from small-batch customized production to large-scale mass production, from small precision parts to large heavy-duty workpieces. Each type of furnace has unique structural advantages, process characteristics and applicable industries, and accurate equipment selection is the premise to ensure heat treatment quality and production efficiency.

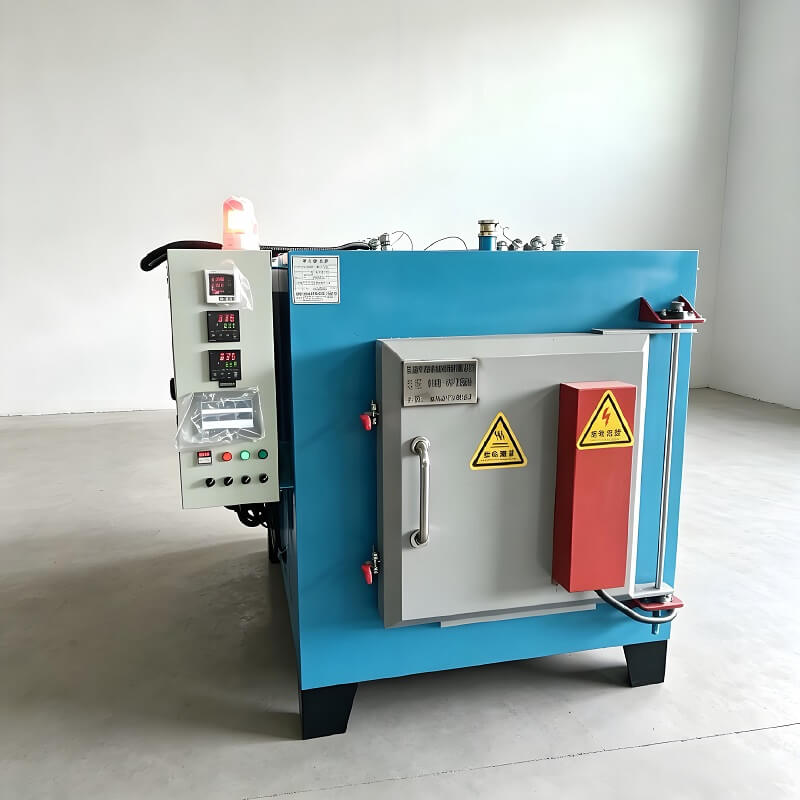

Box-type heat treatment furnaces are the most versatile and widely used batch-type furnace equipment in the industry, belonging to the first core type of heat treatment furnaces. The furnace body adopts a closed box structure, with independent furnace door and heating cavity, featuring simple structure, flexible operation and wide process adaptability. Box-type furnaces support annealing, quenching, hardening, tempering and other multiple heat treatment processes, and can process small and medium-sized workpieces of different materials and specifications. The equipment has low upfront investment, low failure rate and convenient maintenance, which is very suitable for small and medium-sized manufacturing enterprises with multi-variety, small-batch and customized production demands. It is the most common conventional heat treatment equipment in mold processing, hardware trial production and small-batch parts processing.

Trolley-type heat treatment furnaces are upgraded large-scale batch furnace equipment, specially designed for large and super-heavy workpieces, belonging to the second main type of heat treatment furnaces. Different from fixed box-type furnaces, the furnace bottom of trolley-type furnaces is a movable trolley structure, which can automatically move out of the furnace body for loading and unloading materials, solving the handling difficulty of large workpieces such as large molds, heavy mechanical parts and large steel structural parts. The furnace cavity has large space, uniform temperature field and strong bearing capacity, and can realize integral heat treatment of super-large workpieces. The trolley-type furnace supports high-temperature annealing, quenching and hardening of heavy parts, and is widely used in heavy machinery, engineering equipment and large mold manufacturing industries.

Mesh belt continuous heat treatment furnaces are high-efficiency automated production equipment, representing the mainstream furnace type for modern mass production, and the third core type of heat treatment furnaces. The equipment adopts horizontal assembly line structure, equipped with high-temperature resistant mesh belt automatic transmission system, realizing automatic feeding, preheating, hardening, cooling and discharging one-stop operation. It supports 24-hour uninterrupted cyclic production, with extremely high production efficiency and stable batch quality. All workpieces pass through a unified temperature field and process curve, with zero batch deviation. This type of furnace is specially customized for standard parts mass production such as bolts, screws, nuts and springs, and is the preferred equipment for large-scale standardized hardware and fastener manufacturing enterprises.

Pit-type heat treatment furnaces are special vertical high-temperature heat treatment equipment, the fourth important type of industrial heat treatment furnaces. The furnace body is buried underground with a vertical cylindrical structure, featuring good temperature uniformity, small heat loss and excellent sealing performance. It is mainly used for long shaft parts, rod-shaped parts, tubular parts and long strip metal workpieces that are not suitable for horizontal processing. Pit-type furnaces are widely used for tempering, annealing and nitriding treatment of automotive shafts, hydraulic rods, and long mechanical transmission parts. The vertical heating structure can avoid workpiece bending and deformation caused by horizontal placement, ensuring high dimensional accuracy of long workpieces, and it is irreplaceable in special-shaped long parts heat treatment.

The four types of heat treatment furnaces have clear market positioning and complementary application scenarios. Box-type furnaces focus on flexible small-batch production, trolley-type furnaces target large heavy-duty workpieces, mesh belt continuous furnaces serve high-efficiency mass standardized production, and pit-type furnaces are dedicated to special-shaped long parts processing. Manufacturing enterprises can select matching furnace types according to their own workpiece specifications, production batch and process requirements, so as to maximize equipment utilization rate, stabilize heat treatment quality, reduce production costs, and improve overall production efficiency.

With the development of industrial intelligence, the four types of heat treatment furnaces are constantly upgraded and optimized. Traditional manual operation furnaces are gradually replaced by intelligent PLC control models, realizing precise temperature control, automatic process adjustment and digital operation monitoring. The updated furnace equipment has higher processing accuracy, better energy-saving effect and more stable operation performance, which can better meet the increasingly stringent quality standards of modern metal heat treatment processing.
