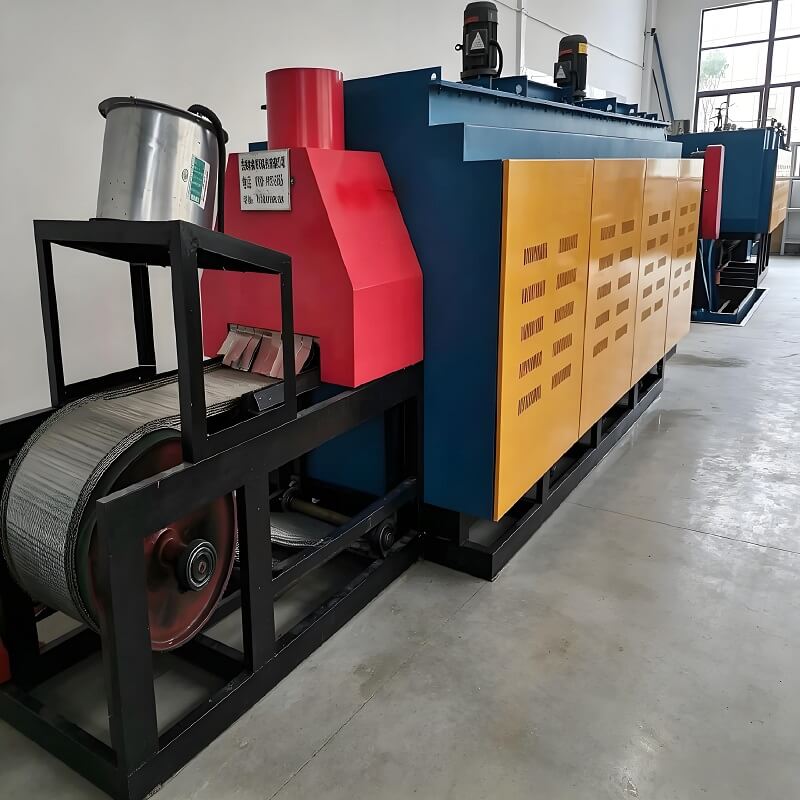

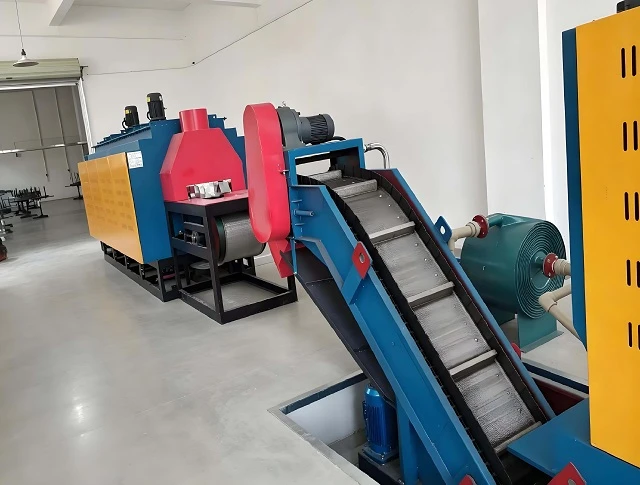

Industrial Continuous Muffle Furnace Precision Atmosphere Sintering & Annealing Equipment

What is Muffle Mesh Belt Furnace?

Continuous Sealed Muffle Mesh Belt Furnace is a high-end indirect heating continuous atmosphere heat treatment equipment specially designed for precision metal mass production. Different from traditional non-muffle mesh belt furnaces, it adopts a fully sealed independent muffle chamber that completely isolates heating elements from workpieces and protective gas, eliminating direct heating pollution and oxidation risks.

Equipped with a continuous stainless steel mesh belt conveying system, the furnace completes the whole heat treatment process including degreasing, sintering, stress relief annealing, bright hardening and brazing inside a stable oxygen-free muffle cavity. It effectively avoids heating wire dust contamination, surface yellowing and decarburization, delivering ultra-clean, bright and high-consistency finished parts. With excellent airtight performance, ultra-low gas consumption, stable temperature field and long service life, this furnace is widely applied in powder metallurgy, precision hardware, automotive and electronic component manufacturing.

The muffle mesh belt furnace adopts a mature integrated working logic of indirect radiant heating + sealed atmosphere protection + continuous mesh belt conveying. The whole furnace is divided into four professional processing zones:

1.Feeding & Preheating Zone: Workpieces are transported into the furnace uniformly by mesh belt. Low-temperature preheating removes surface oil, moisture and processing impurities to prevent thermal cracking and surface defects during high-temperature treatment.

2.Sealed Muffle Heating Zone: Heat is evenly radiated into the chamber through the outer wall of the muffle. Heating elements never contact workpieces or protective gas directly. The interior maintains slight positive pressure with nitrogen or mixed gas to completely block oxygen infiltration.

3.Constant Temperature Soaking Zone: Multi-zone independent PID temperature control ensures an ultra-uniform temperature field. Workpieces complete grain recrystallization, internal stress relief and dense sintering to achieve stable mechanical and magnetic performance.

4.Atmosphere Slow Cooling & Discharging Zone: Parts cool down gradually under oxygen-free sealed atmosphere. Final workpieces come out with bright silver surface, zero oxidation, zero yellowing and zero decarburization, requiring no secondary polishing treatment.

1. Integrated Sealed Muffle Chamber: The core iconic structure made of high-temperature and corrosion-resistant materials. It isolates heat sources from workpieces, stabilizes internal atmosphere and greatly reduces protective gas consumption.

2. 310S Stainless Steel Mesh Belt Conveying System: Equipped with VFD speed regulation, stable operation and no relative friction between workpieces, effectively reducing deformation of tiny precision parts.

3. Multi-Zone Independent PID Temperature Control System: Precise zoned heating control with tiny temperature difference, ensuring high consistency of batch processing quality.

4. Adjustable Protective Atmosphere System: Compatible with pure nitrogen, nitrogen-hydrogen mixed gas and ammonia decomposition atmosphere. Slight positive pressure design prevents external oxygen from entering the furnace.

5. PLC Touch Screen Automatic Control System: Stores multiple sets of professional process recipes, supports 24-hour unattended continuous production and automatic fault alarm.

6. Waste Gas Purification & Incineration Device: Fully decomposes and burns degreasing waste gas, smokeless and odorless, meeting EU and international environmental emission standards.

1. Isolated Muffle Design for Ultra-Clean Workpieces: The fully isolated muffle structure completely separates heating elements from products, avoiding dust and impurity pollution. It provides mirror-bright surface quality far superior to ordinary non-muffle furnaces.

2. Ultra-Low Gas Consumption & Lower Operating Cost: The sealed small-volume muffle cavity features excellent airtightness, saving 30%–50% protective gas cost compared with traditional mesh belt furnaces, bringing long-term economic benefits.

3. Zero Oxidation, Zero Decarburization & Low Deformation: Gentle and uniform indirect heating plus stable belt conveying prevents workpiece extrusion and deformation, perfectly suitable for ultra-precision miniature components.

4. Ultra-Stable Temperature Field & High Yield Rate: Uniform heat storage inside the muffle chamber minimizes temperature fluctuation, ensuring extremely consistent size and performance for mass production batches.

5. Long Service Life & Low Maintenance Cost: Heating elements are isolated from corrosive atmosphere and workpiece debris, greatly reducing component loss, downtime and maintenance frequency.

6. Fully Automatic & Customizable Industrial Solution: Supports 24/7 unattended continuous production. Customizable furnace width, total length, maximum temperature, belt speed and automation scheme to match different production capacities.

Ideal for batch precision heat treatment requiring bright surface, zero oxidation and high consistency:

1.Powder Metallurgy Industry: Bright sintering of iron-based, copper-based and stainless steel powder metallurgy parts

2.Precision Hardware Industry: Stress relief, hardening and tempering for screws, rivets and small structural parts

3.Electronic & Electrical Industry: Sintering and brazing for inductors, resistors, precision terminals and electronic components

4.Automotive Parts Industry: Precision heat treatment for miniature auto parts, bearings and fasteners

5.New Energy Industry: Annealing treatment for small electrical steel, precision conductive parts and energy storage accessories

Q1: What is the difference between muffle and non-muffle mesh belt furnace?

A1: The core difference lies in heating structure. The muffle type adopts indirect heating with a fully sealed independent chamber, featuring lower gas consumption, zero dust pollution, zero oxidation and more stable temperature, ideal for high-precision bright parts. The non-muffle type uses direct open heating with higher gas cost and potential impurity contamination, only suitable for ordinary standard parts.

Q2: What heat treatment processes can this furnace support?

A2: It supports continuous bright sintering, stress relief annealing, hardening, tempering and precision brazing for all kinds of small and precision metal components.

Q3: What protective atmosphere is compatible?

A3: It works stably with pure nitrogen, nitrogen-hydrogen mixed gas and ammonia decomposition atmosphere to meet different anti-oxidation and process requirements.

Q4: Can you provide customized furnace solutions?

A4: Yes. We provide full customization on furnace size, maximum temperature, belt speed, loading capacity and automatic feeding/discharging system to fit your actual production capacity.
