Heavy-Duty Heat-Treatment Furnace Stainless Steel Balanced Weave Conveyor Belt

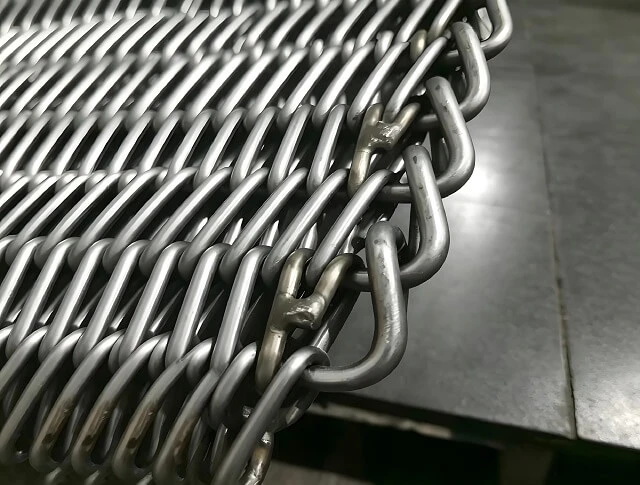

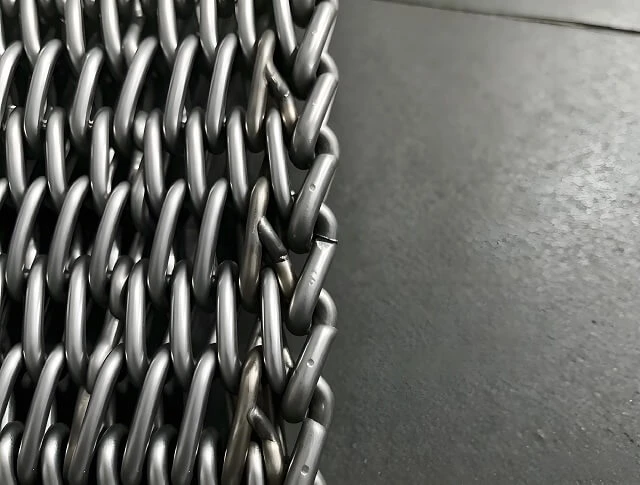

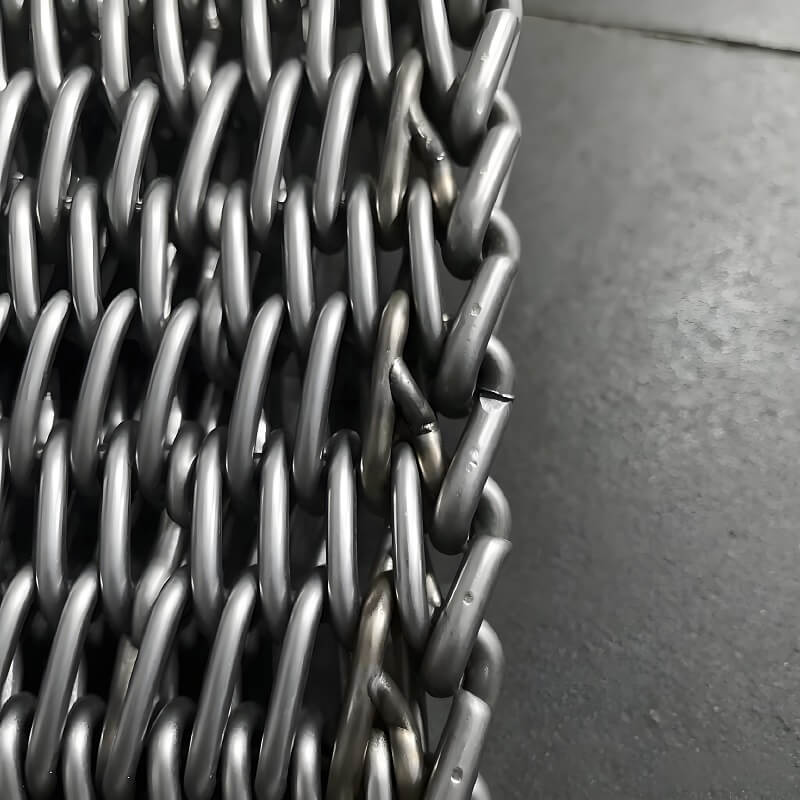

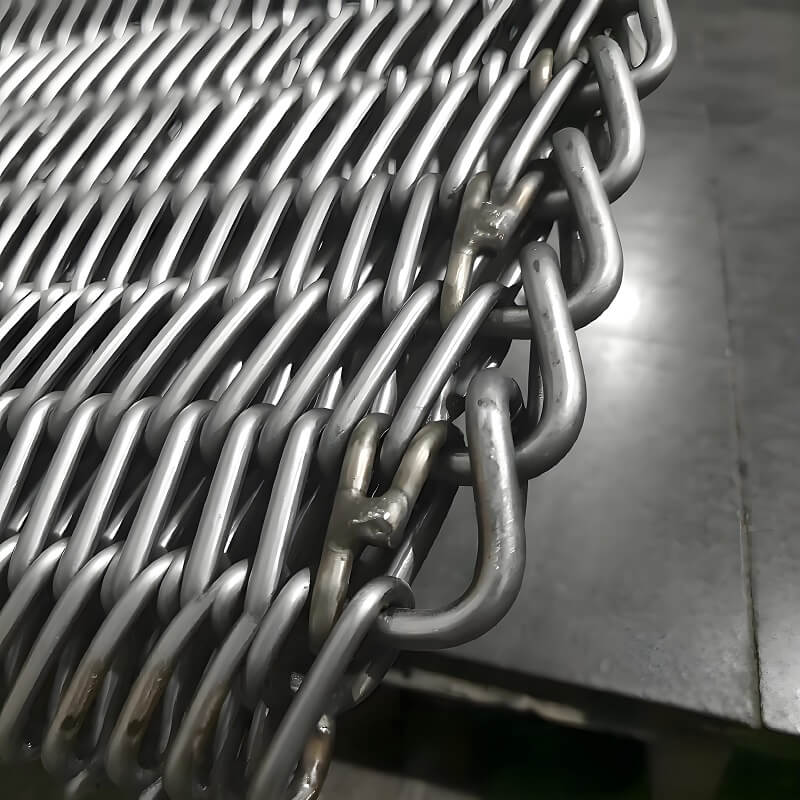

Balanced weave belt is the most popular metal conveyor belt for continuous furnaces & food production lines worldwide. It is woven with alternating left & right hand spiral coils fixed by crimped cross rods. This balanced symmetrical structure effectively solves common problems of ordinary mesh belts: wandering, elongation & permanent deformation.

Available in SUS304, SUS316, SUS310S, FeCrAl and carbon steel, the belt works stably under continuous high temperature from 800℃ to 1200℃. Two drive systems are optional: friction drive and chain positive drive. Custom options include side guards, cross flights, double balanced dense mesh for tiny workpieces, perfectly matching mesh hardening furnaces, tempering furnaces, brazing ovens and baking tunnels.

1.Symmetrical balanced weaving for straight tracking, no wandering during high-speed wide-width conveying, less maintenance downtime

2.Crimped cross rods lock spirals firmly, elongation rate less than 0.5% under long-term high temperature service, service life extended by 40%

3.High open area ensures uniform airflow & furnace atmosphere, consistent heat treatment effect without color difference on workpieces

4.Multiple alloy grades available, resistant to carburization, oxidation, acid & salt spray corrosion

5.Side guards & separation flights customizable to prevent small parts falling off, suitable for inclined conveying lines

6.Chain edge sprocket drive available for heavy load & high-precision continuous production without slipping

7.Fully custom size: width, length, wire gauge & mesh aperture to match customers’ furnace dimensions, stable lead time

1. Material Grade: SS201, SS304, SS316, SS310S, SS314, FeCrAl, Carbon Steel

2. Spiral Wire Diameter: 1.0mm–4.0mm

3. Cross Rod Diameter: 2–8mm

4. Belt Width: 200–3000mm, fully customizable

5. Temperature Resistance: -40℃ ~ 1250℃ (depends on material)

6. Selvage Type: Welded Edge, Knuckled Edge, Chain Edge

7. Weave Type: Standard Balanced, Double Balanced, Compound Balanced

8. Drive Type: Friction Drive / Sprocket Positive Drive

Heat Treatment: Mesh belt hardening furnace, tempering furnace, carbonitriding furnace, bright annealing furnace, powder metallurgy sintering furnace, brazing furnace

Food Processing: Tunnel baking oven, quick-freezing line, frying & drying conveyor line

Other Fields: Glass lehr annealing, chemical washing, hardware drying production line

We are direct manufacturer of metal conveyor mesh belts with more than 18 years production experience. Free drawing design, sample support, professional technical team to match the most suitable belt solution according to your working condition. Welcome global buyers to inquire and visit our factory!
