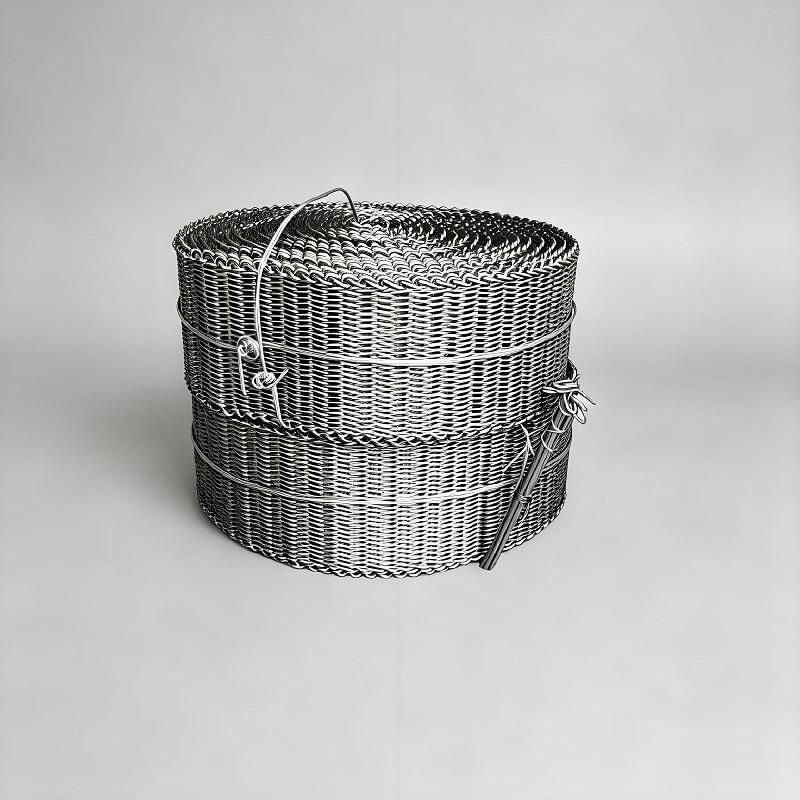

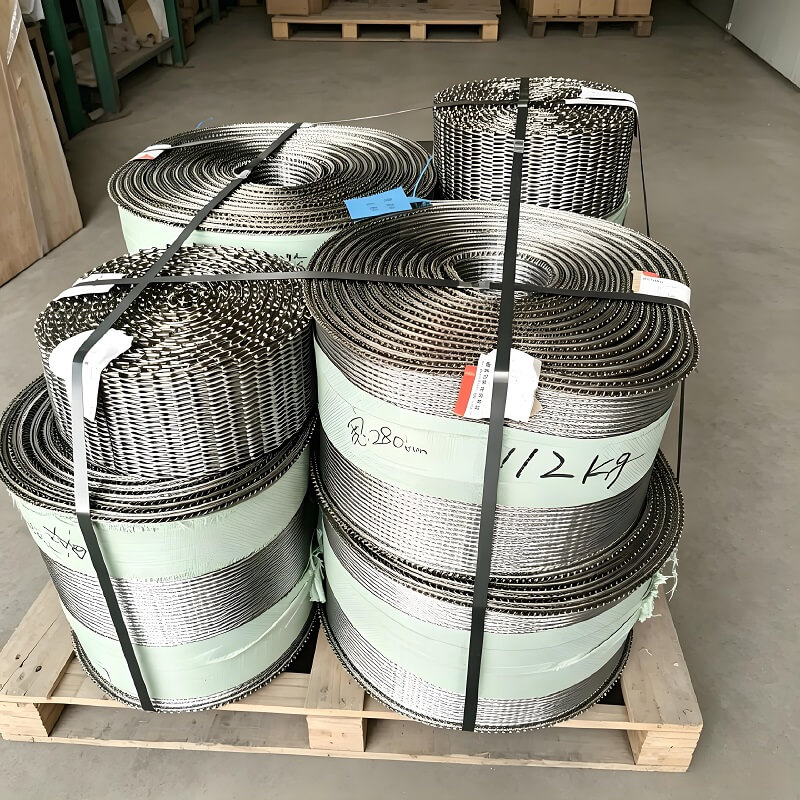

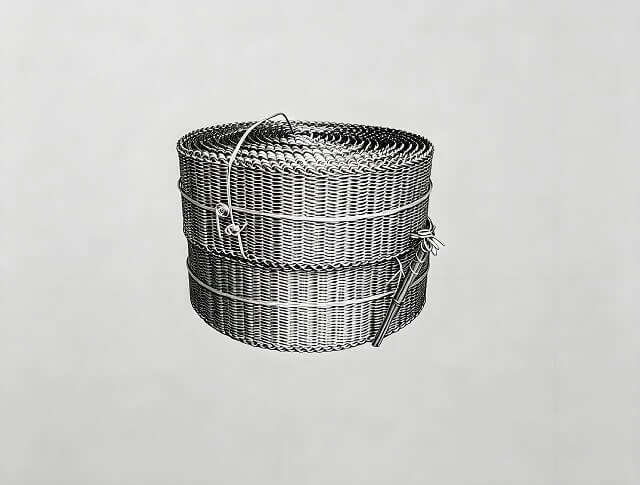

Custom Stainless Steel Sinter Mesh Belt Atmosphere Protection Furnace Belt For Heat Treatment

This customized mesh belt solution is designed for non-standard, special-size and special atmosphere heat treatment furnaces that standard mesh belts cannot match. We provide full ODM & OEM customization covering raw material grade, wire diameter, weave structure, mesh aperture, belt width, total length and auxiliary structures such as side baffles, lifting lugs.

Our technical team designs exclusive mesh belt drawings according to customers’ furnace internal size, working temperature, atmosphere type and workpiece load demand, perfectly matching old furnace renovation, laboratory test furnaces and new energy special heat treatment production lines without size mismatch.

All mesh belt parameters are customized according to customer furnace operation conditions, the tailor-made size, material and weave realize seamless matching with furnace driving roller and internal cavity. Targeted material selection adapts to furnace temperature and protective atmosphere, customized auxiliary structures solve special conveying demands such as anti-leakage and anti-drop.

1. Balanced weave: Standard, smooth, good air permeability

2. Herringbone weave: Small mesh, prevent tiny parts falling

3. Chain driven mesh belt: Heavy load for large production line

4. Weld reinforced edge: Anti-loose, long service life

1. Full-Range Customization Of All Parameters Custom material, weave, wire thickness, width, length, anti-leakage baffles, edge reinforcement as required.

2. Multi-Grade High-Temp Alloy Material Optional SUS310S, SUS314, Cr20Ni80 three mainstream heat-resistant alloys for different temperature & atmosphere conditions.

3. Free Technical Matching Drawing Design Engineers calculate load and temperature resistance to recommend optimal mesh structure without extra design fee.

4. Small Batch Sample Support Accept small trial order for laboratory equipment and new product trial production lines.

1. Non-standard customized mesh belt furnace new production line

2. Old workshop heat treatment furnace renovation & belt replacement

3. New energy precision parts special atmosphere heat treatment equipment

4. Laboratory small test continuous heating oven

5. Special corrosion-resistant atmosphere industrial furnace

• Customizable Items: Material grade, weave type, wire diameter, width, length, side baffles

• Optional Alloys: SUS310S, SUS314, Cr20Ni80

• Custom Temp Range: 200℃ ~ 1150℃

• MOQ: Support small batch sample & mass production orders

Q1: Do you charge mold fees for customized mesh belt sizes?

A: No extra mold cost for conventional custom width/length; only extra processing charge for super thick wire or special complex baffle structure.

Q2: How to confirm the custom mesh belt specification?

A: Provide furnace internal width, total operation length, working temperature, maximum load and workpiece type, we output detailed design drawing for confirmation before production.
