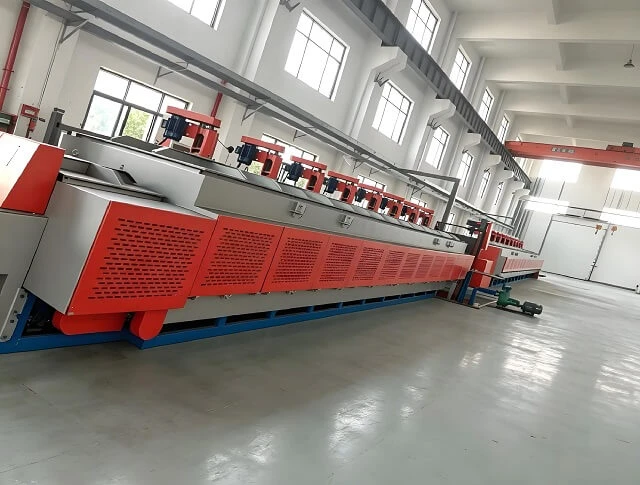

High-Output Continuous Mesh Belt Tempering Furnace for High-Volume Alloy Hardware

Continuous Mesh Belt Tempering Furnace is an automatic through-type thermal processing machine designed for mass tempering, stress relief and post-quenching conditioning of metal workpieces. It adopts high-temperature alloy mesh belt as the conveying system, transporting parts steadily through preheating, heating, soaking and air cooling zones for consistent tempering effect.

Equipped with powerful hot air circulating fans and multi-zone independent temperature control system, this tempering furnace delivers even heat distribution inside the chamber, ensuring uniform hardness, low deformation and bright surface finish for bulk metal components. It can work standalone or be integrated with mesh belt hardening furnace & washing machine to form a full automatic heat treatment production line.

Workpieces are evenly placed on the endless stainless steel mesh belt. Driven by variable-speed motor, the belt feeds parts into the furnace chamber step by step. Large impeller circulation fans force hot air to flow fully around the workpieces; each heating zone adopts independent PID temperature adjustment to maintain stable tempering temperature.

After constant-temperature soaking to eliminate quenching internal stress and optimize metal toughness, finished products move to the air cooling section and discharge continuously for next procedures.

1.Continuous Mass Production Stable automatic feeding & discharging, hourly output ranges from 80kg to 1000kg, ideal for high-volume factory production, greatly cutting labor cost.

2.Ultra Uniform Temperature Control Multi-section independent heating + large circulation fans, temperature tolerance within ±3℃; every workpiece gets identical heating to guarantee consistent mechanical performance.

3.Durable High-Temp Mesh Belt Adopt SUS314 heat-resistant alloy woven mesh belt, anti-oxidation, wear-resistant and long service life; belt speed 0.1–10m/min stepless adjustable to match different tempering cycles.

4.Energy Saving Heat Insulation Design Full furnace lining with aluminum silicate fiber cotton, minimal heat loss, lower power consumption and stable operating environment.

5.Easy Maintenance Structure Straight plug-in heating elements, replaceable without dismantling furnace shell; modular design simplifies daily inspection and repair.

6.Intelligent PLC Automatic Control Touch screen operation, store dozens of tempering recipes, one-click parameter switch; overheat & overload safety protection system for stable long-running.

7.Wide Compatibility & Customization Custom furnace chamber width/length, power, cooling structure and atmosphere system according to customer production demands.

1.Fastener industry: bolts, screws, nuts, self-tapping screws, studs, spring washers

2.Automotive & motorcycle parts: piston pins, connecting rods, lock rings, fasteners, small stamping parts

3.Bearing, chain, spring, hand tools & hardware accessories

4.Textile machinery components, bicycle metal parts, small forgings & stampings

5.Stress relief, low & medium temperature tempering for carbon steel & alloy steel parts

1.Protective atmosphere system (nitrogen, methanol atmosphere for anti-oxidation)

2.Water cooling auxiliary section for fast cooling

3.Automatic front feeding machine & rear collecting bin

4.Independent waste gas exhaust & dust removal unit

5.Remote monitoring module for factory central control

Q1: What metal parts are suitable for this mesh belt tempering furnace?
A: Small & medium bulk metal parts including fasteners, springs, bearings, auto stamping parts, chains, hardware tools, carbon steel and alloy steel components for low & medium temperature tempering and stress relief.

Q2: Can I customize the furnace size and output?
A: Yes. We fully customize furnace chamber dimension, power, cooling structure, atmosphere system and hourly output to match your production line.

Q3: Is the furnace fully automatic? Do workers need continuous operation?
A: Adopt PLC touch screen automatic control. After setting tempering parameters, the machine runs continuously with only regular material feeding & collection required. Equipped with multiple safety protection alarms.

Q4: Can this furnace form a complete heat treatment line with other machines?
A: Absolutely. It can be matched with mesh belt hardening furnace, pre-washing machine, quenching oil tank and post-cleaning machine to build an integrated automatic heat treatment production line.
