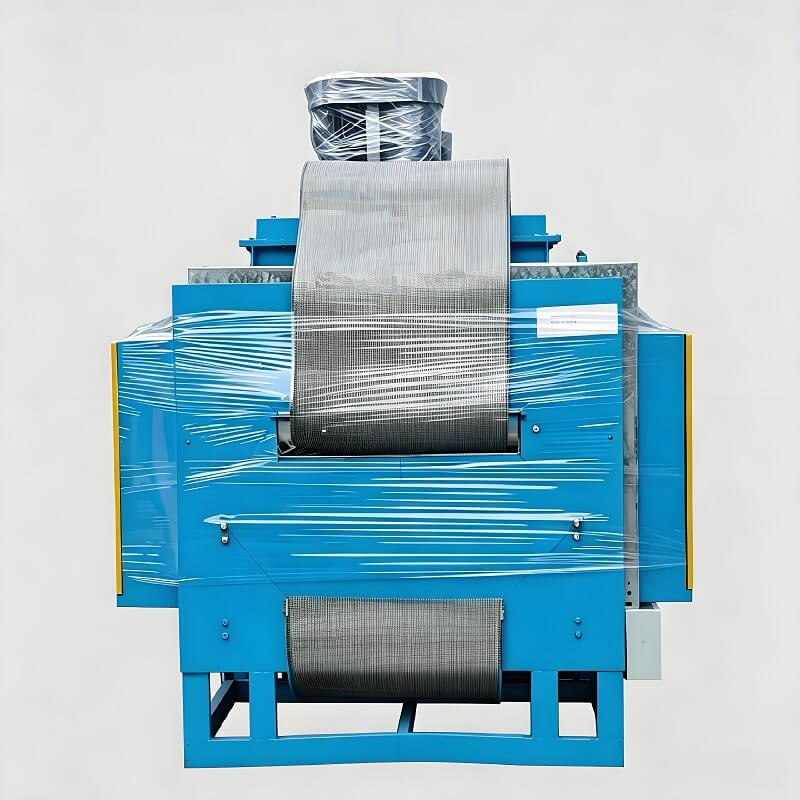

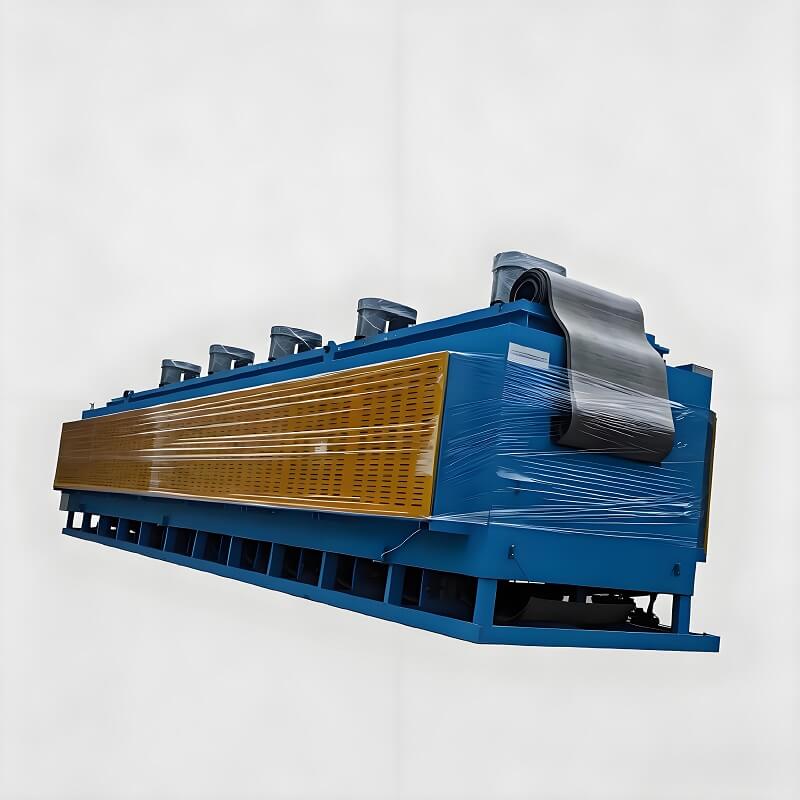

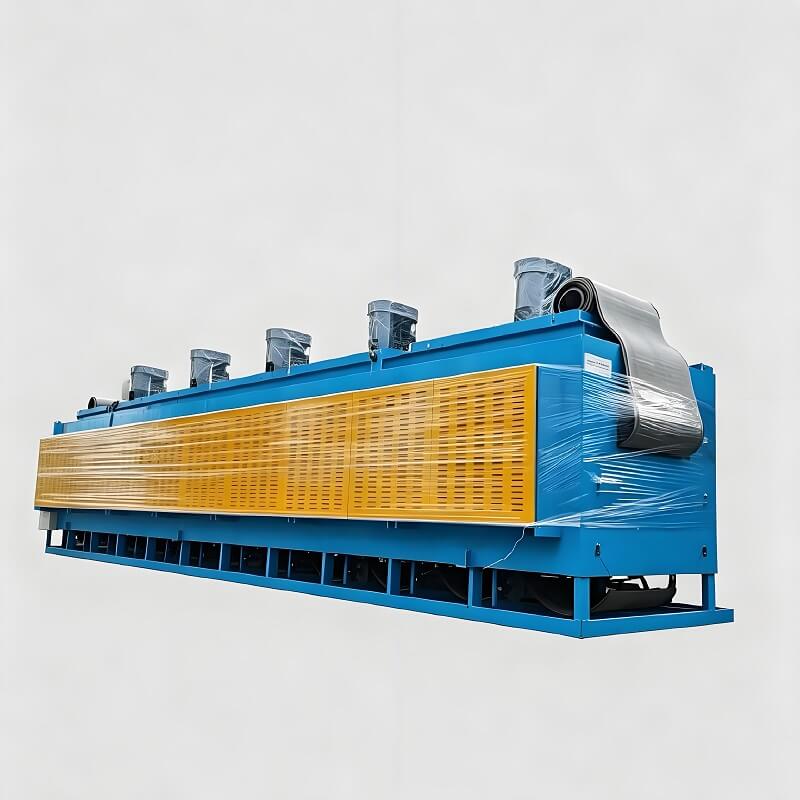

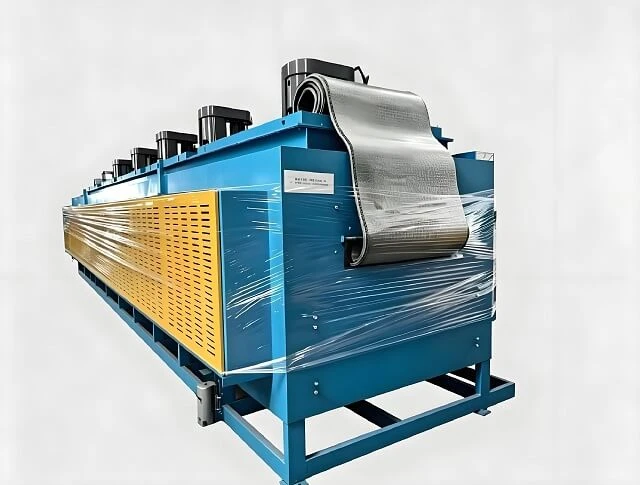

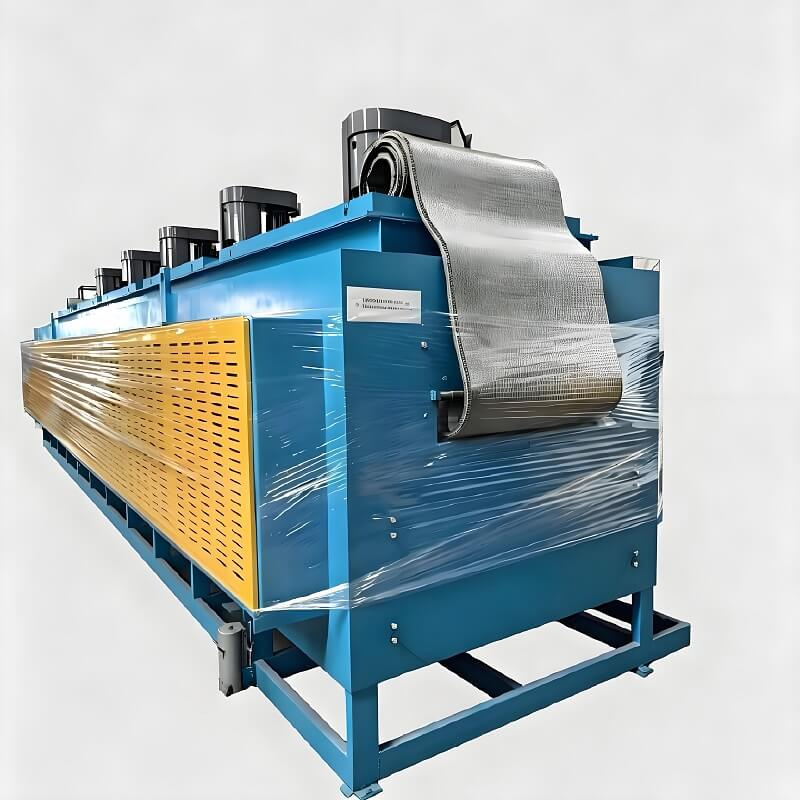

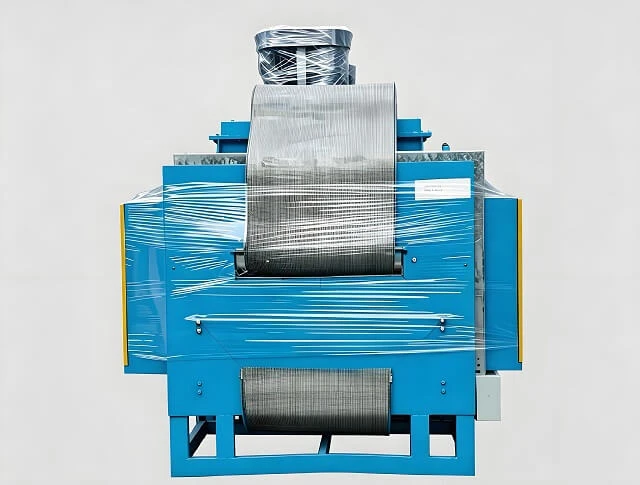

Continuous Mesh Belt Tempering Furnace for Fastener Bolt Screw Heat Treatment

Mesh Belt Tempering Furnace is a continuous automatic hot-air tempering heat treatment machine. High temperature resistant stainless steel mesh belt transports workpieces at constant speed through multi-zone temperature-controlled heating chamber to complete tempering, stress relief and hardness adjustment after quenching.

Equipped with forced hot air circulation system, independent temperature zones and variable frequency mesh belt speed regulation, it supports 24/7 non-stop mass production. Perfect for small & medium metal parts including bolts, bearings, springs and auto fasteners. It can be combined with mesh belt hardening furnace & washing machine to form full-auto heat treatment production line, widely applied in fastener, automotive, bearing and hardware manufacturing.

1.Feeding Conveying System

Variable frequency driven SUS310S high temp resistant mesh belt, belt deviation correction device, stepless speed adjustment for different holding time

2.Furnace Insulation Chamber

Full aluminum silicate fiber lining, multi-layer heat insulation, fast temperature rise, 25~30% energy saving

3.Heating & Hot Air Circulation

Upper & lower partition Cr25Al5 heating elements, large impeller circulating fan, uniform furnace temperature

4.Multi-Zone Independent Temperature Control

Imported PID controller + PLC touch screen, independent temp control for each zone, precision ±3℃, save multiple tempering process curves

5.Discharging Cooling Section

Slow cooling + air cooling dual mode, bright workpiece surface without oxidation & low deformation

 6.Electrical Control Cabinet

Overload, over-temperature & belt stop safety protection, one-button start, easy operation

1. High Continuous Output: 24h non-stop running, capacity 100~800kg/h, greatly cut labor cost for mass production

2. Stable Tempering Quality: Full hot air circulation, hardness deviation ≤2HRC for same batch, thorough stress relief & low deformation

3. Precise Intelligent Temperature Control: Separate zone control with ±3℃ accuracy, save & recall multiple process recipes, user-friendly operation

4. Long Service Life & Low Maintenance: Import SUS310S heat resistant mesh belt, removable heating elements for easy replacement without furnace disassembly

5. Energy Efficient & Eco-Friendly: Full fiber lightweight lining, power consumption below 45% rated power under constant temperature, zero harmful waste gas

6. Fully Customizable: Furnace size, power, hourly capacity & max temperature customizable, match full hardening-tempering production line

7. Safe Export Standard: CE certified, multi safety protection for overheat, overload & belt deviation

1. Fasteners: Bolts, screws, nuts, spring washers, rivets
2. Auto Parts: Chassis fittings, gears, pins, stamping hardware
3. Bearings: Bearing balls, needles, bearing rings
4. Springs: Compression springs, tension springs, leaf springs
5. Hardware: Screwdrivers, chains, stamping parts, copper & aluminum fittings
6. Powder metallurgy parts, small mold accessories

Q1: What’s the difference between mesh belt temper furnace & box temper furnace?
A: Mesh belt furnace supports continuous automatic production, no manual loading/unloading, high hourly output, perfect for mass fastener factory. Box furnace is batch type, low efficiency for large volume orders.

Q2: Can I match this temper furnace with your mesh belt quenching line?
A: Yes, we supply full set heat treatment line including feeding machine, washing tank, hardening furnace, oil quenching tank & temper furnace, integrated PLC unified control.

Q3: Is the mesh belt easy to replace? How long its service life?
A: SUS310S mesh belt service life 8000~12000 working hours, quick replacement without disassembling furnace body, simple maintenance.

Q4: Can you customize furnace size for my small workshop?
A: We support mini to large industrial models, design compact small capacity furnace for small factory.
