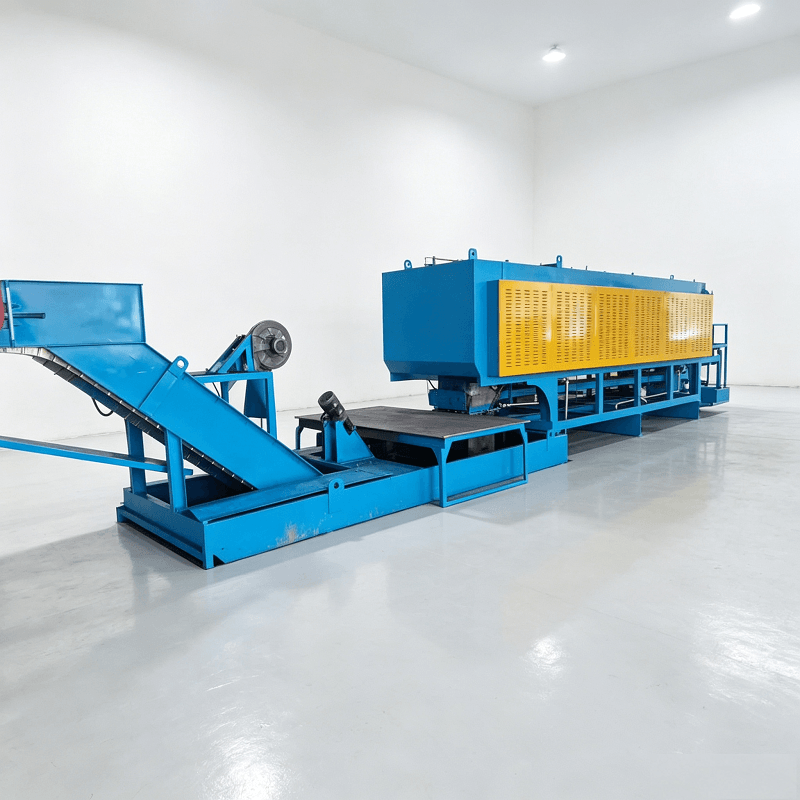

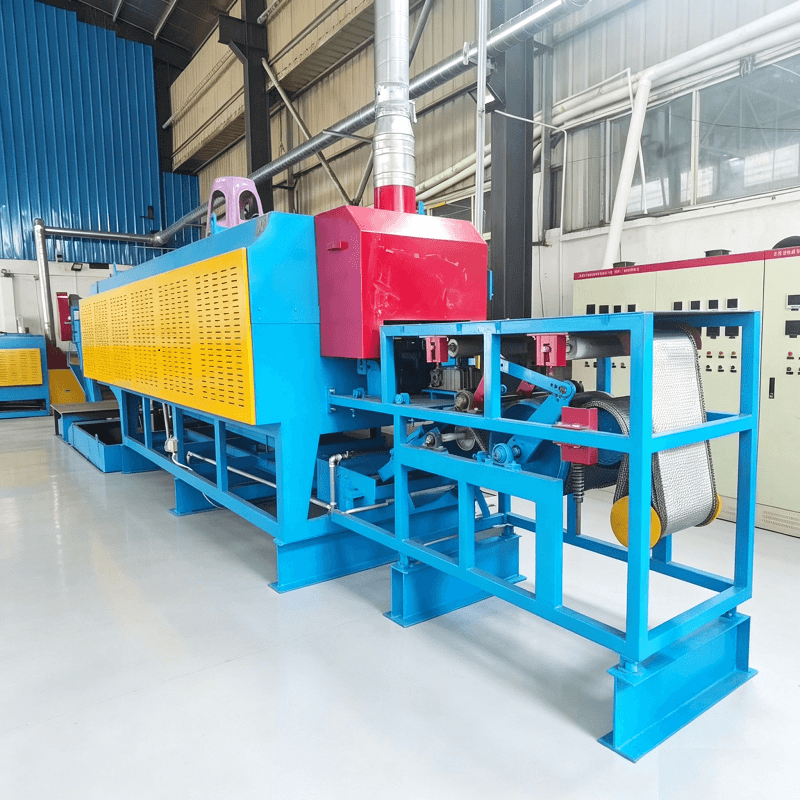

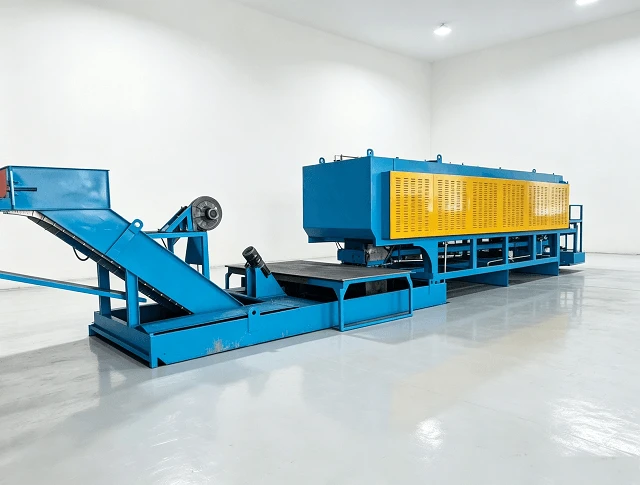

Mesh‑Belt Continuous Oil Quenching Hardening Furnace for Carbon & Alloy Steel Fastener Heat‑Treatmen

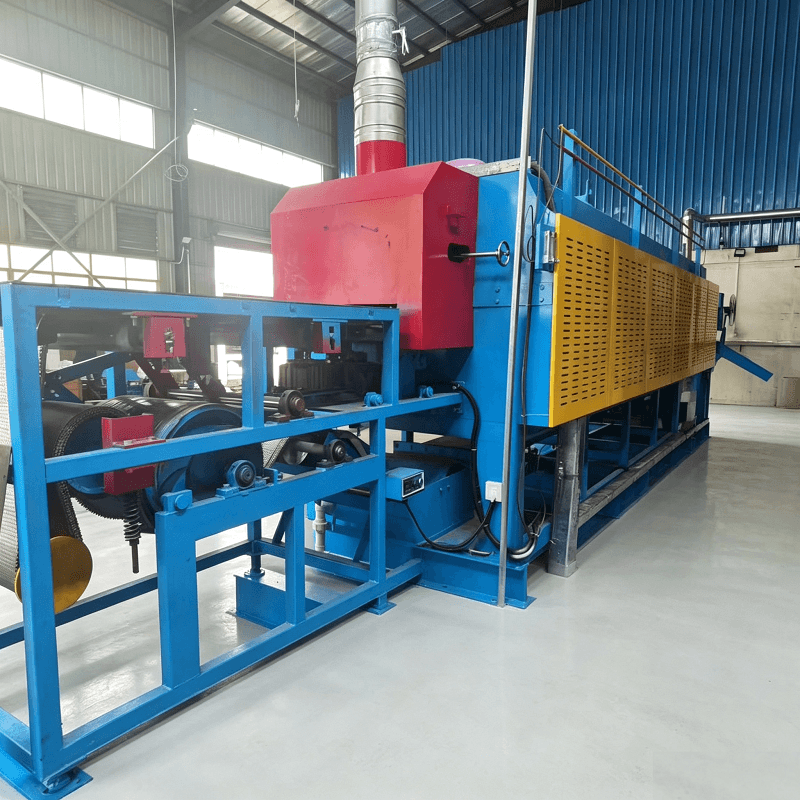

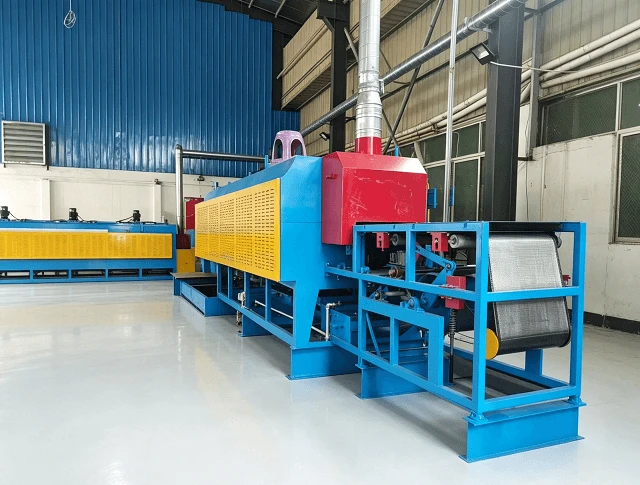

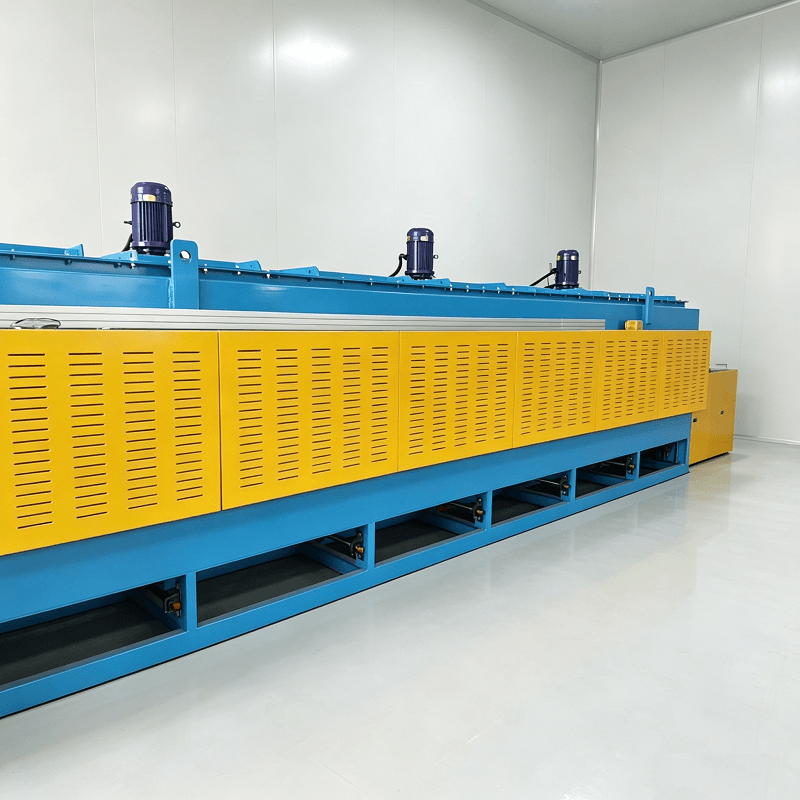

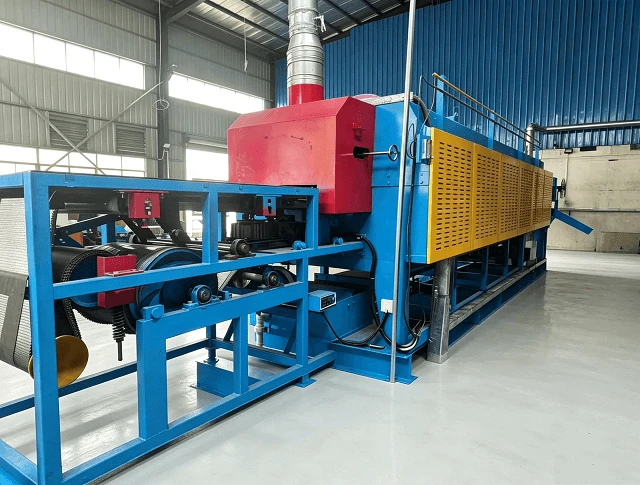

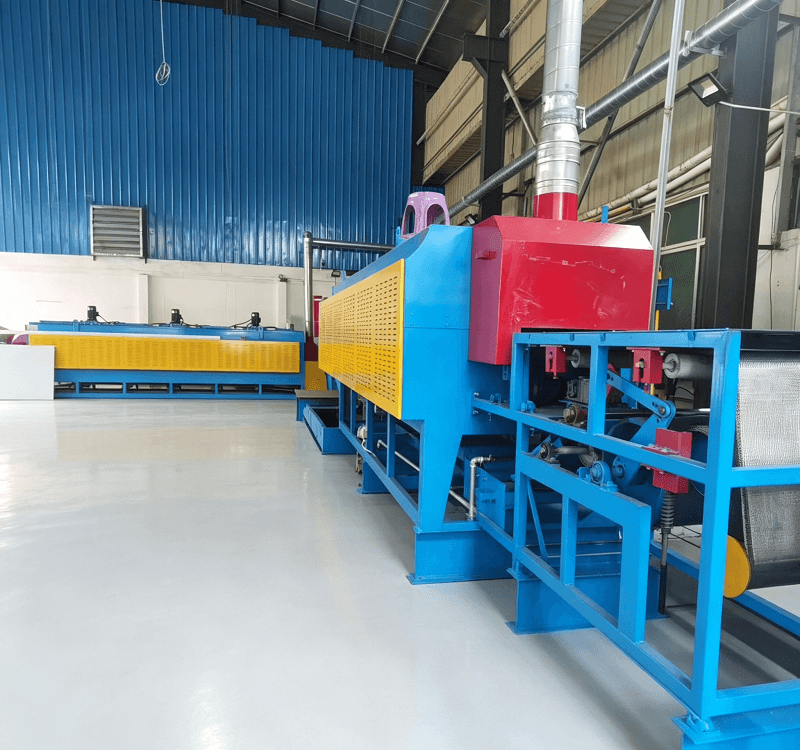

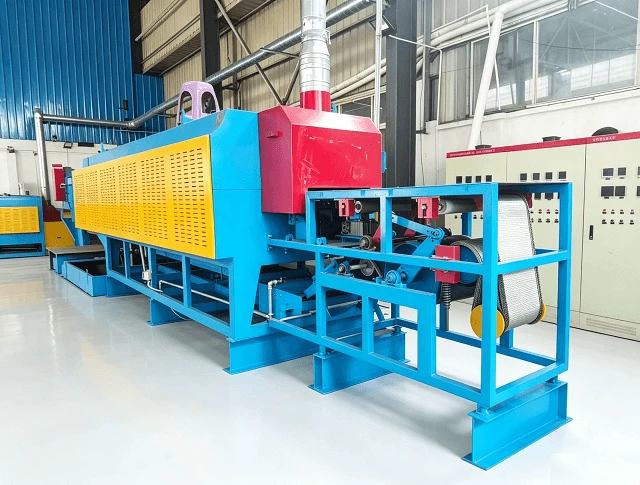

The mesh‑belt oil quenching furnace is a fully‑automatic continuous heat‑treatment system integrating feeding, heating, oil quenching and material transfer in one production cycle. It is widely deployed for hardening of fasteners, springs, stamped components and other small‑size metallic parts made of carbon steel and alloy steel.

When paired with a mesh‑belt tempering furnace, the unit forms a complete continuous quenching‑tempering production line, eliminating intermediate manual handling, minimizing human error and ensuring consistent part quality for large‑batch industrial manufacturing. Protective atmosphere option is available to reduce surface oxidation and decarburization.

1.Superior Quenching Consistency Precision multi‑zone temperature control maintains excellent chamber temperature uniformity, delivering repeatable hardness across batches and lowering scrap rates.

2.Uninterrupted Mass Production Durable heat‑resistant mesh‑belt conveyor enables 24‑hour non‑stop continuous operation, greatly improving throughput for high‑volume component manufacturing.

3.Modular & Service‑Friendly Structure Modular mechanical layout facilitates routine inspection, mesh‑belt replacement, internal chamber cleaning and component overhaul, shortening equipment downtime.

4.Robust Industrial Control System Independent temperature‑control loops with over‑temperature alarm and fault self‑diagnosis function; optional PLC+HMI touch‑screen for recipe storage, production data logging and status monitoring.

5.High Configuration Flexibility Customizable mesh‑belt width, heating zones, quenching tank capacity and auxiliary modules to match workpiece dimensions, material grades and required hourly output.

6.Optimized Operational Cost Thermal‑insulation optimized furnace lining reduces heat loss. Matched oil circulation cooling system stabilizes quenching‑oil temperature and extends oil service life.

1.Fastener industry: Screws, bolts, nuts, rivets, self‑tapping parts

2.Elastic components: Compression springs, tension springs, spring washers

3.Automotive small metal stamped parts

4.General hardware & machinery components

5.Powder‑metallurgy parts hardening treatment

Q1: Can this furnace be connected inline with a mesh‑belt tempering furnace for full quenching‑tempering production?

A: Yes. Mechanical docking design supports direct inline connection with mesh‑belt tempering furnace to achieve fully automatic continuous quenching and tempering workflow without manual transfer.

Q2: What steel grades are suitable for this mesh‑belt oil quenching furnace?

A: Mainly for carbon steel and low‑alloy steel, e.g. 45#, 40Cr, 65Mn. We adjust furnace configuration according to your actual material and target hardness requirement.

Q3: What maximum size of workpiece can be processed?

A: Designed for small‑to‑medium bulk parts. Maximum workpiece dimension is limited by mesh‑belt width and furnace chamber height. Non‑standard modification is acceptable upon workpiece samples or drawings.

Q4: How is quenching‑oil temperature kept stable during long‑time continuous production?

A: Optional independent oil cooling circulation unit keeps quenching‑oil temperature within reasonable range. Automatic oil skimmer removes surface carbon residue to maintain quenching performance and prolong oil service life.

Q5: What control options can I select?

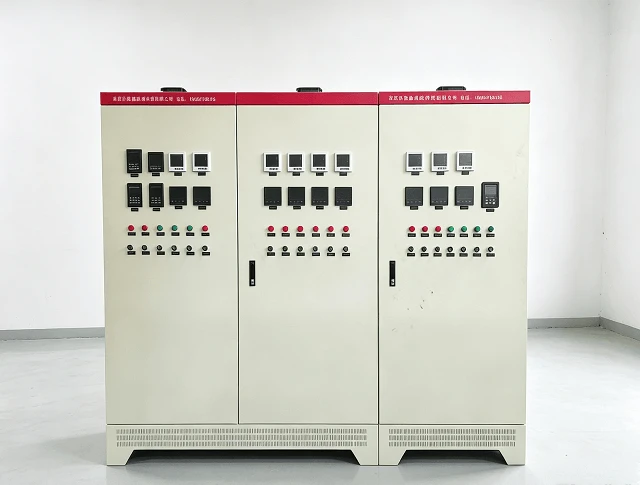

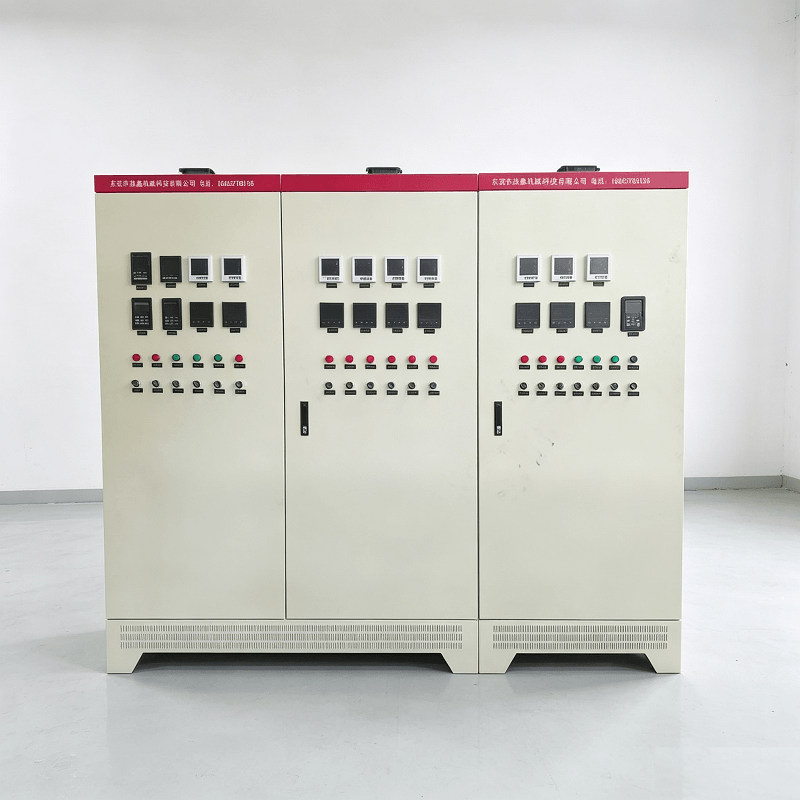

A: Standard version adopts multi‑zone digital temperature controllers. Upgrade to PLC + touch‑screen is available for recipe saving, historical production‑data record, fault alarm and remote monitoring interface.

Q6: Do you provide overseas installation, commissioning and training?

A: We supply detailed English operation manuals. Overseas on‑site technical guidance for installation & commissioning, as well as operator training are available. Long‑term remote technical support is provided.

Q7: What is the typical production lead‑time?

A: Standard configuration: 45‑60 working days. Custom‑engineered units will get confirmed lead‑time after technical specification review.

Q8: What preventive maintenance work needs to be done regularly?

A: Periodic inspection includes mesh‑belt wear check, heating element condition, quenching‑oil quality testing, sealing components replacement and temperature‑controller calibration. We will deliver a complete maintenance checklist together with the equipment.

Q9: Can you make quotation according to my required hourly capacity?

A: Sure. Please provide key information including material type, workpiece size, required kg/h output and whether inline tempering line is needed, so we can offer accurate technical proposal and commercial quotation.
