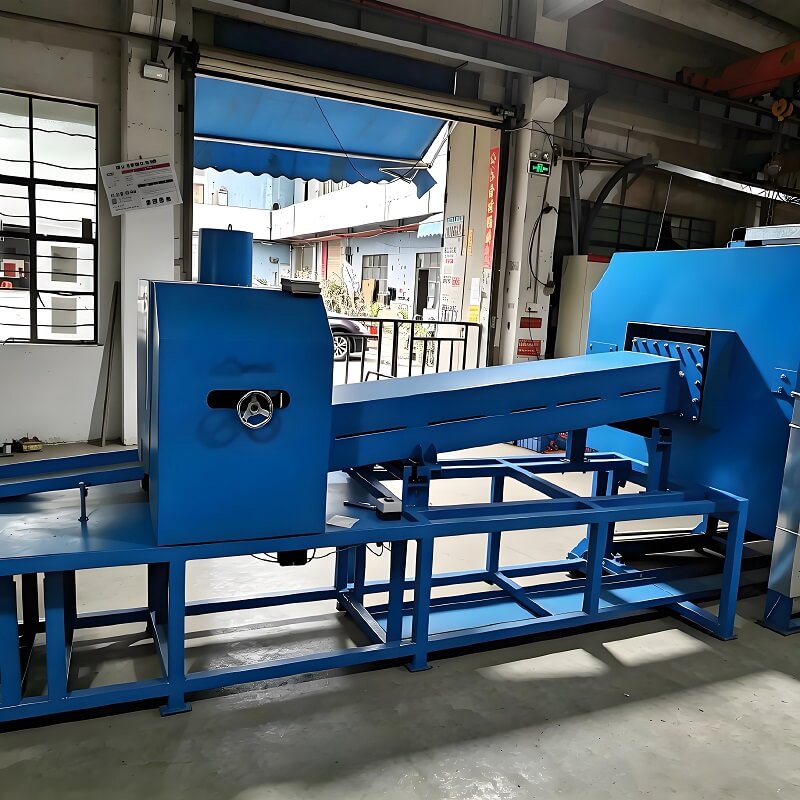

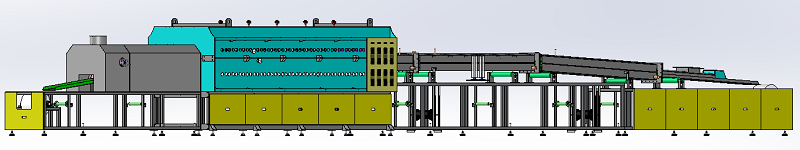

Energy Saving Continuous Bright Heat Treatment Furnace for Brass Stainless Steel Kitchenware

The bright annealing brazing furnace is an integrated fully automatic protective atmosphere heat treatment equipment, which completes brazing and bright stress relief annealing synchronously in one production line. Adopting sealed muffle structure with ammonia decomposed H2/N2 mixed reducing atmosphere or high vacuum environment, it isolates air oxidation throughout the whole process. Hydrogen reduces oxide layers on workpieces at high temperature, maintaining mirror bright metallic finish without discoloration, oxidation or decarburization. It eliminates secondary annealing, pickling and polishing procedures, simplifying production processes and cutting comprehensive costs. Widely suitable for precision batch processing of parts in refrigeration, automotive, hardware, electronics, medical and aerospace industries, it is a core environmentally friendly and high-efficiency heat treatment equipment.

Bright anti-oxidation principle: The furnace is equipped with a thickened high-temperature resistant stainless steel muffle tank, filled with purified reducing protective atmosphere to ensure zero oxygen in the sealed cavity. High-temperature hydrogen completely removes oxide layers such as iron oxide and chromium oxide on workpiece surfaces. Continuous atmosphere protection during cooling prevents secondary oxidation and retains the original bright metal finish. 2. Dual-process integration principle: The constant temperature zone accurately meets dual process standards. The temperature of 850-1080℃ melts copper and silver filler metals to form dense metallurgical brazing joints via capillary action. Meanwhile, the high-temperature holding stage completes metal recrystallization, eliminates residual stress caused by stamping and machining, and realizes bright annealing of base materials, finishing welding and heat treatment in one single pass.

1. Continuous Mesh Belt Type

Adopts 310S high-temperature resistant stainless steel mesh belt for continuous conveying, supporting 24-hour non-stop automatic production. It adopts low-cost ammonia decomposed H2/N2 mixed protective atmosphere with stable capacity and simple operation & maintenance. Ideal for mass production of standard small and medium-sized metal parts, it is the first choice for small and medium-sized manufacturing factories. Main applications: refrigeration equipment, auto components, kitchen hardware, electronic copper parts.

2. Vacuum Batch Type

Adopts high-vacuum sealed furnace chamber design with ultra-high cleanliness and zero pollution. It supports independent programmable process curves for each batch, perfectly meeting the processing requirements of high-end precision alloy parts. Featuring ultra-high surface accuracy, pollution-free and excellent stability, it is specially designed for high-precision heat treatment scenarios. Main applications: medical devices, aerospace parts, titanium alloys, cemented carbide, precision hydraulic components.

1. Degreasing & Drying Zone: Remove stamping oil and cutting grease to avoid carbon residue and workpiece blackening

2. Air & Water Double Sealing Chamber: Completely block oxygen backflow and eliminate oxidation sources

3. Gradient Preheating Zone: Gradual temperature rise reduces thermal shock and evaporates residual moisture

4. Multi-zone Constant Temperature Heating Zone: Independent PID temperature control, temperature uniformity ±2℃, meeting brazing and annealing requirements simultaneously

5. Sealed Atmosphere Cooling Zone: Slow cooling under protective atmosphere to prevent secondary oxidation and workpiece deformation

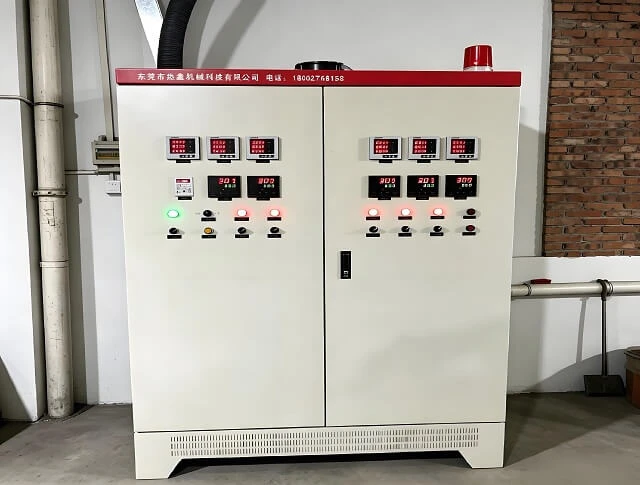

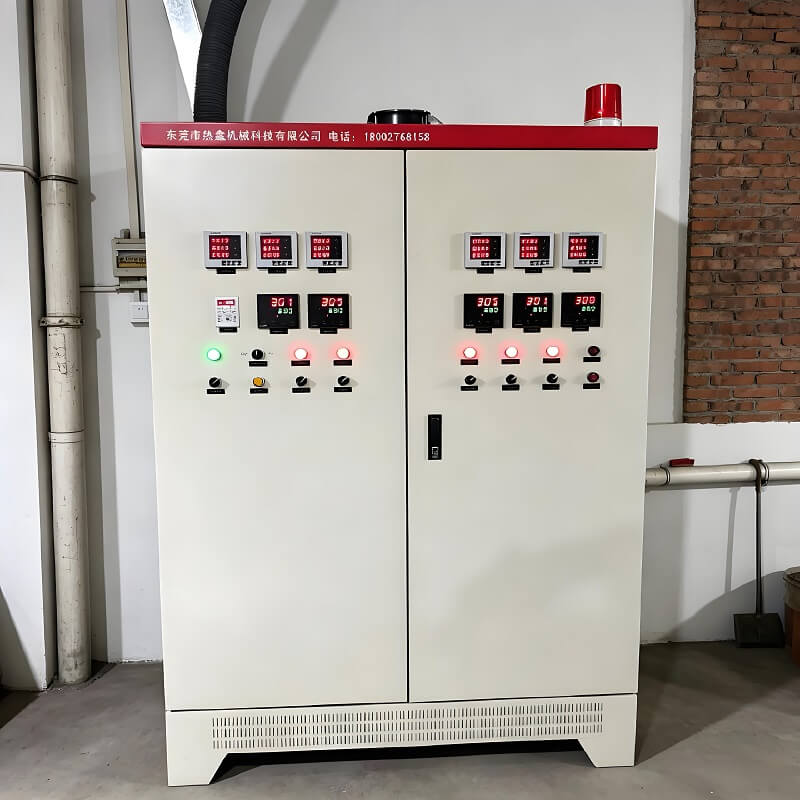

6. Complete Auxiliary System: Ammonia decomposition gas generator, PLC intelligent control, frequency conversion transmission, circulating water cooling, gas leakage alarm and over-temperature safety protection system

Loading → Degreasing & Hot Air Drying → Air Seal Feeding → Gradient Preheating → High-Temp Brazing & Bright Annealing Holding → Sealed Atmosphere Slow Cooling → Water Cooling → Bright Finished Workpieces Discharging

1. Integrated Dual Process, Cost Saving

Integrated dual processes of brazing and annealing replace two separate equipment sets. It eliminates pickling, polishing and secondary heat treatment procedures, reducing equipment investment, workshop space, labor and energy costs by more than 30%. It simplifies production flow and greatly improves delivery efficiency.

2. Mirror Bright Surface, Eco-Friendly

Full-process atmosphere/vacuum sealed protection ensures mirror bright workpiece surface without oxidation, discoloration and decarburization, ready for direct assembly. No pickling process and zero acid wastewater pollution, fully compliant with EU environmental standards for high-end export orders.

3. High Precision & Low Defect Rate

Multi-zone independent PID precise temperature control ensures furnace temperature uniformity within ±2℃, realizing uniform brazing welds and thorough stress relief. The gradient heating and sealed slow cooling structure effectively avoid thermal deformation, false welding and cracking, keeping product pass rate above 99%.

4. Full Automatic & Labor-Saving

Equipped with PLC touch screen intelligent control system, which can store hundreds of mature process recipes. The mesh belt speed, atmosphere, temperature and pressure are fully automatically adjusted in closed loop. Only one operator is required for the whole line, supporting 24-hour uninterrupted mass production and compatible with factory MES intelligent management system.

5. Durable & Low Maintenance

The furnace chamber is made of thickened 310S high-temperature resistant stainless steel, featuring corrosion resistance, high temperature resistance and long service life. The detachable heating elements realize low failure rate and convenient maintenance. The supporting ammonia decomposition system has high gas utilization rate and lower energy consumption, with obvious long-term operation cost advantages.

6. Customizable & Complete Export Support

Customizable furnace size, equipment power and temperature range according to customers' workshop size, capacity demand and product specifications, and adaptive to overseas 380V/415V 50/60Hz voltage. We provide complete CE and ISO certificates, as well as one-stop export services including overseas on-site installation, commissioning and technical training.

1. HVAC & Refrigeration Industry

Products: Plate heat exchanger, evaporator, condenser, compressor pipeline, refrigeration stainless steel joints

Materials: 304/316 stainless steel, red copper, brass

2. Automotive Parts Industry

Products: Oil cooler, transmission cooler, fuel filter, EGR cooler, turbo heat dissipation parts, auto valve components

Materials: Low carbon steel, stainless steel, copper-steel composite, powder metallurgy parts

3. Kitchen Hardware & Daily Products

Products: Stainless steel vacuum flask, kettle, kitchen cutlery, faucet valve, water pipe fittings, gas burner parts

Materials: 304/430 stainless steel, brass, red copper

4. Electronics & Communication Industry

Products: Magnetron, RF communication components, copper busbar, sensor housing, electronic stamping connectors

Materials: Oxygen-free copper, stainless steel, nickel alloy

5. Powder Metallurgy Industry

Products: PM bearings, gears, hydraulic valve cores, auto powder metallurgy structural parts, oil-impregnated bearings

6. Medical & Aerospace Industry

Products: Medical stainless steel instruments, minimally invasive device parts, aerospace heat dissipation components, titanium alloy pipelines, precision hydraulic valves

Recommended Equipment: High vacuum bright annealing brazing furnace

7. Hydraulic & Pipeline Industry

Products: Stainless steel hydraulic valves, high-pressure pipe connectors, pneumatic components, water heating valve fitting
