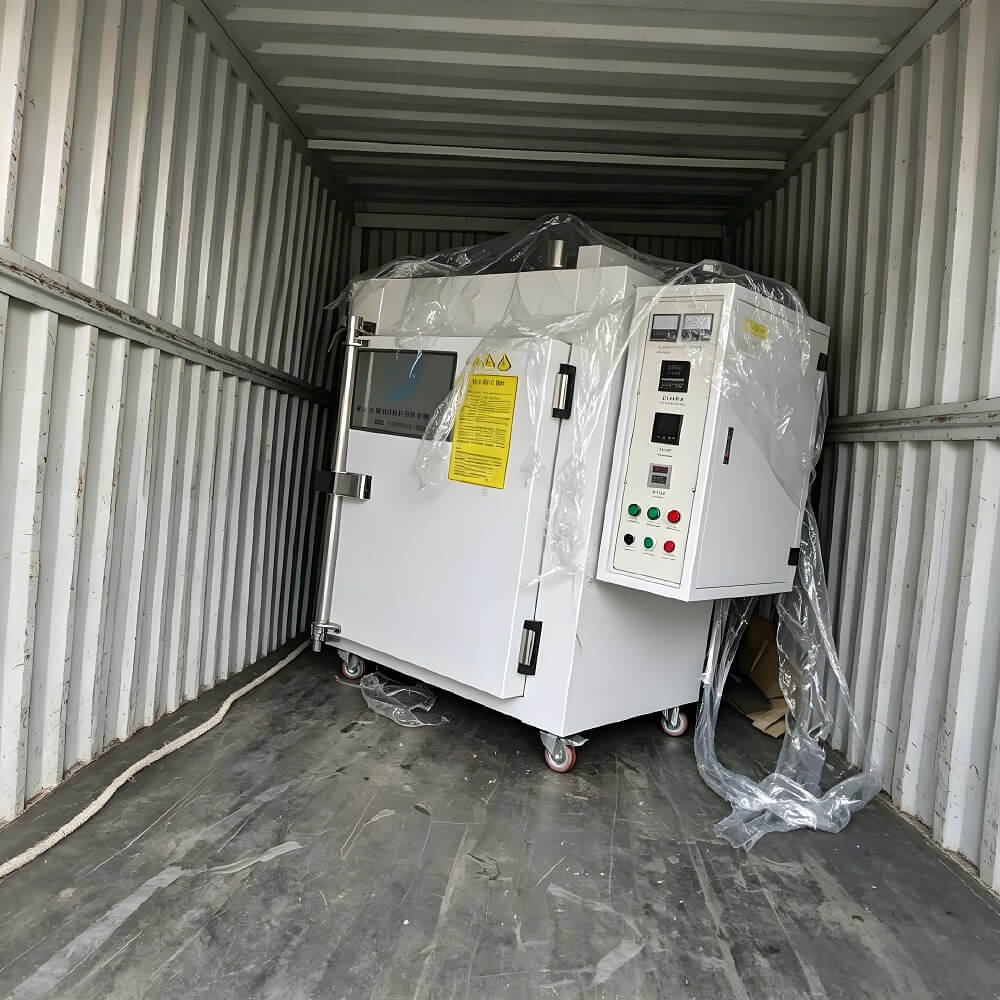

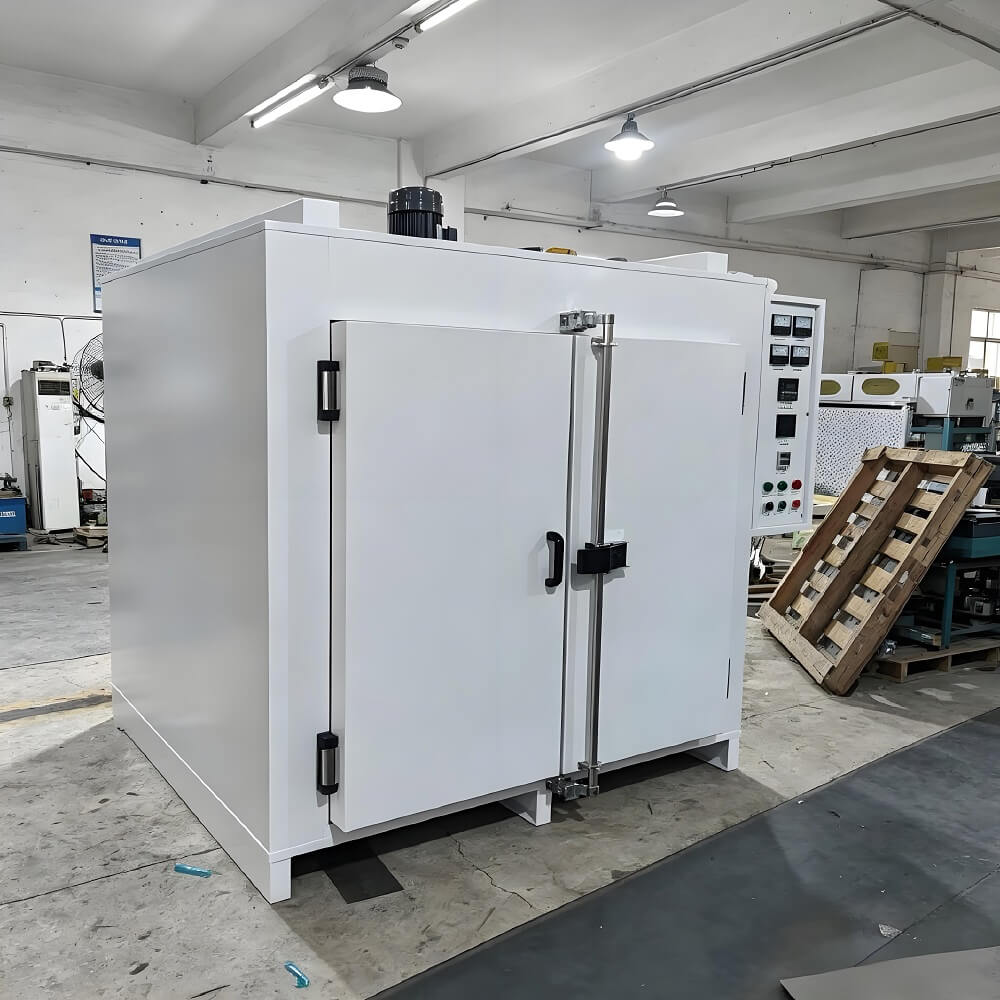

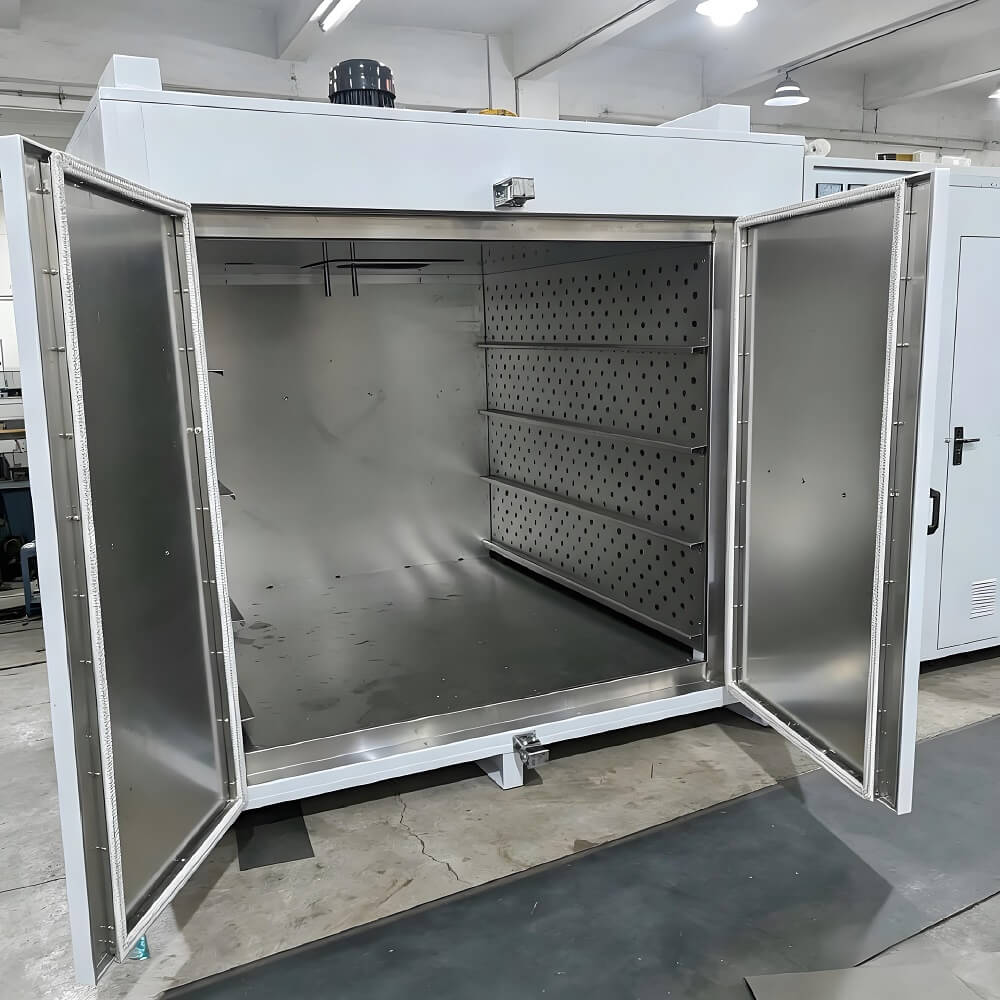

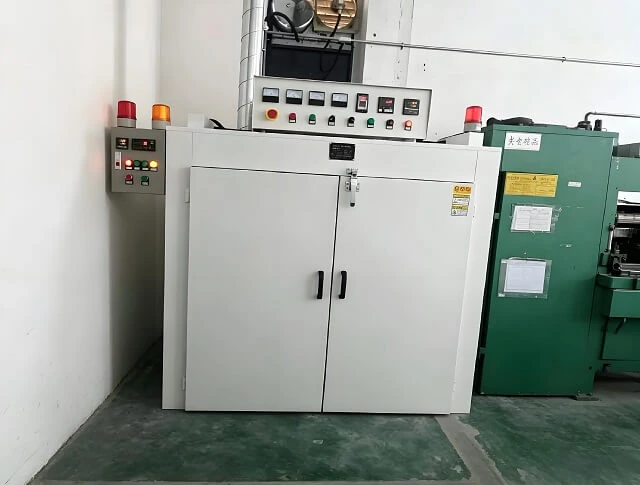

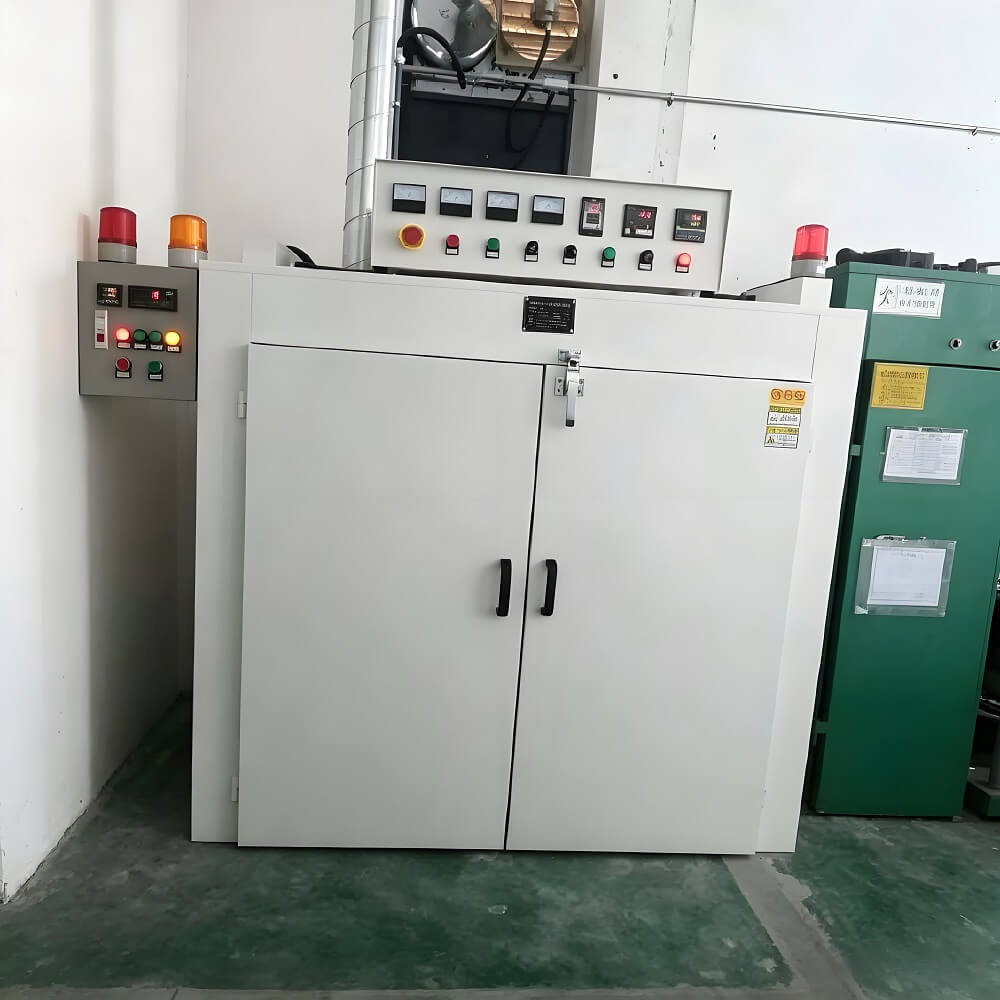

YD-TC-120 Wholesale industrial low temperature oven supplier

This system employs a high-temperature vertical motor-driven internal air circulation mechanism with horizontal airflow circulation from left to right. The air source is generated by a circulation blower motor that drives the impeller through the heater, delivering hot air into the oven chamber via air ducts. The used air is then drawn back into the ducts to serve as the air source for the next cycle, where it is reheated and reused. This ensures uniform temperature distribution within the chamber. When temperature fluctuations occur due to opening or closing the door, the heating control system rapidly restores the operating state until the set temperature is reached. This equipment features high temperature control accuracy, simple operation, energy efficiency, and safety and reliability.

It is widely used in industries such as electronics, electromechanical, telecommunications, electroplating, plastics, hardware and chemicals, instruments, printing, pharmaceuticals, PCBs, powders, impregnation, spraying, glass, woodworking, and building materials for precision baking, drying, tempering, preheating, setting, and processing.

1. Equipped with a touchscreen smart programmable temperature controller featuring automatic PID parameter tuning and solid-state relays for contactless continuous power adjustment. Once process parameters are set, the system automatically completes the entire curing and drying process, ensuring simple operation and stable, reliable performance.

2. The system utilizes high-quality electrical control components from renowned domestic and international manufacturers, such as Chint, ensuring optimal reliability of the equipment’s electrical control system.

3. Equipped with an over-temperature alarm protection system, the unit automatically cuts off the heating power and triggers audible and visual alarms when the internal temperature becomes abnormal, effectively

protecting both the products and the equipment.

4. Features a more rational hot air circulation design tailored to the products, ensuring more uniform temperature distribution within the curing oven and more consistent product curing, resulting in superior curing results.

5. The heating elements utilize low-load SUS304 stainless steel heating tubes, which are oxidation-resistant, offer stable performance, and have a long service life.

6. Upon completion of the production process, the system can be configured to activate either a manual alarm notification or an automatic shutdown function.

7. The insulation material consists of high-quality ceramic fiber wool with a low thermal conductivity coefficient, resulting in significant energy savings.

1. Equipment Composition

2. Performance Technical Specifications
