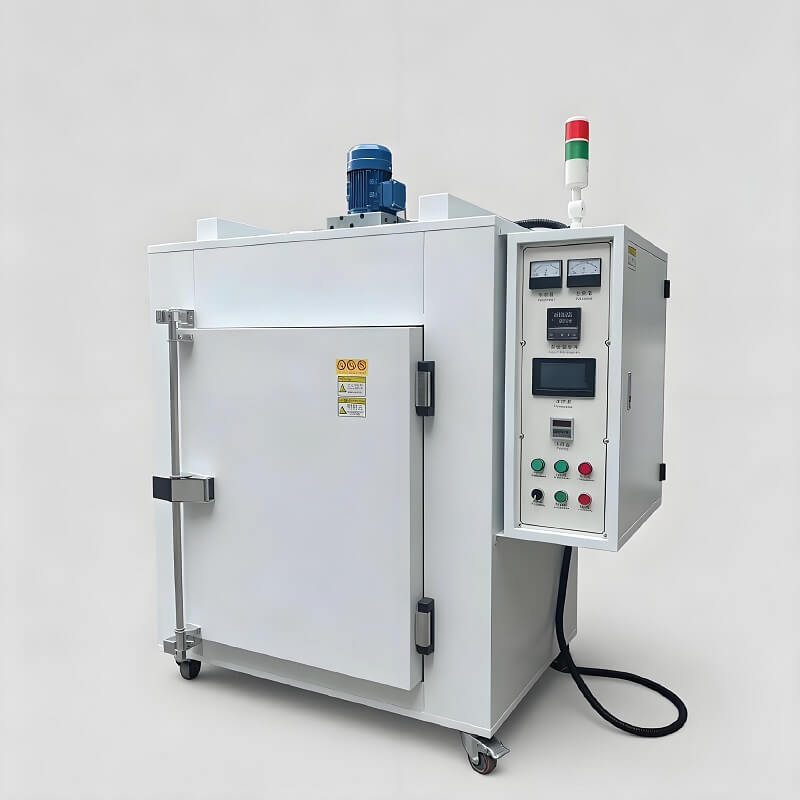

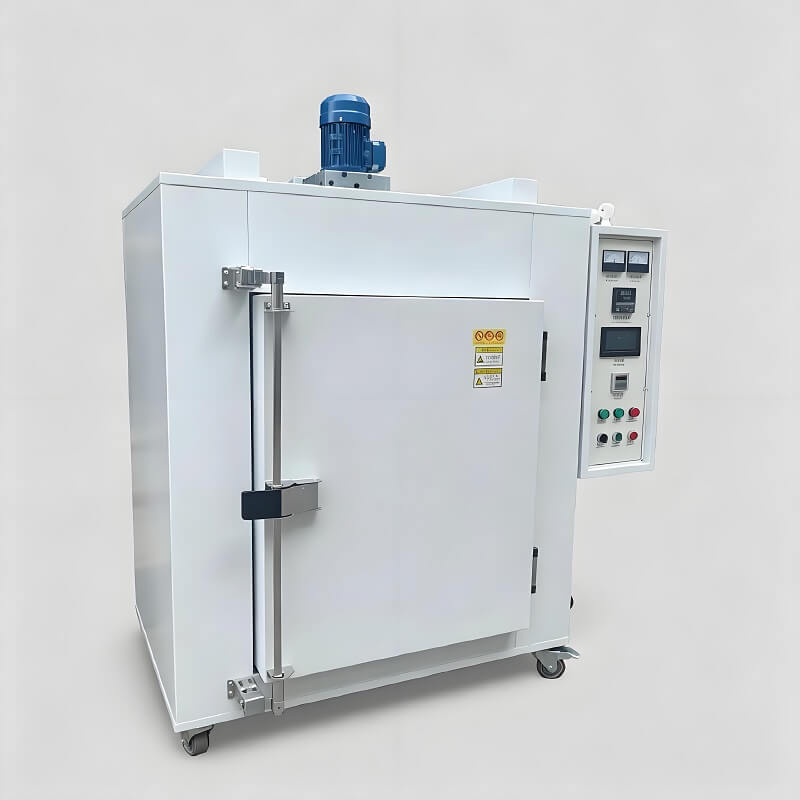

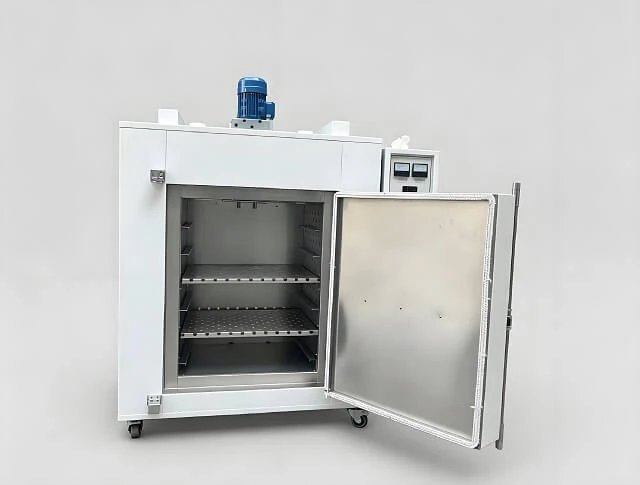

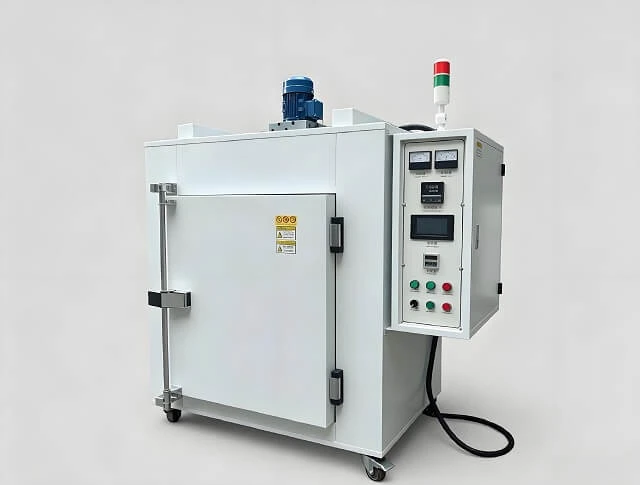

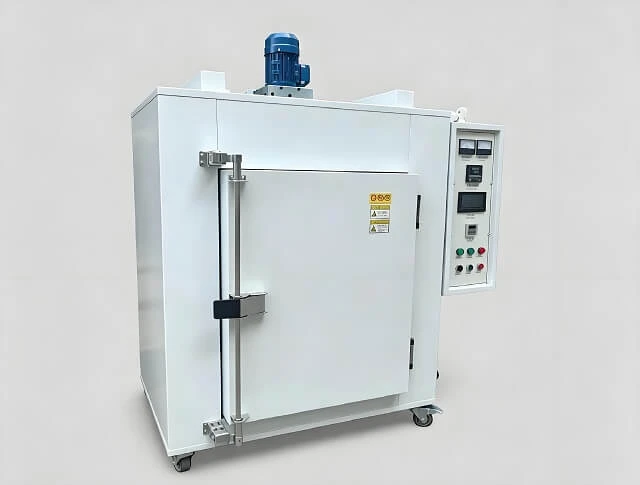

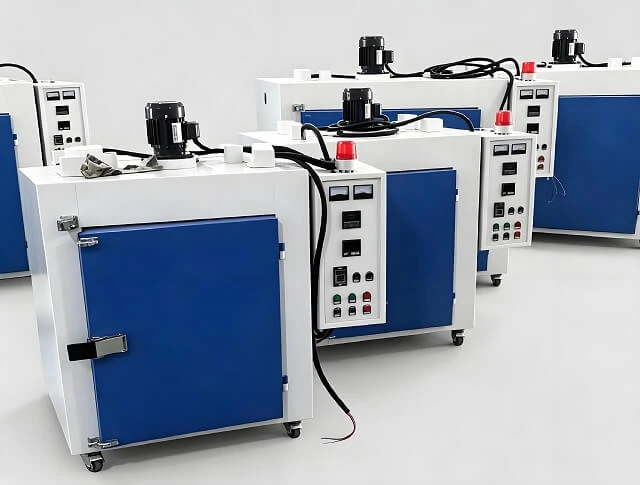

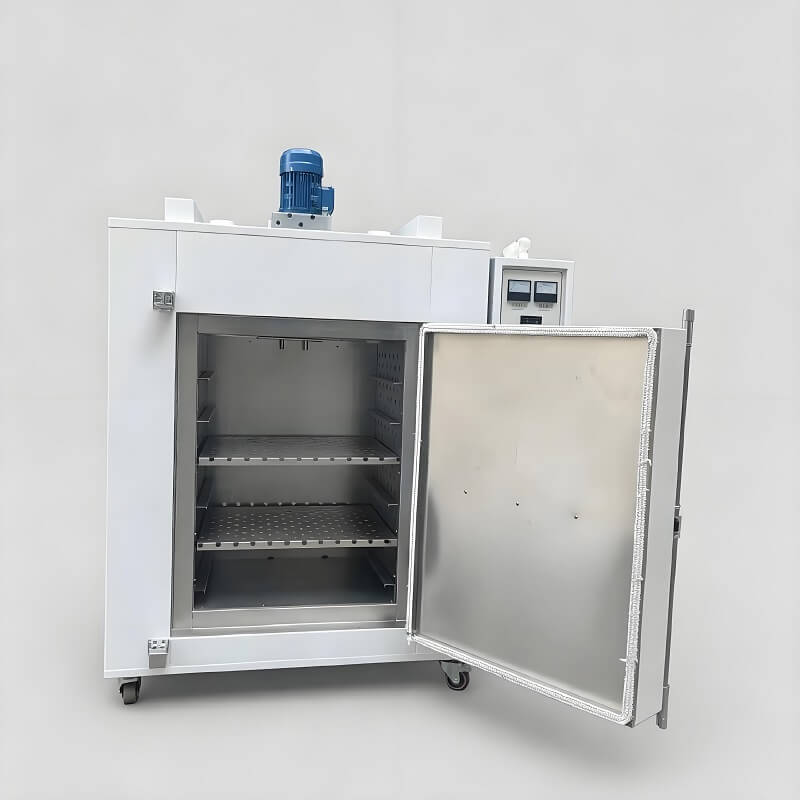

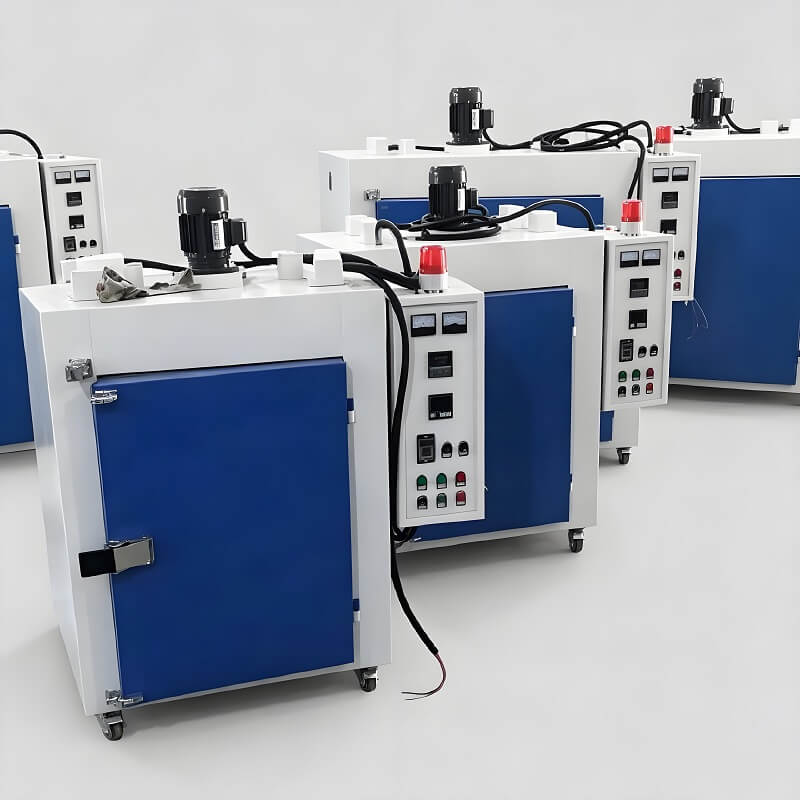

Industrial Low Temperature Oven RT-200°C Stainless Steel Drying Oven Manufacturer

What is Low Temperature Industrial Oven?

Low temperature industrial oven is a precision box-type heat treatment & drying equipment with working temperature range from room temperature to 200°C. Different from high-temperature sintering or quenching furnaces, it features uniform low-temperature hot air circulation, stable ±1~2℃ temperature uniformity, designed for drying, curing, aging, dehumidification and stress relief of temperature-sensitive workpieces.

Our low temperature oven adopts full stainless steel inner chamber, PLC intelligent temperature control system and sealed heat insulation structure. Custom chamber size, trolley, layered tray and explosion-proof structure are available for electronics, plastic, hardware, chemical, automotive and food processing industries. As a professional China furnace factory, we support non-standard OEM & ODM manufacturing for global industrial buyers.

1.Built-in high-speed circulation fan drives hot air to evenly fill the inner chamber;

2.PID intelligent thermostat automatically adjusts heating power to keep constant low temperature without overheating;

3.Multi-layer thermal insulation cotton reduces heat loss, cuts energy consumption by 25%;

4.Sealed silicone door strip isolates cold air to avoid temperature fluctuation, guarantee consistent drying effect on all batches of parts.

1.Precise Low Temperature Control Working temp: RT~200℃, temperature accuracy ±1℃, uniform heating, no local overheating for fragile materials.

2.Durable Corrosion-Resistant Structure Inner tank full SUS304 stainless steel, outer cold rolled steel with anti-rust paint; thick high-density insulation layer, long service life.

3.Intelligent PLC Control System Touch screen operation, programmable heating curve, timing auto shut-off, over-temperature alarm, 3-color warning light for real-time machine status.

4.Customizable Internal Structure Optional multi-layer perforated trays, mobile trolley, blast circulation system, explosion-proof design for flammable raw materials.

5.Energy Saving & Safe Operation Low power heating tubes, heat recycling design; overheat, over-current and leakage double protection, CE certified for global export.

6.Full Customization Support Adjust chamber volume, door style, heating power, voltage (220V/380V/415V) to match your workshop production demand.

1.Electronic industry: PCB board drying, electronic component aging, plastic shell dehumidification

2.Hardware & automotive: Metal parts degreasing drying, rubber parts curing, plastic mold stress relief

3.Chemical & new material: Resin curing, powder coating low-temperature baking, adhesive drying

4.Packaging & printing: Ink curing, plastic film drying

5.Medical & food: Raw material low-temperature dehydration, packaging sterilization

6.Laboratory: Small sample constant temperature aging test

1.Manufacturer Direct Supply: We are a 2008-established industrial furnace factory, no middleman, competitive ex-factory price;

2.Strict Quality Inspection: Every oven undergoes 72-hour constant temperature aging test before delivery, stable long-term operation;

3.Global After-Sales Support: English operation manual, remote video guidance, overseas installation service, lifelong spare parts supply;

4.CE & ISO Certification: All equipment meets EU export standards, smooth customs clearance for Europe, Southeast Asia, America;

5.One-Stop Heat Treatment Solution: We also produce high-temperature furnaces, mesh belt lines, vacuum furnaces, tempering & brazing furnaces to match your full production line.

Q1: What’s the difference between low temperature oven and high temperature furnace?

A: Low temperature oven max temp is 200℃, for drying/curing temperature-sensitive parts; high temperature furnaces work above 500℃ for metal sintering, quenching and annealing.

Q2: Can I customize the inner size of the low temp oven?

A: Yes, we fully support OEM non-standard customization, we design chamber volume, trays and power according to your workpiece size and daily output.

Q3: Is this machine suitable for flammable chemical materials?

A: We provide explosion-proof low temperature oven with sealed exhaust and anti-spark heating components for flammable raw material processing.

Q4: What voltage do your ovens support for overseas factories?

A: We can adjust to 220V single-phase, 380V/415V three-phase, 50/60Hz to match local power grid in different countries.

Q5: Do you offer free sample testing service?

A: Yes, send your workpiece and processing requirement, we provide free low-temperature drying test and process report for your reference.
