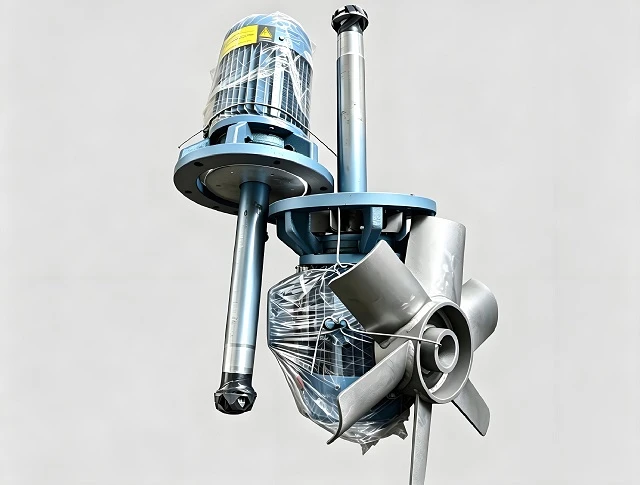

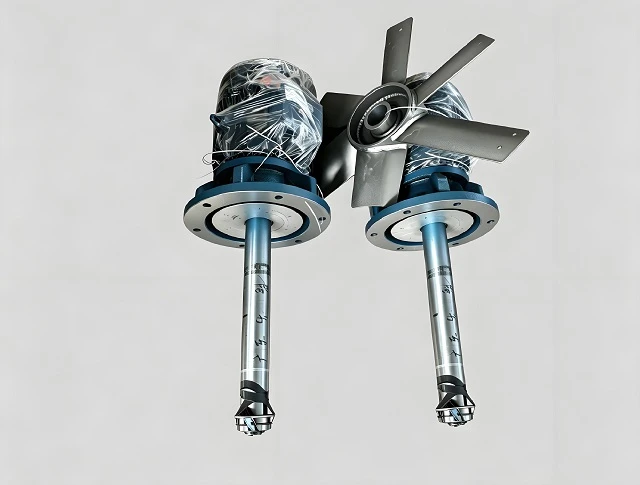

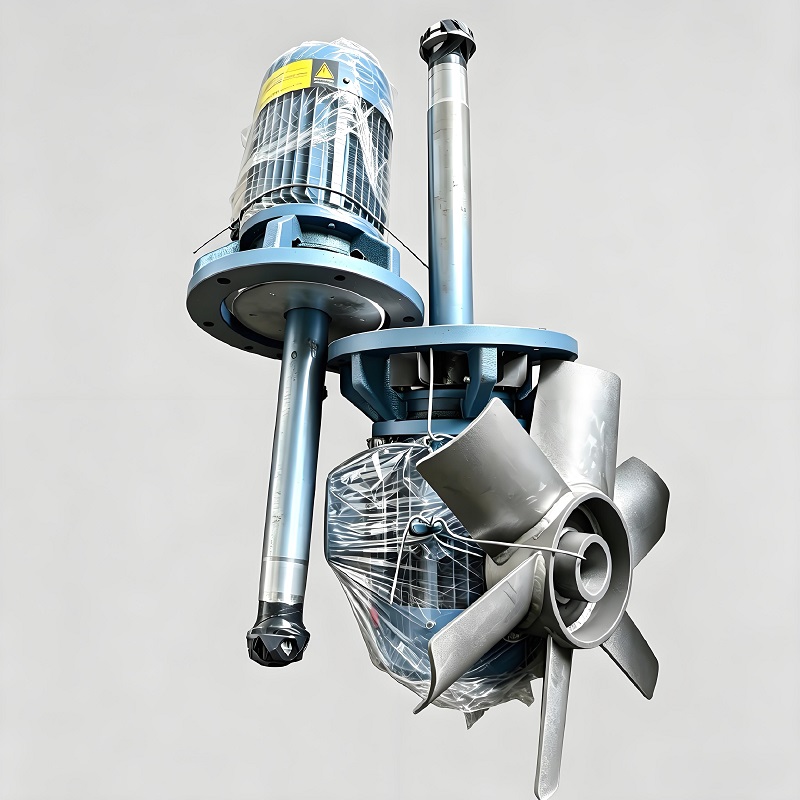

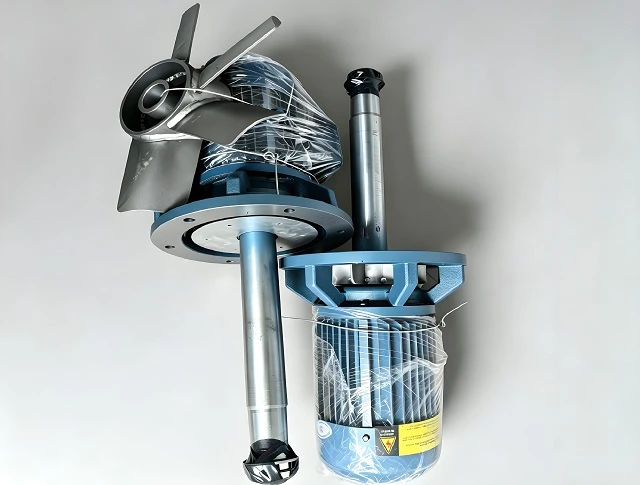

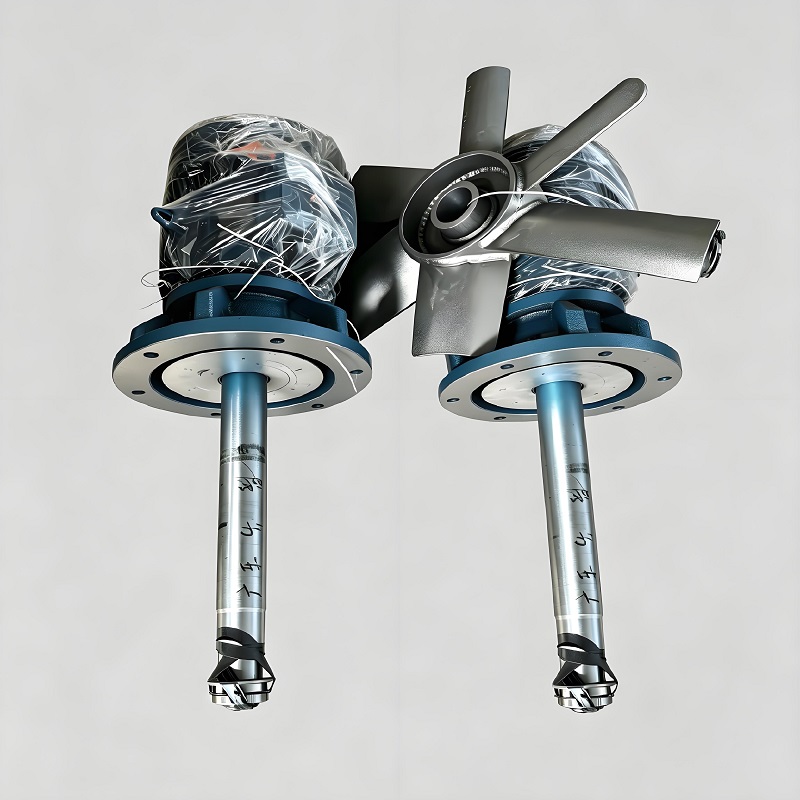

Custom Stainless Steel Impeller Furnace Circulation Fan for Fastener Production Line

This customized circulation fan is developed for clean, anti-corrosion heat treatment environments. The whole impeller is fully welded SUS304 stainless steel, solving the rust, oxidation and metal particle shedding problems of ordinary iron fans when processing aluminum alloy, stainless steel bright parts and clean heat treatment products. We support full non-standard customization: shaft length, flange size, blade quantity and motor power can be adjusted according to customer furnace internal space, temperature curve and clean production requirements. Widely matched with aluminum continuous brazing furnaces, no-oxidation bright annealing lines and new energy component heat treatment ovens.

The stainless steel impeller rotates to drive hot air circulation inside sealed atmosphere furnace. SUS304 material maintains stable structure under high temperature nitrogen/hydrogen protective atmosphere, will not rust or produce impurity powder. Uniform hot air circulation eliminates local overheating of thin-wall aluminum parts, ensures consistent brazing & annealing effect without surface discoloration and impurity spots. All customized sizes match customers’ non-standard furnace workshop layout.

1. High temperature resistant motor: Special vertical motor with heat insulation coating, withstand long-term ambient temperature below 120℃ outside the furnace.

2. Cast iron fan base: Grey cast iron / ductile iron / stainless steel composite optional, heat insulation interlayer design to isolate furnace high temperature.

3. Stainless steel drive shaft: 304 / 316 stainless steel lengthened shaft, customized length according to furnace wall thickness, wear-resistant & anti-oxidation.

4. Stainless steel stirring impeller: Multi-blade fan wheel with high air volume, integral casting or welding molding, high temperature resistant without deformation.

5. High temperature sealing assembly: Graphite packing and heat-resistant oil seal prevent hot gas leakage from furnace.

1. Grey cast iron fan base: Matches furnaces below 800℃, cost-effective for mass production.

2. Thickened ductile iron fan base: Suitable for 700~950℃ continuous high temperature furnaces, anti-thermal deformation.

3. Stainless steel composite fan base: For carburizing, nitriding atmosphere furnaces, anti-corrosion & anti-rust.

4. Impeller & drive shaft: 304 stainless steel for conventional furnaces; 316 stainless steel for corrosive atmosphere furnaces.

1. Aluminum alloy continuous brazing production line

2. New energy battery parts clean annealing furnace

3. Stainless steel bright non-oxidation annealing mesh belt furnace

4. Precision electronic component aging oven

5. Food hardware high-temperature cleaning furnace

6. Corrosive atmosphere heat treatment equipment

1. Full SUS304 Stainless Steel Impeller Anti-high temperature oxidation, acid & moisture corrosion. No iron oxide powder falling into furnace cavity, guarantee bright clean surface of aluminum, copper and stainless steel finished workpieces.

2. Full Non-Standard Customization Service Customize shaft extension length, mounting flange, blade angle, air volume and pressure based on your furnace internal size, single-line or batch production mode. ODM/OEM support for special atmosphere furnaces.

3. Clean Airflow Without Metal Pollution Polished stainless steel blades avoid rust debris contamination, perfectly fit food-grade, new energy and precision electronic part heat treatment production standards.

4. Multi-Layer Heat Insulation Long Shaft Customizable extended isolation shaft separates motor from high temperature furnace chamber, prevent heat transfer burning motor under long-term high temperature working.

1. Impeller Material: SUS304 full stainless steel, argon arc seamless welding

2. Custom Range: Shaft length 150mm–1200mm, flange diameter customized

3. Max Working Temp: 380℃ continuous operation

4. Motor: All-copper high temperature resistant motor, optional explosion-proof type

5. Surface Treatment: Impeller pickling passivation, anti-rust permanent

6. Atmosphere Adaptable: Nitrogen, hydrogen, mixed protective atmosphere furnace

Q1: What production lines must use stainless steel impeller fans?

A: Production lines processing aluminum alloy, mirror stainless steel and clean precision parts. Ordinary iron impellers will oxidize and drop rust stains, causing workpiece surface scrapping.

Q2: Can I customize special shaft length for my non-standard furnace?

A: 100% support ODM customization. Our technical team designs exclusive shaft and flange size according to your furnace drawing without extra mold cost.
