Continuous Mesh Belt Salt Bath Furnace,Austempering Furnace Heat Treatment Line
The mesh belt salt bath furnace is typically combined with a mesh belt heating furnace, washing machine, etc., to form a mesh belt salt bath quenching heat treatment production line. It is a continuous heat treatment equipment used for austempering of small metal parts.
Factory price
OEM Service
After Sales Information
Continuous Mesh Belt Salt Bath Furnace
The mesh belt salt bath furnace is typically combined with a mesh belt heating furnace, washing machine, etc., to form a mesh belt salt bath quenching heat treatment production line. It is a continuous heat treatment equipment used for austempering of small metal parts.
Equipment Overview
The mesh belt salt bath quenching furnace production line mainly consists of the following units:
|
Unit |
Function Description |
| Mesh Belt Heating Furnace | Heats workpieces to austenitizing temperature (typically 830-860℃) |
|
Salt Bath Tank |
Contains molten nitrate salt, workpieces fall into it for austempering |
|
Washing Machine |
Cleans residual salt from workpiece surface after quenching |
Working Process: After being heated in the furnace, workpieces directly fall into the salt bath tank below, undergo isothermal transformation in the constant-temperature salt bath, and are finally automatically extracted by an elevator.
Main Applications
Mainly used for bainite austempering and martensite stepped quenching of small basic parts. Typical application parts include:
1.Bearing rings, rolling elements
2.Fasteners (bolts, nuts)
3.Automotive and motorcycle parts
4.Springs, chains, saw blades
5.Hardware tools, drill bits
6.Elastic devices with complex shapes requiring minimal deformation
Process Advantages
|
No. |
Advantage Description |
| 1 | Obtaining lower bainite – significantly enhances strength, hardness, toughness, and wear resistance of steel |
|
2 |
Minimal deformation – uniform cooling in salt bath, low thermal stress |
|
3 |
No tempering required – can be used directly after austempering, eliminating the tempering process |
|
4 |
Bright surface – molten salt isolates air, preventing oxidation |
Salt Bath Structural Features
The mesh belt salt bath has the following key technical design features:
|
Feature |
Description |
| Double-layer structure | Air duct formed between inner liner and outer tank for salt bath cooling, maintaining constant temperature |
|
Stirrer + salt pump |
Ensures uniform temperature within the salt bath and consistent workpiece cooling performance |
|
Atmosphere isolation device |
Isolation at the heating furnace drop chute prevents "salt vapor" from entering the furnace and corroding heat-resistant steel components |
|
Automatic salt concentration monitoring |
Washing water tank equipped with salt concentration monitoring device, can be configured with salt-water separator |
Technical Parameters Reference
| Parameter | Typical Value |
| Heating furnace operating temperature | 800-900℃ |
| Salt bath operating temperature | 280-320℃ (austempering), max 550℃ |
| Salt bath time | Typically 30-60 minutes |
| Nitrate salt composition | 45% NaNO₂ + 55% KNO₃ (melting point 137℃, operating range 150-500℃) |
| Salt bath volume | 6000-10000L (depending on model) |
| Washing water temperature | 30-45℃ |
Safety Warning: The operating temperature of nitrate salt must never exceed 500℃, otherwise combustion or even explosion may occur.

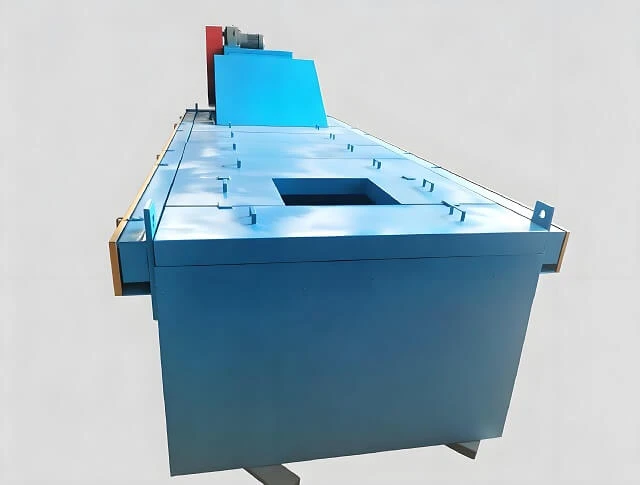

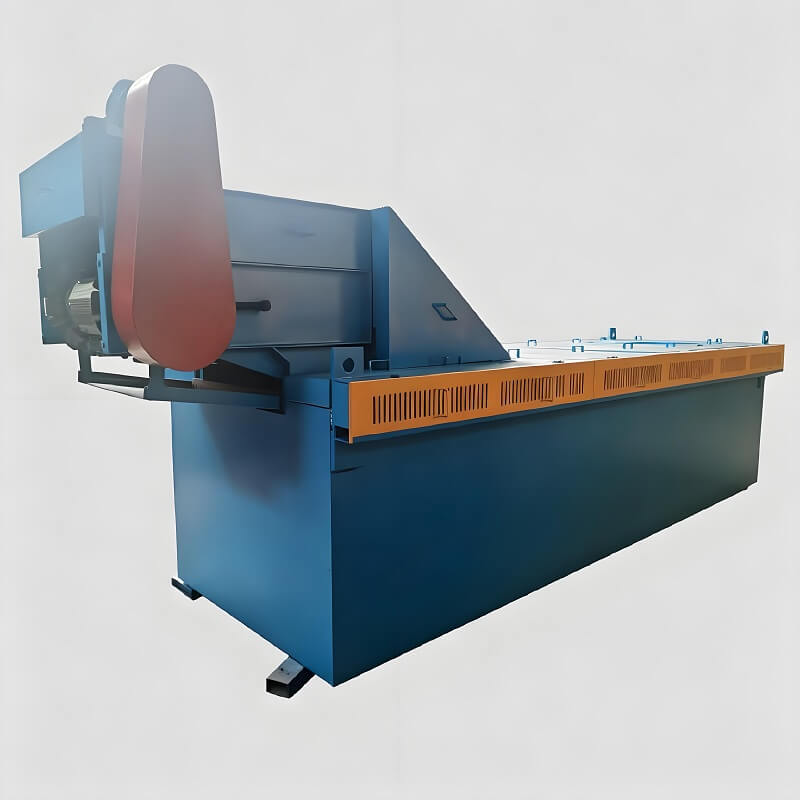

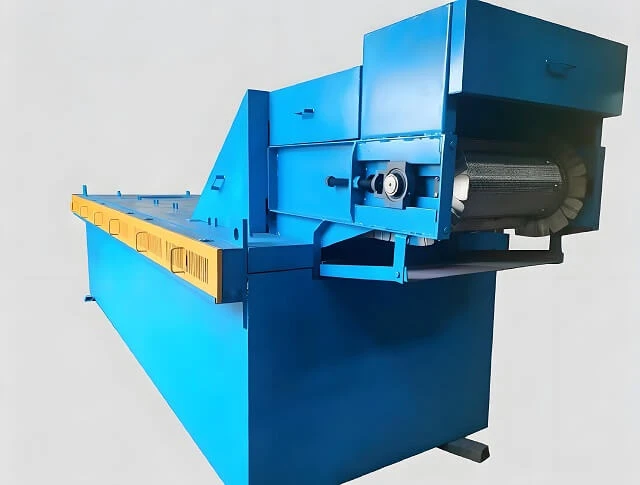

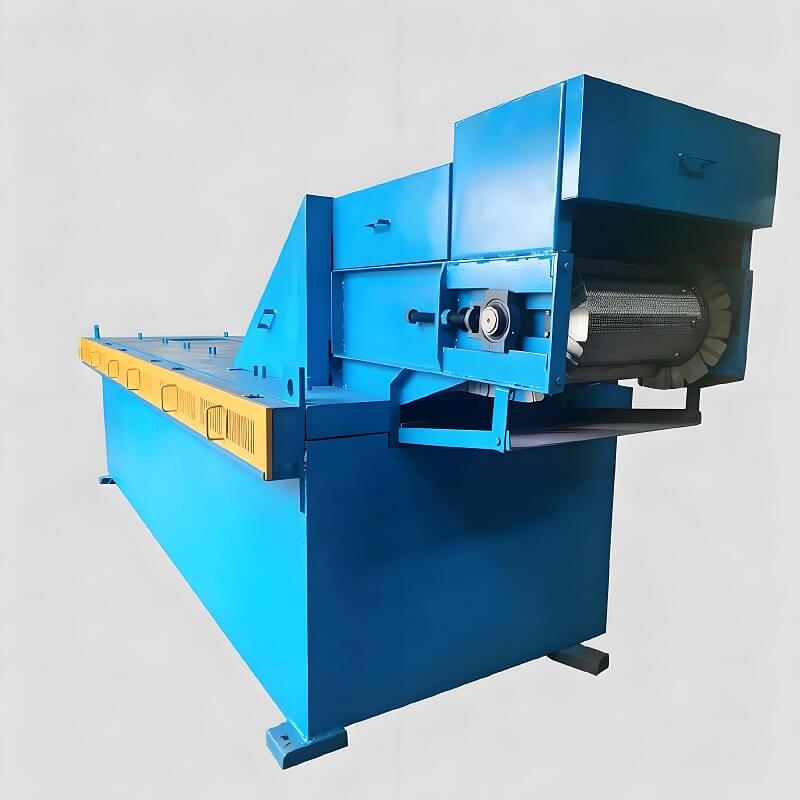

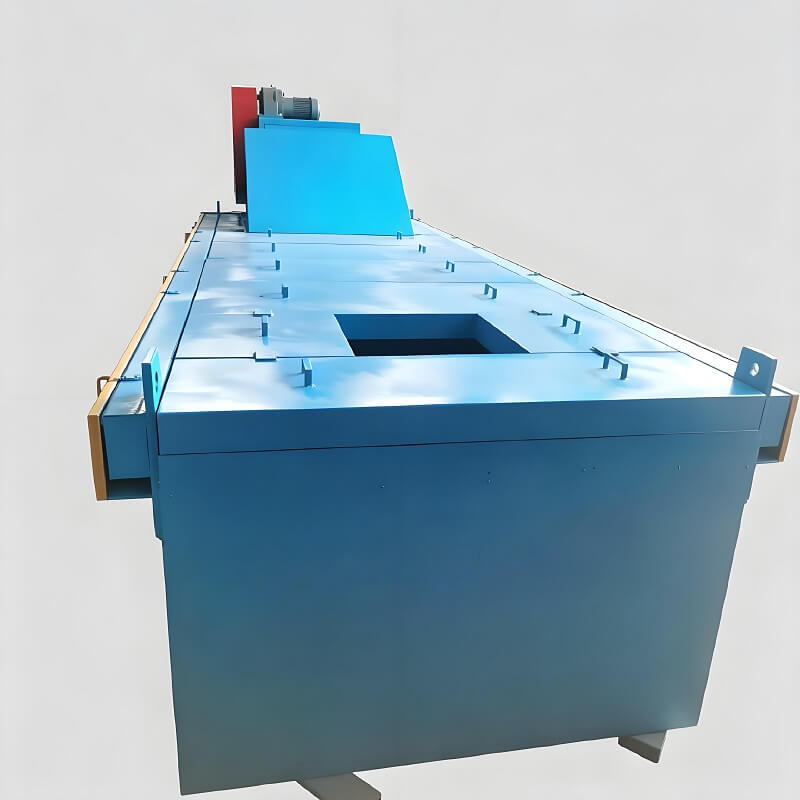

Continuous Mesh Belt Salt Bath Furnace Products Showcase
