Factory Customized Hot Air Recirculation Heat Treatment Furnace,Box Type Tempering Oven

China  Factory wholesale Price Small electric heat treat box type tempering furnace for sale - Rexin industrial furnaces manufacturer supplier

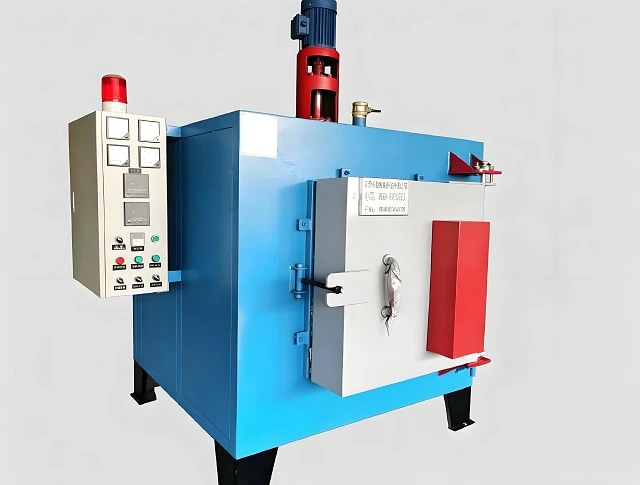

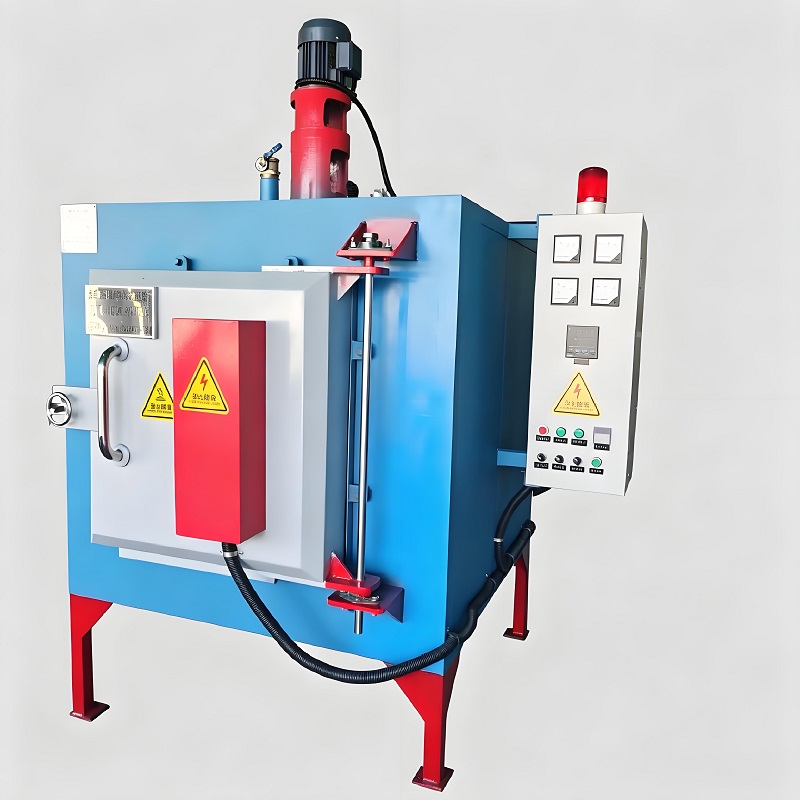

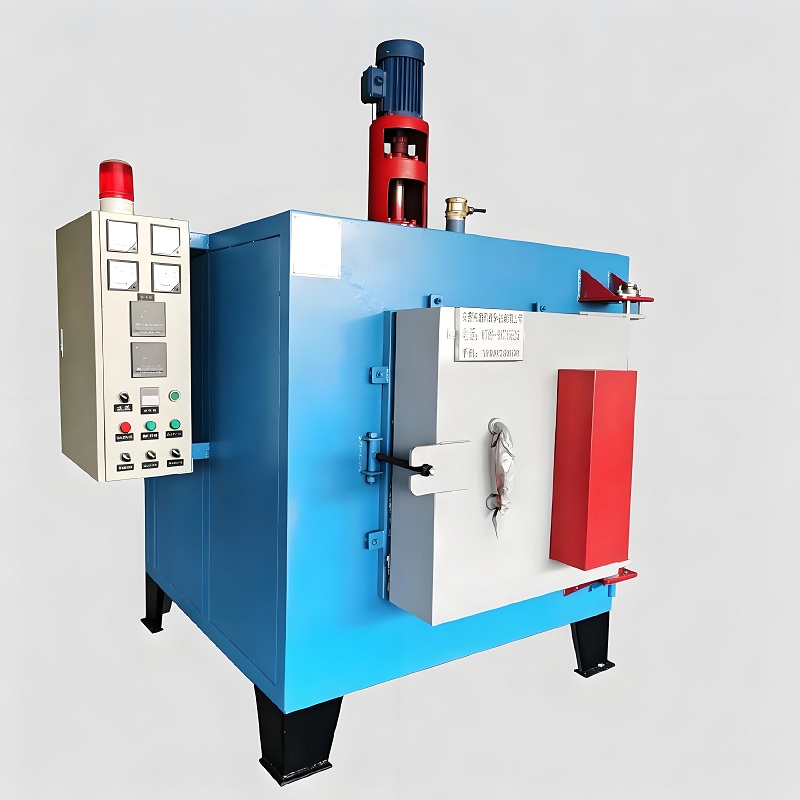

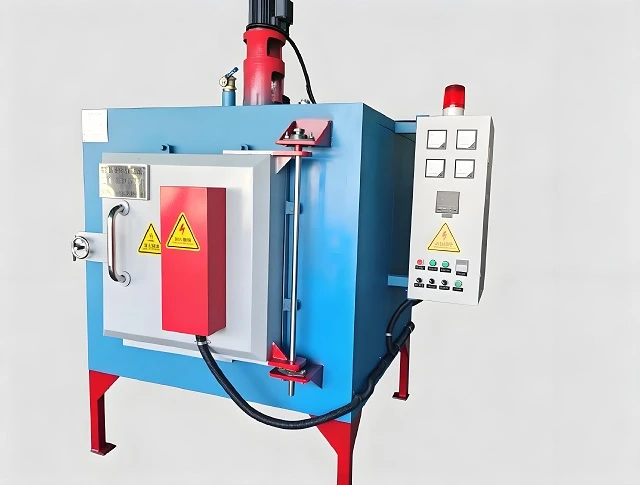

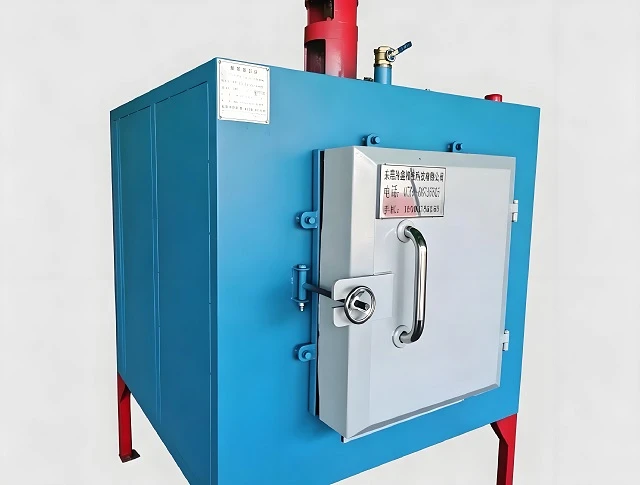

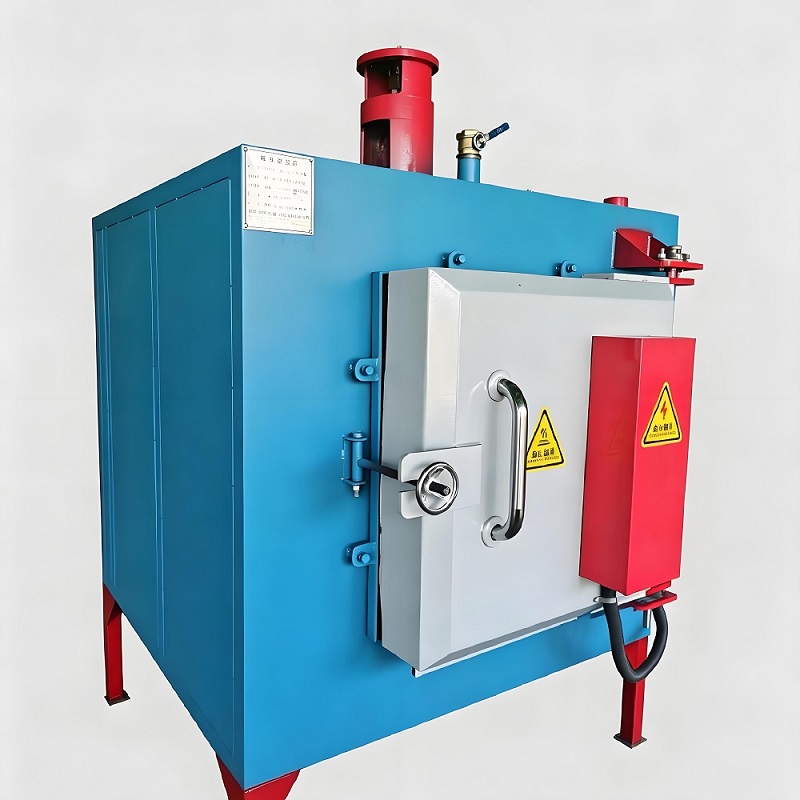

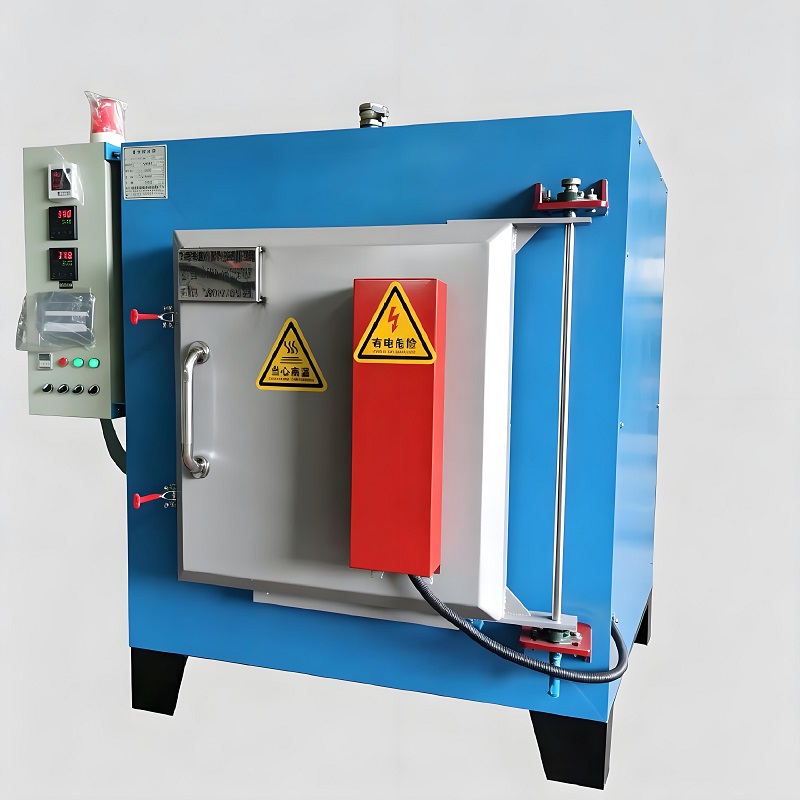

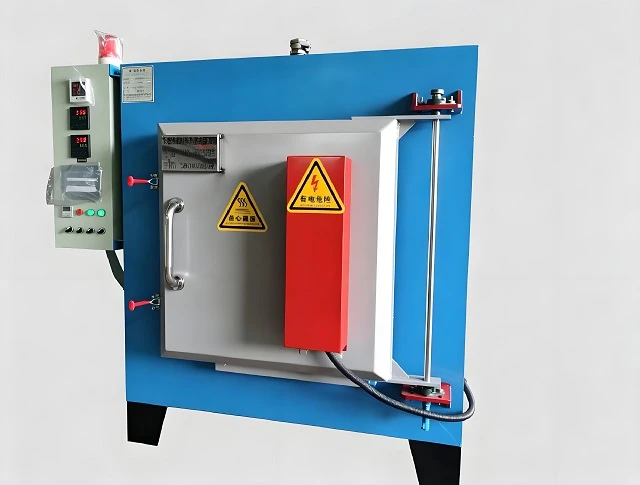

The box-type tempering furnace is a national standard type of periodic operation box-type furnace. It is equipped with a hot air internal circulation fan on the furnace top and is mainly used for tempering heat treatment of alloy steel products and various metal parts, as well as heat treatment of light alloys such as aluminum alloys and copper materials, including solution treatment, annealing, and aging.

Top-Mounted Fan Box Type Tempering Furnace Design Advantages:

1.Improved temperature uniformity ≤±5℃ throughout the working zone

2.Enhanced heat circulation for consistent tempering results

3.Top-mounted fan saves front space and simplifies operation

4.Suitable for batch processing of metal parts requiring precise temperature control

1. The outer shell of the box-type tempering furnace is made of Q235 steel plate, and the inner lining is made of 3mm perforated stainless steel sheet. The furnace chamber is movable for easy maintenance and removal as a whole.

2. The temperature control system uses a power regulator, with other electrical components from Delixi Electric Appliances. It includes functions such as heat preservation timer and over-temperature alarm. The temperature control system uses a touch screen to effectively prevent over-temperature and differential temperature phenomena, ensuring more uniform temperature throughout the furnace chamber. Six temperature probes are controlled, and the ammeter is digitally displayed for easy and clear readings.

3. The furnace door is a left-right swing-opening type, with a tight fit between the door and the furnace body surface to ensure uniform air circulation within the chamber.

4. A powerful air-cooled centrifugal fan is installed to further uniform the temperature within the chamber. The fan has an extended shaft, and the blades and shaft are made of 304S material. The blade thickness is 4mm, and the blade diameter is 550mm. 5. The heating element device uses spiral heating wires arranged in layers, which are easy to disassemble and facilitate daily maintenance during use. The heating wires are placed at the top, bottom, left, right and inside the furnace door to ensure uniform temperature inside the furnace.
