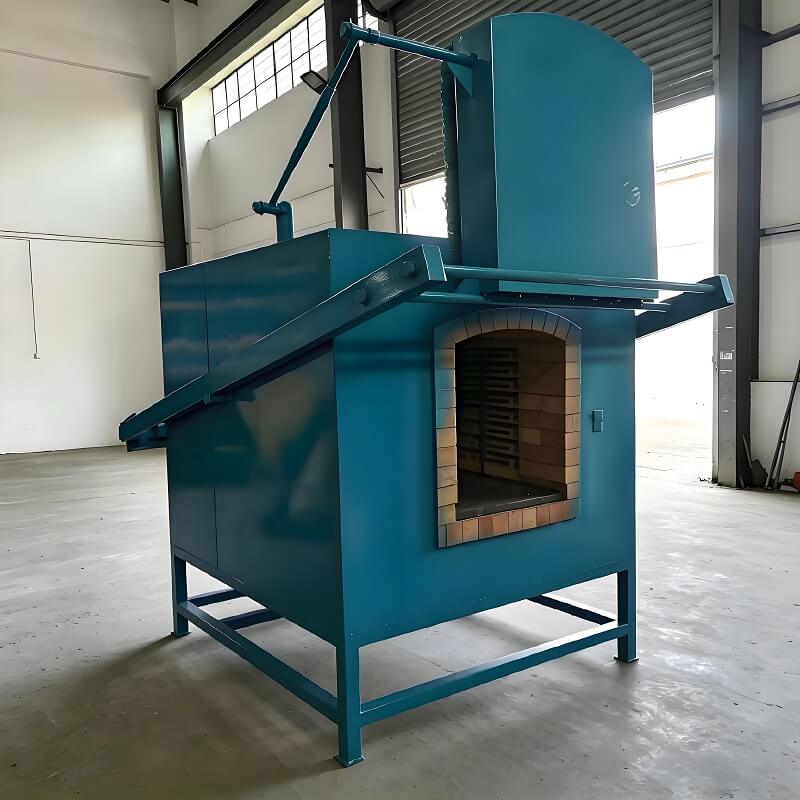

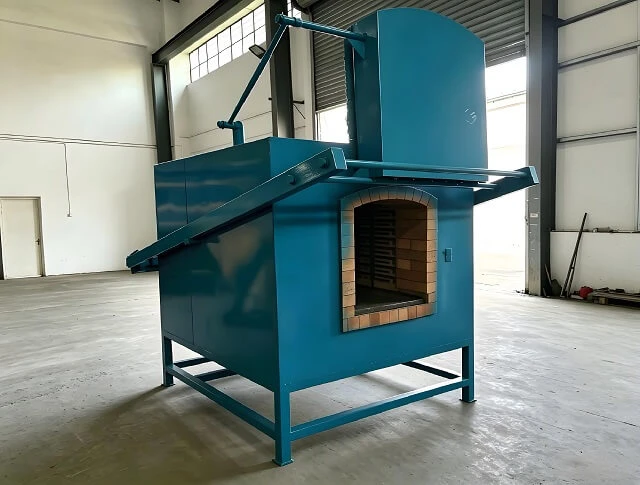

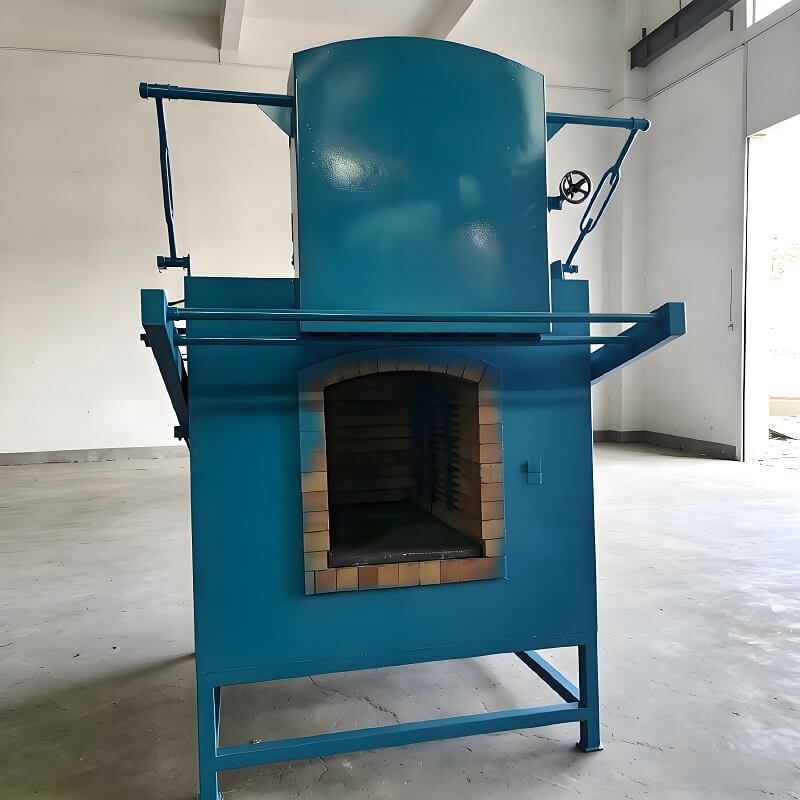

Factory Direct Energy Saving Electric Resistance Box Type Quenching Furnace

This energy-saving resistance quenching furnace is optimized for factories with long-time continuous heat treatment and high electricity cost pressure. The furnace wall adopts multi-layer composite high-temperature insulation cotton + refractory fiber board, greatly reducing heat conduction loss outward. Matched with low-resistance high-efficiency alloy heating rods, the overall energy consumption is cut by nearly 30% compared with ordinary standard box furnaces.

We supply this energy-saving model directly from factory without middleman markup, ideal for hardware, mold and fastener manufacturers running 24h quenching production lines to lower long-term operation costs.

Multi-layer insulation structure locks heat inside the furnace cavity, avoid heat escaping to outside environment. High-efficiency alloy heating rods convert electric energy into radiant heat with high efficiency, reduce redundant power waste. During long-time continuous heating, the stable heat preservation environment cuts repeated temperature rise power consumption, realizing long-term energy saving.

1. Side-Open Box Quenching Furnace Front door loading & unloading, external quenching tank. Suitable for small-batch molds and single parts with low cost.

2. Bottom Drop Rapid Box Quenching Furnace The furnace bottom automatically descends and submerges into the quenching tank. Transfer time ≤30 seconds to avoid workpiece temperature drop and decarburization. Designed for precision alloy steel and aerospace components.

3. Trolley-Type Box Quenching Furnace Equipped with automatic loading/unloading trolley, specially for heavy-tonnage forgings, flanges and shaft parts.

4. Controlled Atmosphere Box Quenching Furnace Filled with nitrogen or methanol cracking gas for oxidation-free bright quenching. Ideal for automotive fasteners and gears.

5. Vacuum Box Quenching Furnace Sealed vacuum environment realizes zero oxidation and ultra-smooth surface finish. Applied to high-end molds and aerospace precision components

• Multi-Layer Thickened Composite Thermal Insulation 300mm thick high-purity refractory fiber composite wall, minimal external furnace shell temperature, greatly reduce heat dissipation loss.

• High Efficiency Low-Loss Alloy Heating Elements Optimized FeCrAl heating wire layout, higher heat conversion rate, less invalid power consumption.

• 30% Power Consumption Reduction For Continuous Production For 24-hour uninterrupted quenching lines, this furnace can save a large amount of monthly electricity expense for customers.

• Factory Direct Low Cost Supply No intermediate distributors, complete production in our own workshop, cost-effective for mass purchase orders.

1. Furnace Body: Thick steel plate & section steel welded shell, anti-rust coating

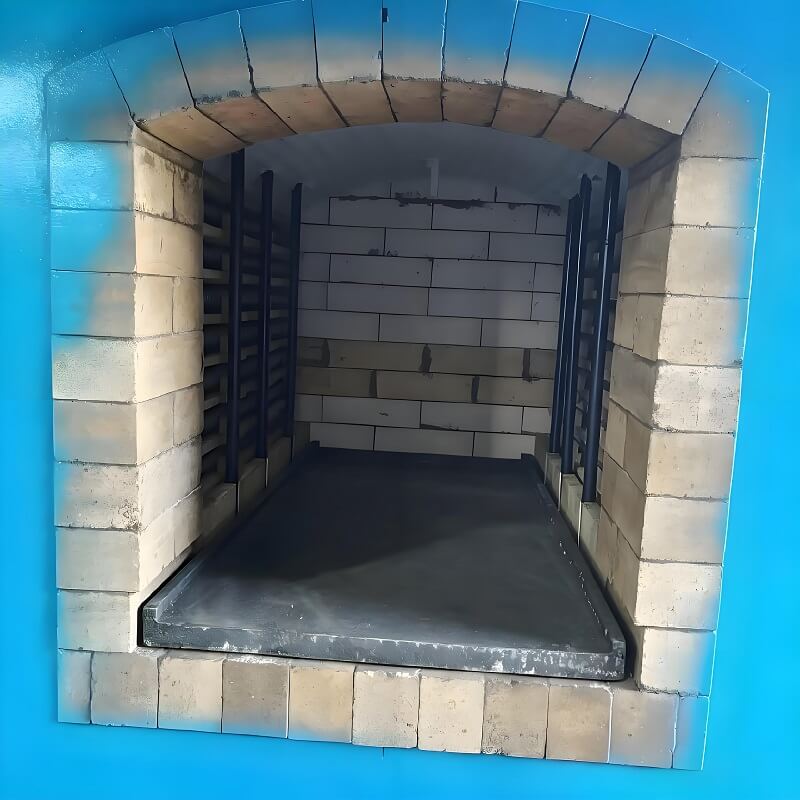

2. Insulation Lining: High-temperature resistant ceramic fiber module, light weight & shock resistance

3. Heating Element: OCr27Al7Mo2 high-resistance alloy strip, long service life

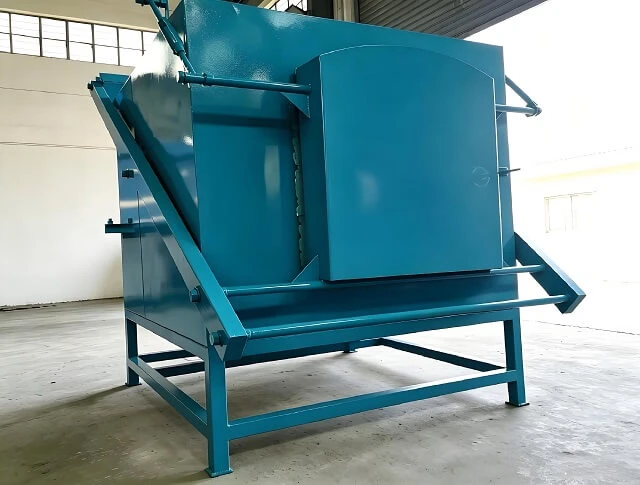

4. Furnace Door: Electric lifting / swing door with double-layer sealing to avoid heat leakage

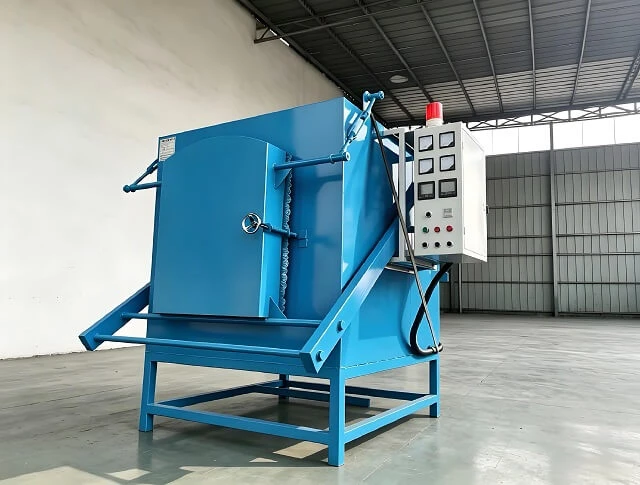

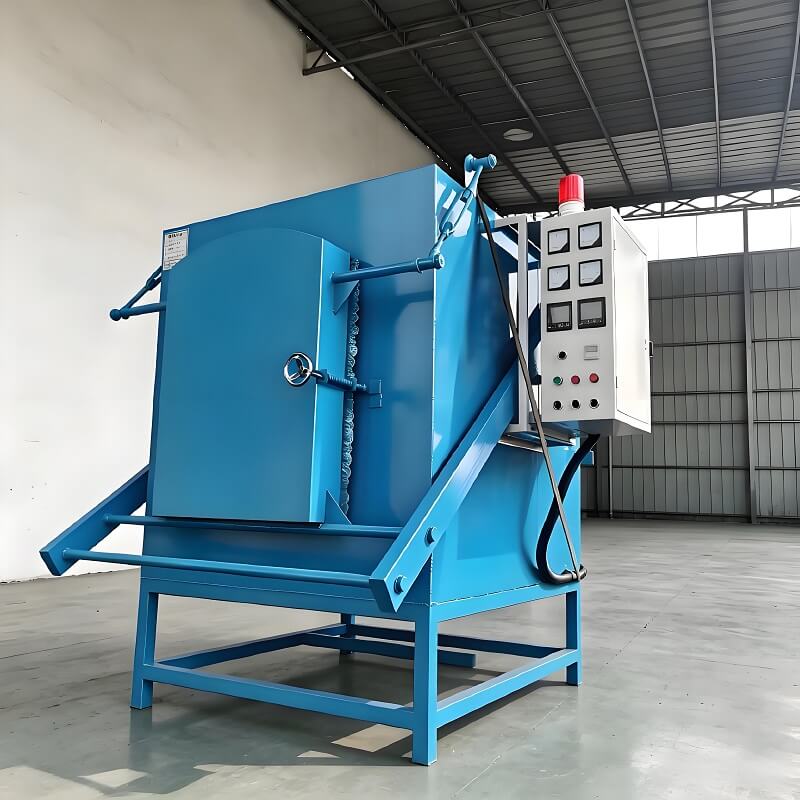

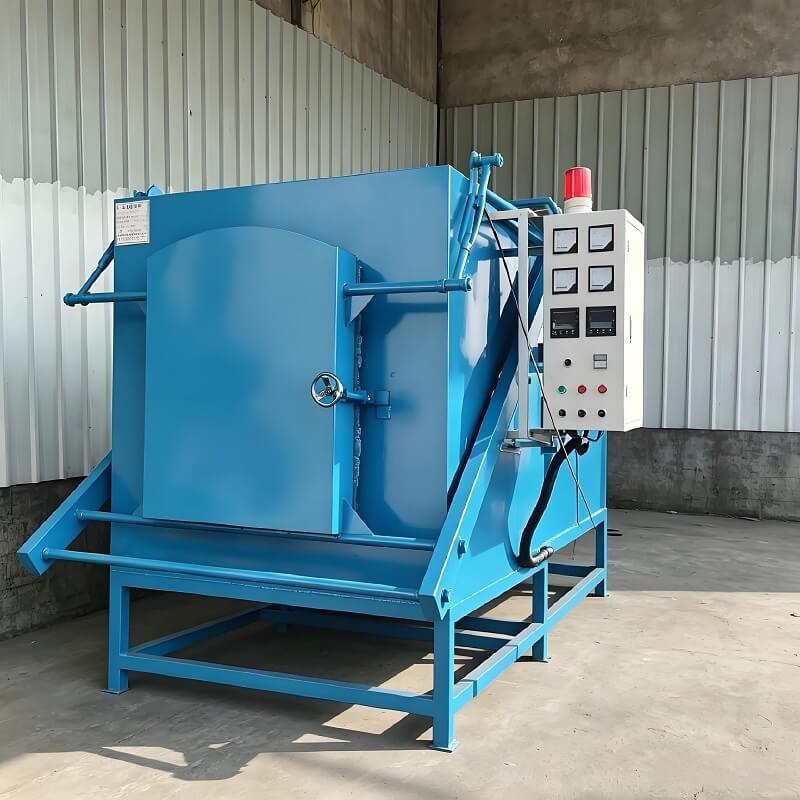

5. Control Cabinet: PLC + PID intelligent temperature controller, S-type thermocouple

6. Quenching System: Separate oil/water quenching tank with circulation cooling device

7. Atmosphere System (Optional): Methanol cracking, nitrogen input, carbon potential precise control

8. Vacuum System (Optional): Vacuum pump unit for bright vacuum quenching

• Furnace Wall Insulation: 300mm multi-layer refractory fiber composite

• Heating Element: High efficiency low-loss FeCrAl alloy heating rod

• Energy Saving Rate: Up to 30% vs conventional box quenching furnace

• Shell Surface Temp: ≤60℃ under full load holding

• Supply Mode: Direct factory supply, bulk order discount

• 24h continuous quenching hardware factory production line

• Fastener mass production heat treatment workshop

• Mold steel long-cycle hardening processing plant

• Factory reconstruction project for energy consumption reduction upgrade

Q1: How much electricity cost can I save every month with this energy-saving furnace?

A: Based on 24h daily operation, the monthly power consumption reduces by nearly 30%, the actual saving amount depends on furnace capacity and local electricity price.

Q2: Does thick insulation affect furnace heating speed?

A: We optimize heating power matching for thick insulation, the heating up speed is consistent with standard furnaces without waiting longer.
